P8 outdoor full color led display with SMD3535 is a classical product choosed for advertising display, with high resolution,wide view angle,good uniformity and competitive price,it is a good cost performance product for permanent install or rental use
1.SMD led encapsulation confirm wide view angle up to 140 vertical and horizontal

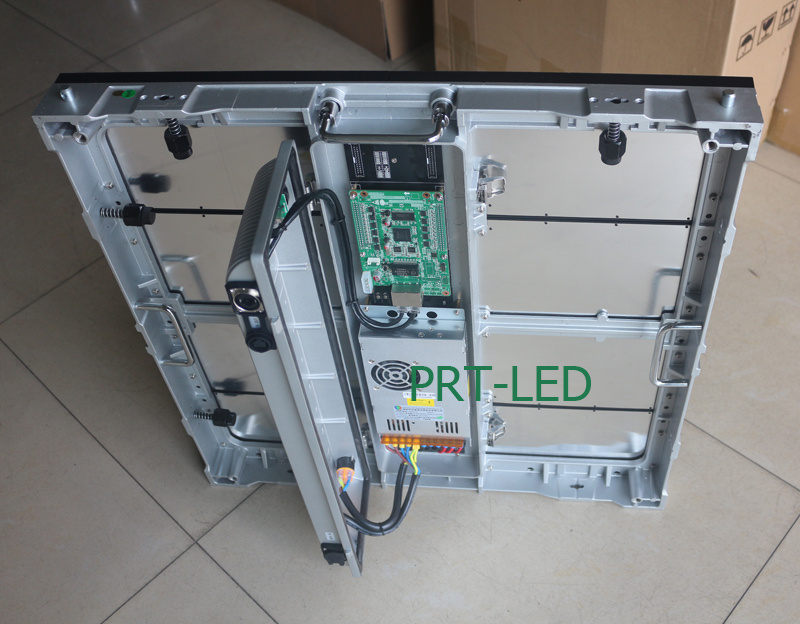

2.Slim Aluminum cabinet and small size ensure light weight, only 12kgs each panel
3.Good waterproof IP65 for front and IP54 for rear
4. Rental cabinet design with fast locks and aviation plugs,easy to install and dismantle
5.Brightness up to 6000nits,and can be adjusted automatically according to different surrondings,
6.Can be fixed on the wall, on the street, or hung on truss for rental use, to meet different request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.
| P8 Outdoor full Color LED Screen Specification |
| Pixel pitch | 8mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 (nation star encapsulated) |
| Size of module | 320mm x 160mm |
| Resolution of module | 40x20 |
| Size of cabinet | 640mm x 640mm x 65mm |
| Resolution of cabinet | 80x80 |
| Material of Cabinet | Die-casting |
| Weight of Cabinet | <15KGS |
| Brightness | >6000cd/ |
| Density | 15625dots/ |
| Best viewing angle | 140 /140 |
| Best viewing distance | 8-100M |
| Maximum power consumption | <1000W/ |
| Average power consumption | <300W/ |
| Driving method | 1/5 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1800Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
