P3 full color led wall for indoor permanent installation with iron cabinet, or rental with die-casting aluminum cabients,stability and long life span,high definition,high contrast and good uniformity
Product Features:
1. SMD2121 black leds ensure the wide view angle,and high contrast, good performance
2. Stell Iron keep strong configuration,good stability,pulling resistance,shockproof, automatic heat dissipation, prolong the lifespan to more than 10 years
3. Quick and accurate installation location type, suitable for many different installation environment
4.With fast locks and aviation plugs,easy to install and dismantle,save much time and labour cost
5.Seamless splicing,good uniformity,good performance
6.Large scale production, mature processing technology confirm the good and stability quality
7.Accept customized to meet different request

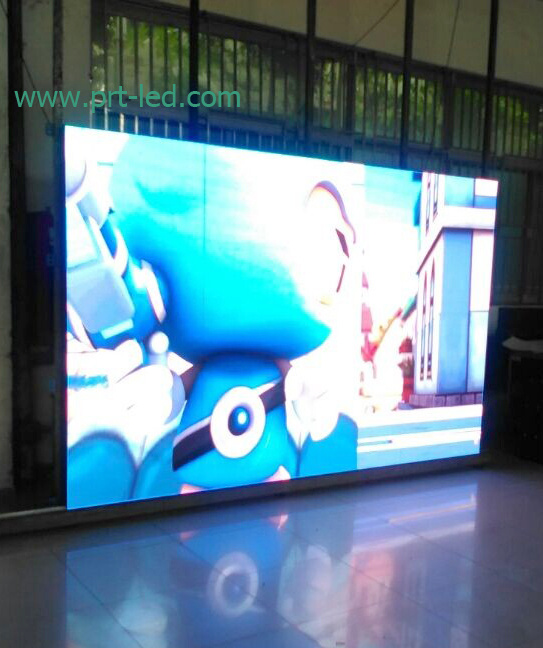

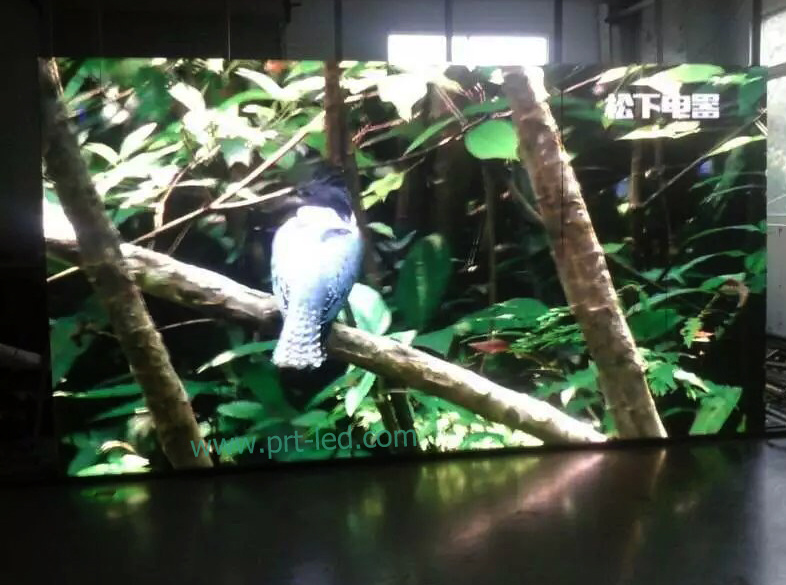

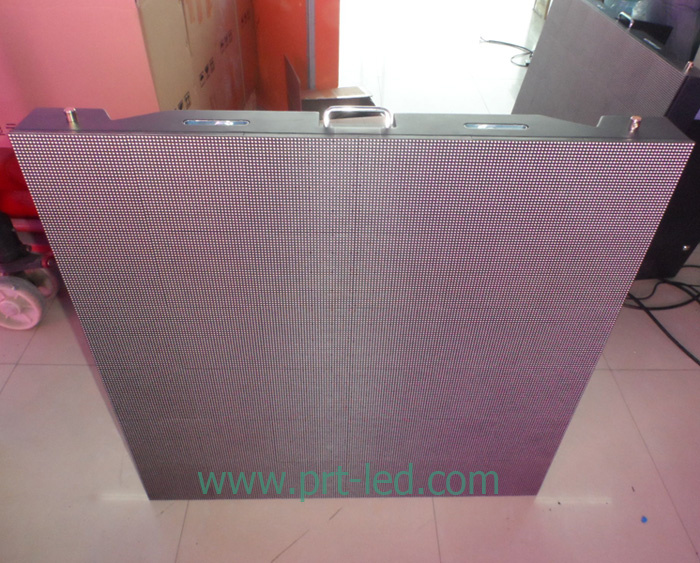

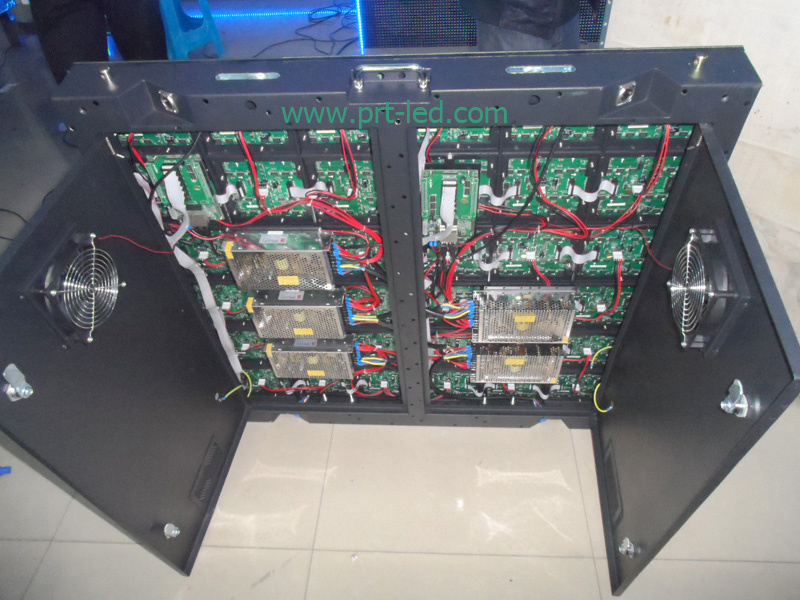

Please see more pictures for your reference
P3 SMD2121 Indoor full Color LED Screen Specification |
Pixel pitch | 3mm |
Pixel Configuration | 1R1G1B |
LED component | SMD2121 black |
Size of module | 192mm x 192mm |
Resolution of module | 64x64 |
Size of cabinet | 576mm x 576mm or 768x768mm |
Resolution of cabinet | 192x192 |
Material of Cabinet | Steel Iron or Aluminum |
Weight of Cabinet | 15KGS/25kgs |
Brightness | >1200cd/sq.m |
Density | 111111dots/sq.m |
Best viewing angle | 140 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 3-50M |
Maximum power consumption | 1200W/sq.m |
Average power consumption | 640W/sq.m |
Driving method | 1/16 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >3000Hz |
IP grade | IP31 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
