P10 outdoor with DIP346 lamps is a classical product choosed for outdoor advertising display, because of its good display performance and competitive price, with high brightness, long life span, CE,FCC,RoHS certificates
Product Features:
1. DIP led encapsulation confirm the high brightness even under sunlight, anti-corrosion, antifogging
2.Special board design make the module energy saving, and long life span
3. With soft mask and angle protection confirm the sportsmen avoid to be injured.
4.Adjustable back supporting bracket for different view angle ensure good display effect and stable stand
5. CE, FCC,ROHS Certificates, 3 years warranty,and provide free training
6. Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed time automatically

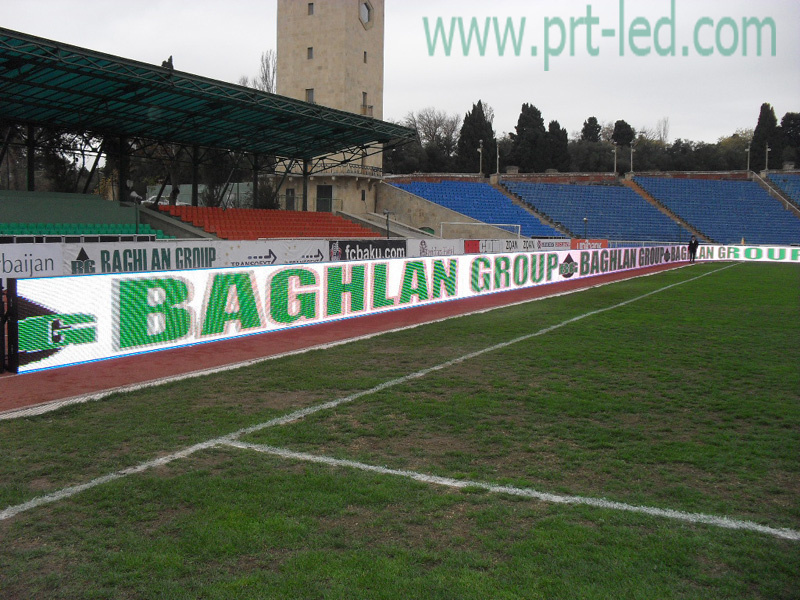

7. Widely used in football, baketball, baseball ground to show the score, the live broadcasting of match and advertisement
| P10 DIP Outdoor full Color LED Screen Specification for one screen |
| Pixel pitch | 10mm |
| Screen area | 65.13sq.m |
| Resolution of one screen | 6784 x 96dots |
| Size of module | 160mm x 160mm |
| Resolution of module | 16x16 |
| Size of cabinet | 1280mm x 960mm x 150mm |
| Resolution of cabinet | 128x96 |
| Number of Cabinets | 53 pcs |
| Weight of Cabinet | <80KGS |
| Brightness | >7500cd/sq.m |
| Density | 10000dots/sq.m |
| Best viewing angle | 110 /50 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 8-150M |
| Maximum power consumption | <800W/sq.m |
| Driving method | 1/4 scan |
| Control method | Synchronization |
| Gray scale | 16 bits |
| Colors | 16777216 |
| Color temperature | 6500k |
| Working voltage | AC220V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| MTBF | >10,000 hours |
| Frame frequence | ≥60Hz |
| Refresh frequence | >1800Hz |
| IP grade(Front/Back) | IP65/IP54 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Systems operating platform | WINDOWS(WIN95,WIN2000,WINXP,WIN7/8), and interfaces for secondary development |
