Full color led sign /led video wall with high definition for indoor rental, with Die-casting cabinet 480x480mm, and black body leds confirm high contrast, wide view angle
Product Features:
1.Die-cast Aluminum material,keep strong configuration and good heat dissipation
2. Small panel size of 480×480mm and with thickness of 60mm only
3. Packed with flight case,easy to move and transportation
4. With fast locks,easy to install and dismantle,better for rental
5. Seamless splicing,High contrast 5000:1, good performance
6.This cabinet size also suit to Indoor led display P3,P3.75, P4,P4.8

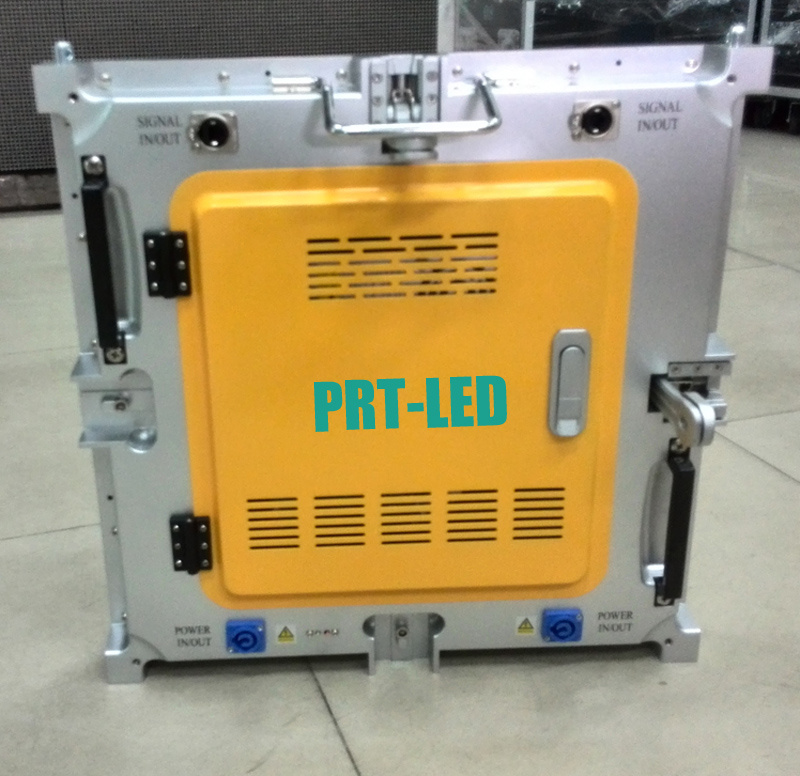

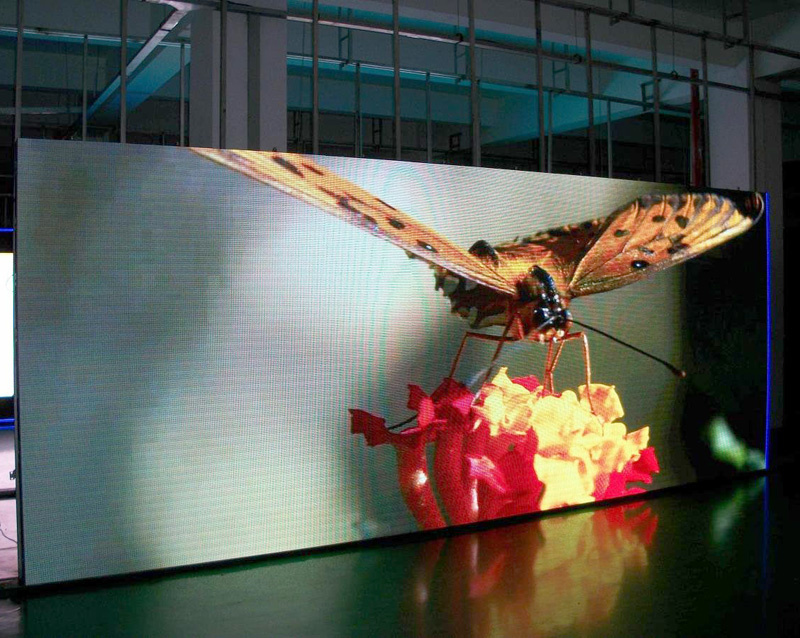

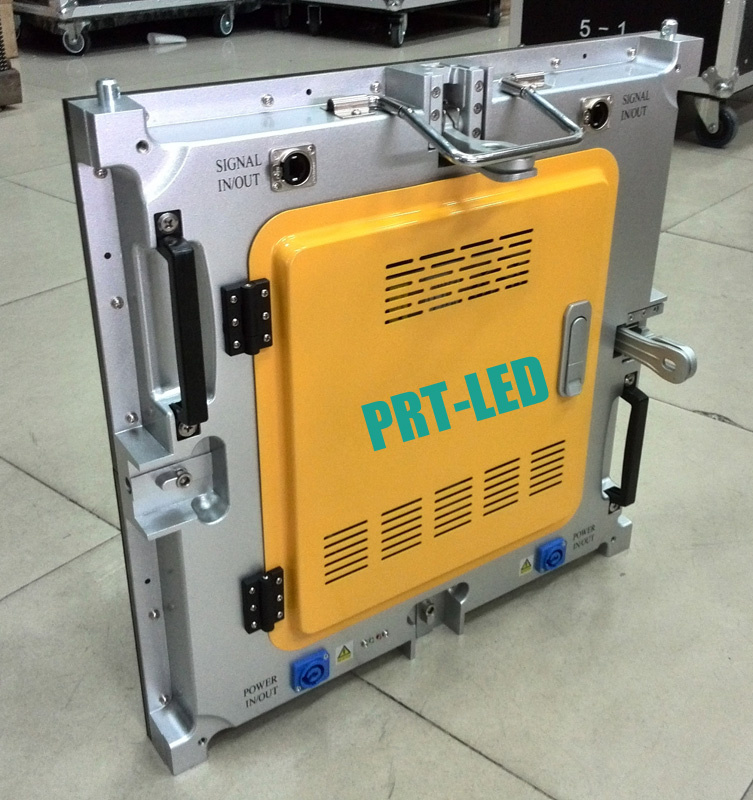

Please see more pictures for your reference
Indoor Rental full Color LED Screen Specification |
Pixel pitch | 3mm | 3.75mm | 4mm | 4.8mm | 5mm |
Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
LED component | SMD2121 black | SMD2121 black | SMD2121 black | SMD3528 | SMD3528 |
Size of module | 240mm x 240mm |
Resolution of module(Dots) | 80 x 80 | 64 x 64 | 60 x 60 | 50 x 50 | 48 x 48 |
Size of cabinet | 480mm x 480mm x 60mm |
Resolution of cabinet(Dots) | 160 x 160 | 128 x 128 | 120 x 120 | 100 x 100 | 96x 96 |
Material of Cabinet | Die-casting Aluminum |
Weight of Cabinet | 10.5KGS | 10.5KGS | 10.5KGS | 10KGS | 10KGS |
Brightness | >1500cd/ | >1500cd/ | >1500cd/ | >1500cd/ | >1500cd/ |
Density | 111111dots/ | 71111dots/ | 62500dots/ | 43402dots/ | 40000dots/ |
Best viewing angle | 140 /140 | 140 /140 | 140 /140 | 140 /140 | 140 /140 |
Best viewing distance | 3-50M | 3-50M | 3-50M | 4-60M | 4-60M |
Maximum power consumption | 1200W/ | 1200W/ | 1200W/ | 1000W/ | 1000W/ |
Average power consumption | 640W/ | 640W/ | 640W/ | 500W/ | 500W/ |
Driving method | 1/16 scan | 1/16 scan | 1/15 scan | 1/10 scan | 1/16 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >1920Hz |
IP grade | IP31 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
