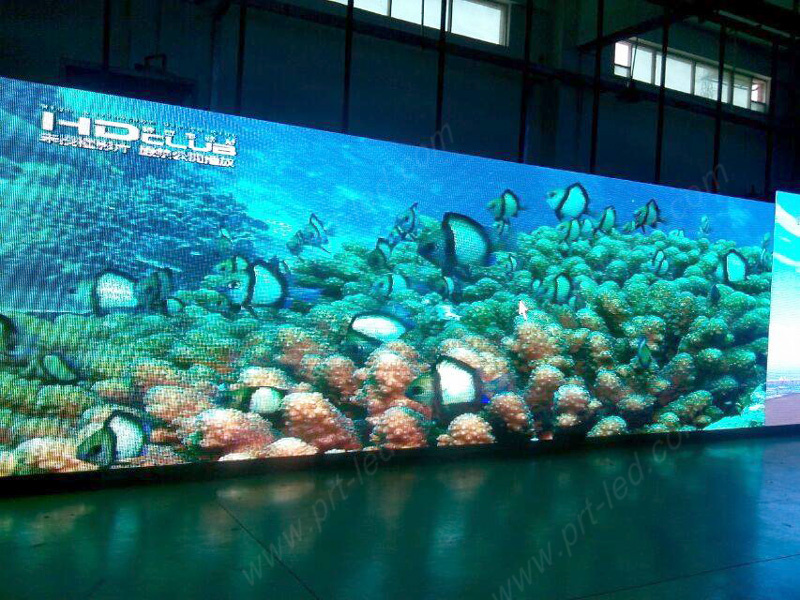

10 SMD Full Color LED Display/outdoor led video wall with high brightness and good uniformity
Product Features:
1. SMD led encapsulation confirm wide view angle over 140 degree for horizontal and vertical
2.Good waterproof IP65, long life span>100000hours
3. High pixel density, high resolution, Long view distance to 100NM away
4. Cabinet with fast locks and aviation plugs, easy and quick to assemble without tools in short time
5. Low power consumption, low noise created, good energy saving
6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.
7. Widely used for commercial display, advertising boar, stage background, mobile message sign. Traffic sign board, sports perimeter display etc.
| P10 Outdoor full Color LED Screen Specification |
| Pixel pitch | 10mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 |
| Size of module | 320mm x 160mm |
| Resolution of module | 32x16 |
| Size of cabinet | 1280mmx 960mm /960mm x x 960mm |
| Resolution of cabinet | 128x96/ 96x 96 |
| Material of Cabinet | Iron with back doors |
| Weight of Cabinet | <55KGS |
| Brightness | >6000cd/ |
| Density | 10000dots/ |
| Best viewing angle | 140 /140 |
| Best viewing distance | 10-100M |
| Maximum power consumption | <800W/ |
| Average power consumption | <300W/ |
| Driving method | 1/4 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1800Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
