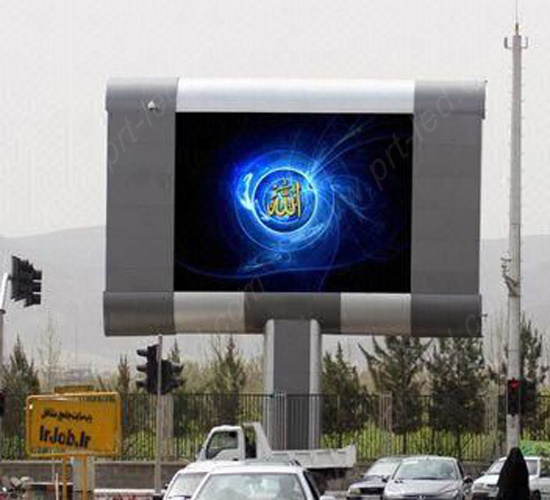

P10 outdoor full color led display is a classical product choosed for outdoor advertising display, with high brightness,high resolution and cheap cost
1. DIP led encapsulation confirm the high brightness even under sunlight, anti-corrosion, antifogging, and good waterproof IP65, long life span
2. High pixel density, Long distance, High definition, Good uniformity
3. Brightness can be adjusted automatically according to different surrondings,
Can be set to open and close the screen on fixed automatically
4. Can be fixed on the wall, on the street, on top of building, or be hung on truss for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.
5. Widely used for commercial led display, stage led display, mobile led display. Traffic led display, rental led display, sports led display etc.
| P10 Outdoor full Color LED Screen Specification |
| Pixel pitch | 10mm |
| Pixel Configuration | 1R1G1B |
| LED component | DIP346 |
| Size of module | 160mm x 160mm |
| Resolution of module | 16x16 |
| Size of cabinet | 960mmx 960mm |
| Resolution of cabinet | 96x96 |
| Material of Cabinet | Iron with back doors |
| Weight of Cabinet | <60KGS |
| Brightness | >8000cd/ |
| Density | 10000dots/ |
| Best viewing angle | 110 /50 |
| Best viewing distance | 10-150M |
| Maximum power consumption | <1000W/ |
| Average power consumption | <300W/ |
| Driving method | 1/4 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1800Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
