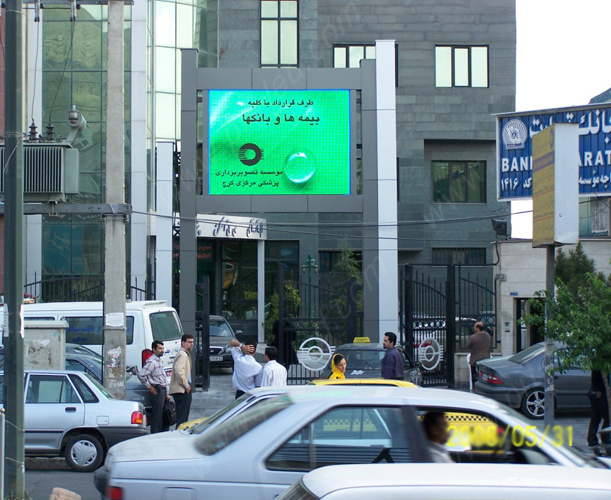

8.928 Full Color LED Display Outdoor, outdoor advertising led board
1. SMD led encapsulation confirm wide view angle and closed view distance, eyes friendly
2. Good waterproof IP65, long life span
3. High brightness up 4500nits, High definition, Good uniformity
4. With aluminum cabinet, light weight,easy and quick to assemble
5. Cabinet size of 500x500mm or 500x1000mm, suit for many different screen size and can be with abnormal shape with angle adjuster
6. Low power consumption, low noise created, low transportation costs, and low installation costs.
7. Widely used for stage, concert, show, banquet, wedding, rental display, advertising led display,led video wall
P8.928 full Color LED Screen/Curtain Specification |
Pixel pitch | 8.928mm |
Pixel Configuration | 1R1G1B |
LED component | SMD3535 |
Size of module | 250mm*250mm |
Resolution of module | 28x28 |
Size of cabinet | 500mm x 500mm/500mm x1000mm |
Resolution of cabinet | 56 x 56/56x112 |
Material of Cabinet | Aluminum |
Weight of Cabinet | 7.5kgs / 13KGS |
Brightness | >4500cd/ |
Density | 12546dots/ |
Best viewing angle | 140 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 8-100M |
Maximum power consumption | 700W/ |
Average power consumption | 350W/ |
Driving method | 1/7 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >1920Hz |
IP grade | IP65 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
