HD Outdoor P3.91 New design rental LED Wall panel size of 500x500mm, made with SMD2424 leds, high resolution,high contrast,good uniformity and high brightness, will be a new epoch for outdoor small pixel pitch products
Features:
1. Small pixel dots, high resolution, high definition, wide view angle and close view distance
2. Made with Die-casting Aluminum material cabients,strong structure and light weight

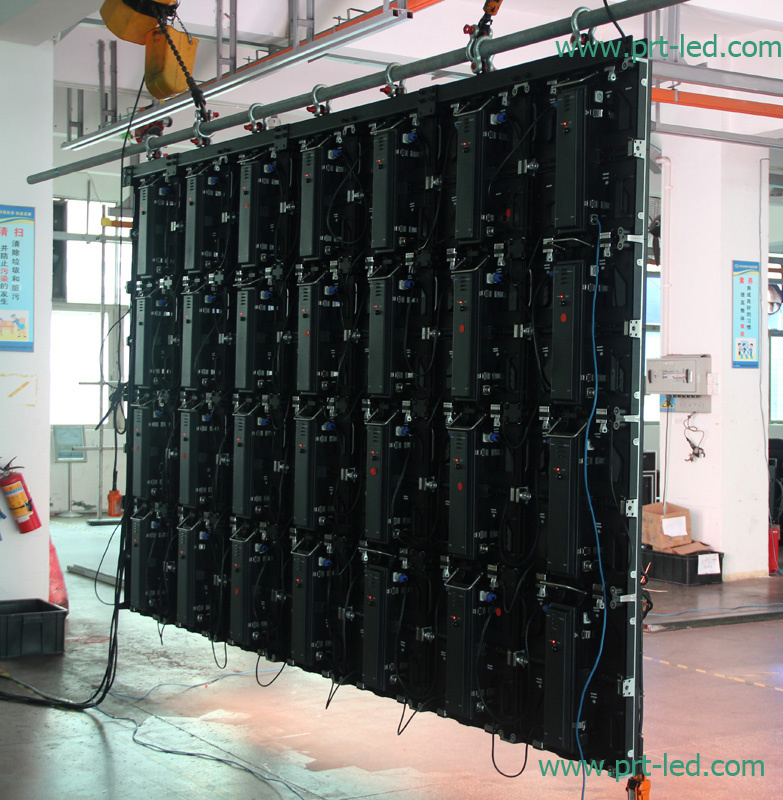

3. Rental design with fast locks and aviation plugs,easy and quick to install and dismantle
4. Unique muting and fan free design ,good environment protection
5. Beautiful out appearance,super thin thickness,seamless spliced,smooth and perfect performance
6. High brightness up to 5500nits,and good waterproof IP65
7. Widely used for banquet, conference,shows,exhibition etc.
The configuration design is available for outdoor P4.81, P3.91
| P3.91 SMD2424 Outdoor full Color LED Screen Specification |
| Pixel pitch | 3.91mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD2424 |
| Size of module | 250mm*250mm |
| Resolution of module | 64x64 |
| Size of cabinet | 500mm*500mm*95mm |
| Resolution of cabinet | 128x128 |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 10KGS |
| Brightness | >4500cd/ |
| Density | 65746dots/ |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 3-50M |
| Maximum power consumption | 1200W/ |
| Average power consumption | 640W/ |
| Driving method | 1/16 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing LED display screen and some related LED lighting, owned several new-automatic production lines and advanced test equipments to control quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS.
Our main products include full color LED display, Outdoor LED display, Indoor LED display, Rental LED screen, Stage LED curtain screen, Sport stadium LED screen, Mobile LED screen etc. Also supply LED professional stage light, LED decoration lights, LED panel light, based on some customer' s request.
Our subcompany named PRT International Trade Co., Ltd, who in charge of exporting business, members with rich exporting experience over ten years, guarantee the products to be shipped out smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
You are welcome! Waiting for you!
