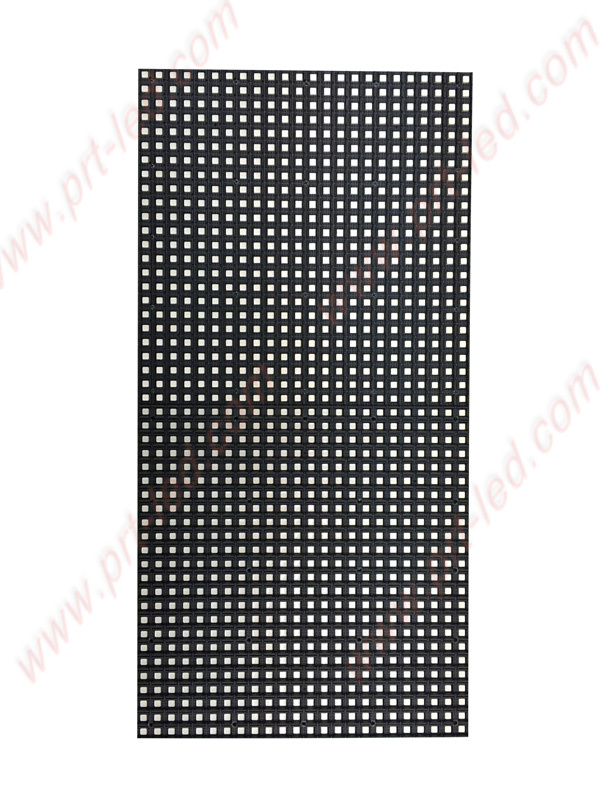

High Resolution P10 Full Color Outdoor LED Display (SMD 3535)
| Price: |
US $ 800/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
P10 SMD3535 outdoor full color led display screen Product Features:1.SMD led encapsulation confirm wide view angle and low power consumption
2. Good waterproof IP65,long life span
3. High resolution,high brightness,Long view distance,Good uniformity

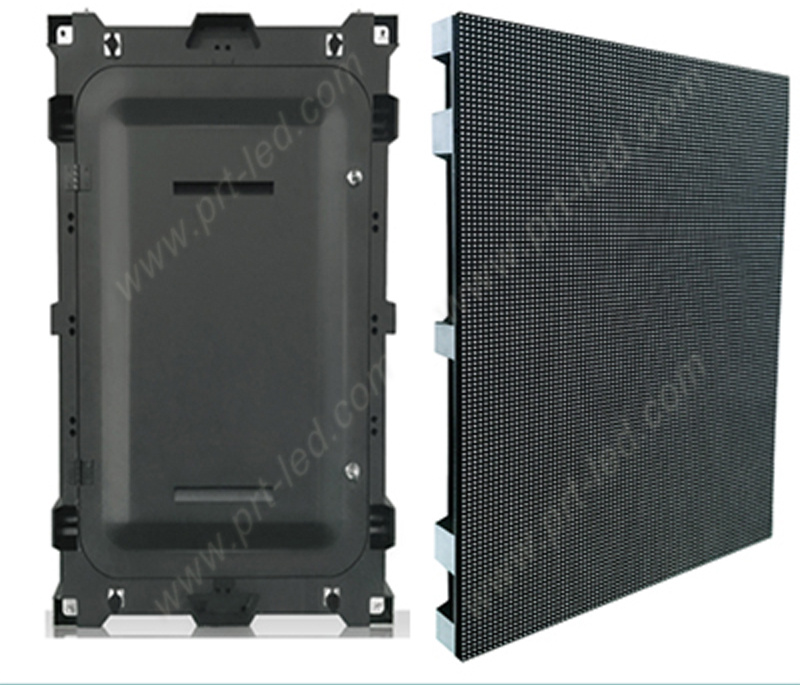

4. With Rental design Aluminum Cabinet,low lightweight,easy and quick to assemble without tools in short time,and can be fixed installation or hung for rental
5. Low noise created,good heat dissipation,low transportation costs
6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.
7. Widely used for commercial led display,advertising led display, stage led display,mobile led display. traffic led display,rental led display, sports led display etc.
| Outdoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 10.0 |
| Pixel Density | Dots/sq.m | 10000 |
| Pixel Configuration |
| SMD3535 |
| Cabinet Resolution | dots | 64×96 |
| Refresh Rate | Hz | ≥1800 |
| View Angle(H/V) | ° | 150/120 |
| Brightness | nits | ≥5000 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 1200/400 |
| Input Voltage(AC) | V | 110~220 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 640×960 |
| Cabinet Material |
| Die-casting Aluminum |
| Cabinet Weight | Kg | 20 |
| Module Size(W×H) | mm | 320×160 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/4 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
| Prod Model: |
P10-outdoor SMD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD3535 |
| Module Size: |
320X160mm |
| Moduel Resolution: |
32X16dots |
| Brightness: |
>=5500nits |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
350W / m² |
| Application: |
Advertising, Stage Performance, Rental |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing LED display screen and some related LED lighting, owned several new-automatic production lines and advanced test equipments to control quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS.
Our main products include full color LED display, Outdoor LED display, Indoor LED display, Rental LED screen, Stage LED curtain screen, Sport stadium LED screen, Mobile LED screen etc. Also supply LED professional stage light, LED decoration lights, LED panel light, based on some customer' s request.
Our subcompany named PRT International Trade Co., Ltd, who in charge of exporting business, members with rich exporting experience over ten years, guarantee the products to be shipped out smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
You are welcome! Waiting for you!
