High Brightness P6 Outdoor LED Display with Waterproof IP65
Price: |
US $ 1500/Square Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Square Meter |
Pay Type: |
L/C,T/T,Western Union |

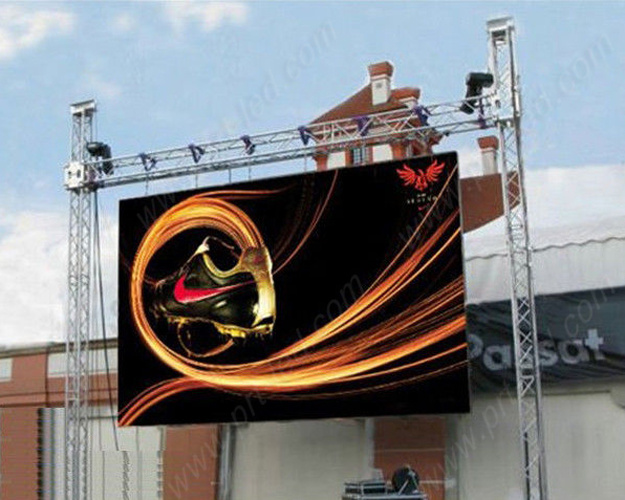

Full color P6 Outdoor LED Display for outdoor permanent install or rentalwith high brightness and good waterproof, high resolution and good performanceProduct features:
1.Waterproof IP65,good for outdoor rental,small size is available
2. SMD led encapsulation confirm wide view angle and slim board
3.High pixel density, Long view distance, High definition,High brightness,Good uniformity

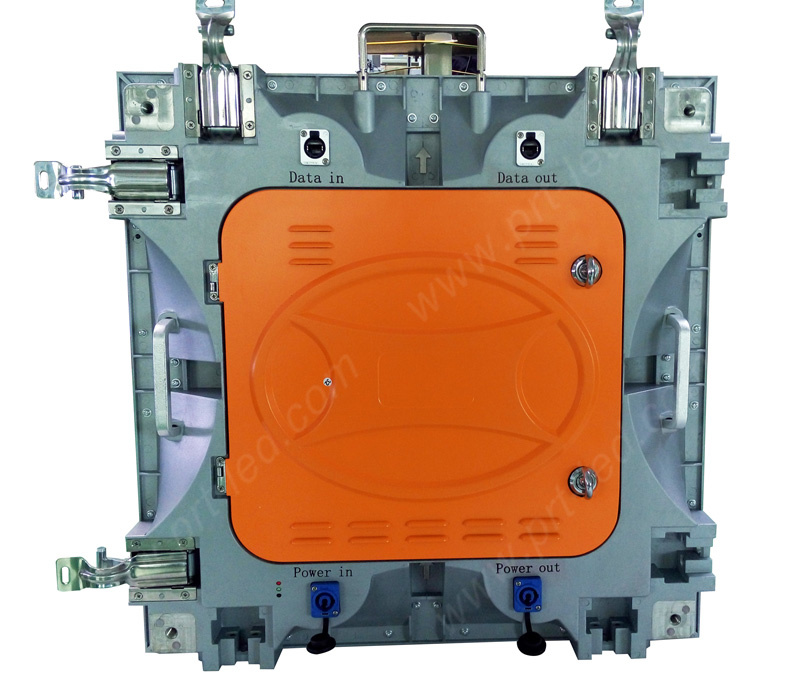

4.With Rental design Aluminum Cabinet,easy and quick to assemble without tools in short time
5.Die-casting cabinets confirm the strong configuration and lasting, super slim and light weight,
6.low power consumption, No fans,no noise created, Low transportation costs, and low installation costs.
7.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.

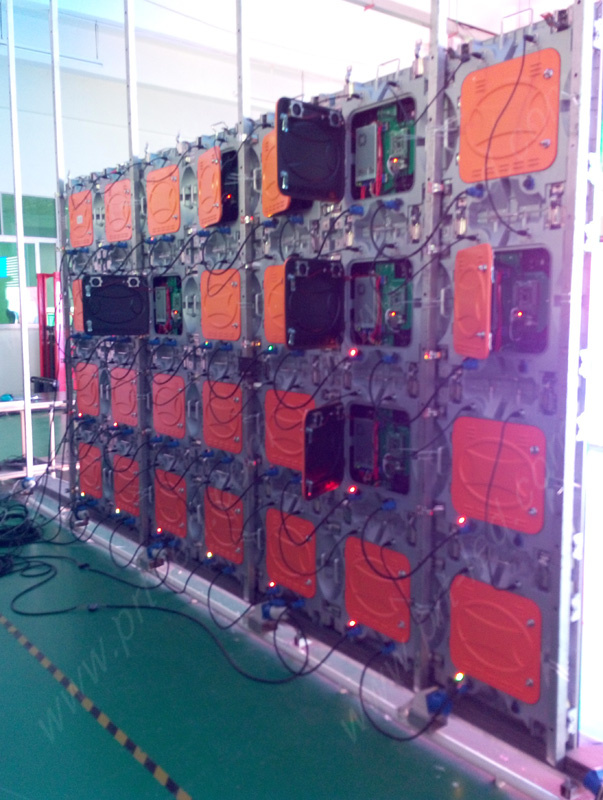

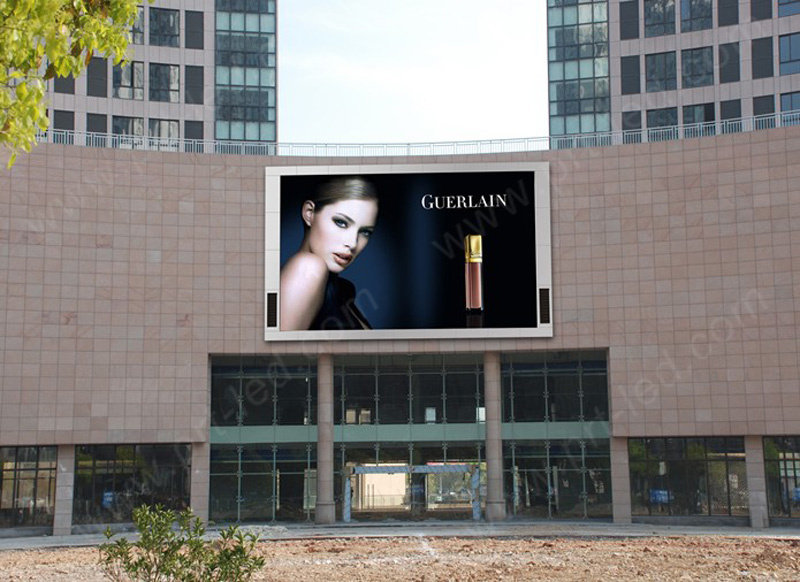

8.Widely used for commercial advertising,stage background screen,mobile led sign. traffic message board,sports stadium perimeter display etc.More pictures for reference: P6 Outdoor Full Color LED Display Main Parameters |
Visual Characteristics | Unit | Value |
Pixel Pitch | mm | 6.0 |
Pixel Density | Dots/sq.m | 27777 |
Pixel Configuration |
| SMD3535 |
Cabinet Resolution | dots | 96×96 |
Refresh Rate | Hz | ≥1200 |
View Angle(H/V) | ° | 150/120 |
Brightness | nits | ≥5500 |
Gray Scale | Bit | 16 |
IP Rating |
| 65 |
Power Consumption(Max/Avg) | W/sq.m | 650/300 |
Input Voltage(AC) | V | 110~240 |
Modular Characteristics |
Cabinet Size(W×H×D) | mm | 576×576 |
Cabinet Material |
| Die-cast Aluminum |
Cabinet Weight | Kg | 12 |
Module Size(W×H) | mm | 288×288 |
Environment |
Operation Temperature | ºC | -20~+50 |
Operating Humidity |
| 10%~90% |
Driving Mode |
| 1/8 Scan |
Control Distance | Cat 5E <100m,Single mode fiber<10Km |
Prod Model: |
P6-outdoor |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LED Encapsulation: |
SMD3535 |
Module Size: |
288X288mm |
Cabinet Size: |
576X576mm |
Protection Grade: |
IP65 |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Display Function: |
Video Display |
Average Power Consumption: |
300W / m² |
Scanning Mode: |
1/8 Scan |
Display Type: |
LED Video Display |
Certification: |
CCC |
Pixel Pitch: |
6mm |
Pixel Density: |
27777dots/Sq.M |
Application: |
Advertising, Stage Performance, Rental |
