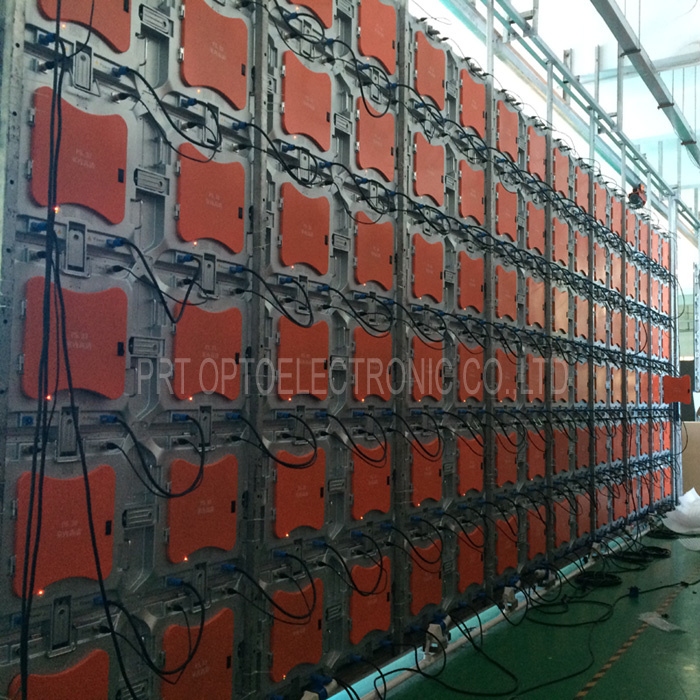

P5.33 full color led display for indoor rental with die-casting aluminum cabinets 576x576mm,with light weight,seamless spliced,perfect vision effect and low cost, better for indoor rental use
1. Combined Driving Board confirm super thin, light weight, only 10kgs per cabinet
2. SMD led encapsulation ensure good heat dissipation and low power consumption
3. High density, high definition and high refresh rate up to 3000Hz
4.Rental design cabinet with locks, easy and quickly to install and dismantle,save much time and labour cost
5. Die-casting Aluminum material keep the configuration strong and bearable, long use life and better for rental use
6. Seamless spliced between cabinets, flat surface, good performance
7. Wide view angle and shot view distance, no stroble,friendly to our eyes
8. CE, FCC, RoHs standard confirm the high quality and stability
9. 2 years warrantly
10. Widely used for show, concert, event, party, banquet etc.
P5.33 SMD3528 Indoor full Color LED Screen Specification |
| Pixel pitch | 5.33mm |
| Size of module | 288mm x 288mm |
| Resolution of module | 54x54 |
| Size of cabinet | 576mm x 576mm x65mm |
| Resolution of cabinet | 108x108 |
| Weight of Cabinet | 10KGS |
| Brightness | >1800cd/ |
| Density | 35200dots/ |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 4-60M |
| Maximum power consumption | <700W/ |
| Driving method | 1/9 scan |
| Control method | Synchronization |
| Gray scale | 16 bits |
| Colors | 10.7Million |
| Color temperature | 6500k |
| Working voltage | AC220V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| MTBF | >5,000 hours |
| Frame frequence | ≥60Hz |
| Refresh frequence | >1500Hz |
| IP grade(Front/Back) | IP34 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
| Systems operating platform | WINDOWS(WINXP,WIN7/8,Win10), and interfaces for secondary development |
