Fast-Maintenance Outdoor P10 Full Color LED Display (DIP346)
| Price: |
US $ 900/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |

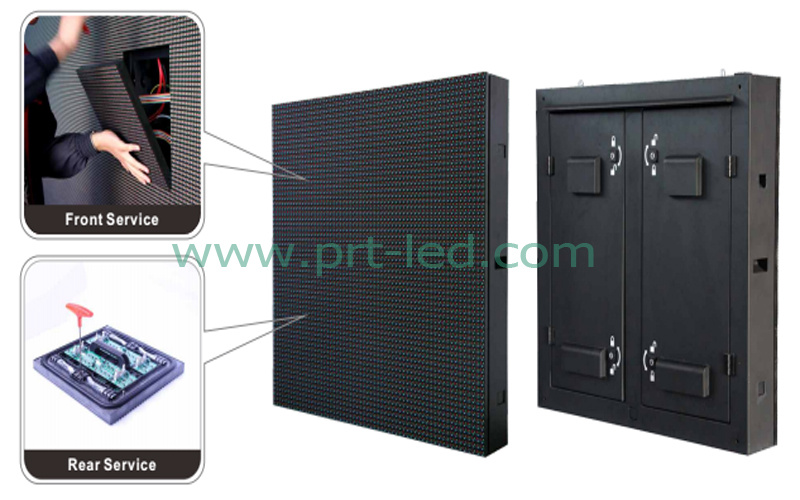

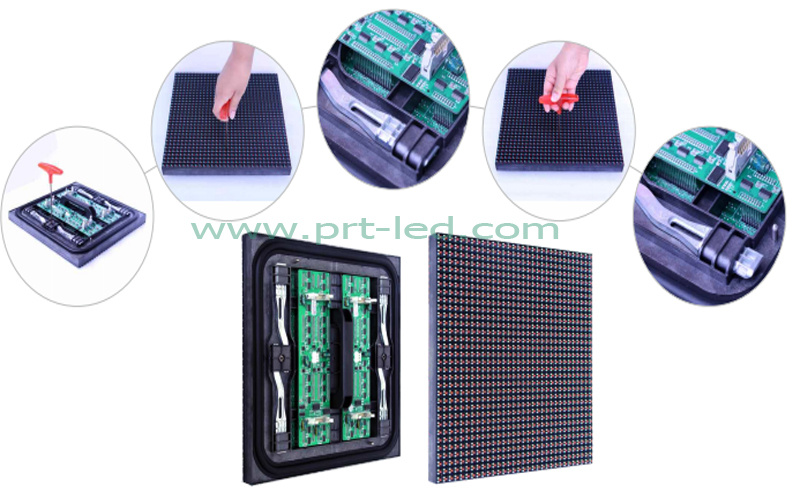

Fast-maintenance Outdoor P10 Full Color LED Display, can be maintained from both front and back side according to different condition,very convenient and easily , save much labor cost Product Features:1.High quality led chips ensure high brightness up to 8500nits
2.Good waterproof IP65, with back doors
3.Long view distance, High definition, Good uniformity,can be seen from long away even under sunshine
4. With aviation plugs for cables connection, easy and conveninet to combine the cabinets
5. Low power consumption, energy-saving, long life span>100,000Hours
6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the contents what you want, connect with PC computer or network, also can remoto control with asynchronous system.
7. Widely used for commercial advertising, stage background, mobile led display. Traffic led display, sports led display etc.for permanent install or rental use
| P10 Outdoor full Color LED Screen Specification |
| Pixel pitch | 10mm |
| Pixel Configuration | 1R1G1B |
| LED component | DIP346(Epistar) |
| Size of module | 320mm x 320mm |
| Resolution of module | 32x32 |
| Size of cabinet | 960mmx 960mm x150mm |
| Resolution of cabinet | 96x96dots |
| Material of Cabinet | Iron with back doors |
| Weight of Cabinet | <60KGS |
| Brightness | >8500cd/m2 |
| Density | 10000dots/m2 |
| Best viewing angle | 110 /50 |
| Best viewing distance | 10-150M |
| Maximum power consumption | <900W/m2 |
| Average power consumption | <300W/m2 |
| Driving method | 1/4 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256 x 256 x 256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1800Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
| Prod Model: |
P10-DIP346-320x320MM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
DIP346 |
| Module Size: |
320X320mm |
| Module Resolution: |
32X32dots |
| Brightness: |
>8500nits |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Application: |
Advertising, Stage Performance, Rental |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing LED display screen and some related LED lighting, owned several new-automatic production lines and advanced test equipments to control quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS.
Our main products include full color LED display, Outdoor LED display, Indoor LED display, Rental LED screen, Stage LED curtain screen, Sport stadium LED screen, Mobile LED screen etc. Also supply LED professional stage light, LED decoration lights, LED panel light, based on some customer' s request.
Our subcompany named PRT International Trade Co., Ltd, who in charge of exporting business, members with rich exporting experience over ten years, guarantee the products to be shipped out smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
You are welcome! Waiting for you!
