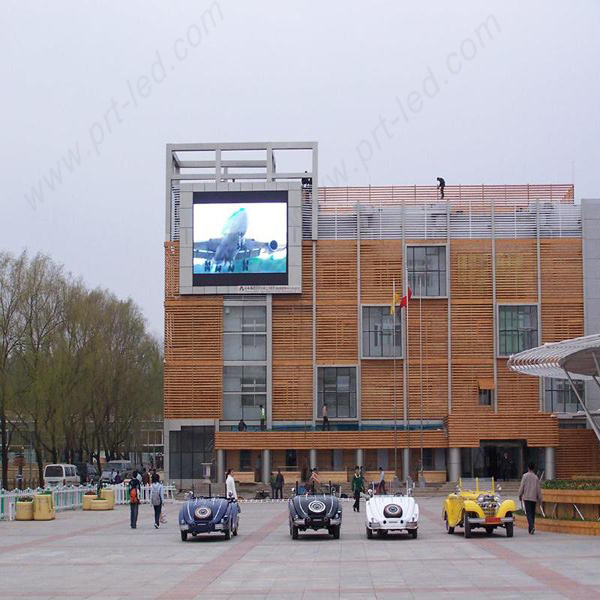

MD3535 P10 outdoor full color led display with good uniformity and high brightness for advertising
1. SMD3535 led encapsulation confirm wide view angle and high brightness up to 7500nits
2. Good waterproof IP65, long life span>100000Hours
3.Black body lamps ensure high contrast ratio, high definition, Good uniformity
4. With Rental design Cabinet, easy and quick to assemble without tools in short time
5. Low power consumption, good heat dissipation, energy saving 25%
6. Can be fixed installation or for rental use, to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer and network, also can remoto control with 3G, Wifi
7. Widely used for commercial advertising,promotion display,stage background screen , mobile led display. Traffic led sign, etc.
| P10 Outdoor full Color LED Screen Specification |
| Pixel pitch | 10mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 black |
| Size of module | 320mm x 160mm |
| Resolution of module | 32x16 |
| Size of cabinet | 960mmx 960mm /1280mm x 960mm |
| Resolution of cabinet | 96x96 / 128 x 96 |
| Material of Cabinet | Iron with back doors |
| Weight of Cabinet | <60KGS |
| Brightness | >7500cd/ |
| Density | 10000dots/ |
| Best viewing angle | 140 /14 |
| Best viewing distance | 10-150M |
| Maximum power consumption | <1000W/ |
| Average power consumption | <350W/ |
| Driving method | 1/2 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1800Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
