Company Profile:
We provide Indoor LED Screen, Outdoor LED Screen, and more
Shenzhen Mountain ALi Group Electronic Technology Co.,LTD was established in 2000s. Has developed to China's largest LED diode factory. With the registered capital of one hundred million RMB, Mountain ALi Group then was founded. A subsidiary,Shenzhen Sancai Photoelectric Co.,Ltd was established in the same year, mainly developing and manufacturing LED Full Color Display. During 2012, it is developing rapidly, growing up fast. We have opened many suboffice in different provinces and cities, such as Zhengzhou, Shandong, Xi'an, Shenyang, Chengdu, Beijing, Jiangsu, Xinjiang etc. Shenzhen Mountain ALi Group focus on service series of specialized market advertising and brand, stadiums, events and entertainment, provide them with different patterns of led application product solutions. Now our products are widely used in dozens of countries worldwide, continue to emerge in the international renowned events and occasions, capture and focus the imagination of millions of viewers.
Products list
| Indoor full color LED display / module | P3 | P4 | P5 | P6 |
|
|
|
| Outdoor full color LED display / module | P6 | P7 | P8 | P10 | P10cylinder | P16 | P20 |
| Single color LED display / module | P7 | P8 | P10 |
|
|
|
|
Our features:
1.High quality:
Use high quality LED with high luminous efficiency and low brightness decay to make the display stable.
2.Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.The products support multiple display modes.
3.Easy maintenance:
Can fix the single point to save the maintenance cost.
4.Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well.
Our advantages:
1.Price advantage: No. 1 cost effective. The price is very good, please contact us for an offer. You can compare and know!
2.Technology advantage:
Due to the light weight and low power consumption, it can reduces the labor cost, operating cost and transportation cost.High refresh rate: Over 3000HZ/S; When you take photoes or video, no scaning lines.
3.Application advantage:
It's wide Application, such as stage rental events, exhibition, wedding and so on.
4.Spending advantage
Due to the light weight and low power consumption, it can reduces the labor cost, operating cost and transportation cost.
5.Service advantage:
After service dept& Tech Dept. Perfect after sales system. We react in 1 day, our sales will submit a good proposal based on your project, welcome to send an inquiry and visit our factory in Shenzhen, China
Parameter
| The specifications of modules |
|
| Items | Parameter |
| Product Model | P6 Outdoor Full Color Led Module |
| Module size | 192mm*96mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 32dots(W)*16dots |
| Module maximum power consumption | 20W |
| Module Thickness | 2.7CM |
| Module Weight | 0.4kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/8scan |
| Interface | HUB75-B |
| Brightness | ≥7000cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 768mm*768mm |
| Module quantity | 32pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 128*128dots |
| Optimal viewing distance | 6M~50M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 1100W/H |
| Maximum power consumption | ≤600W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:

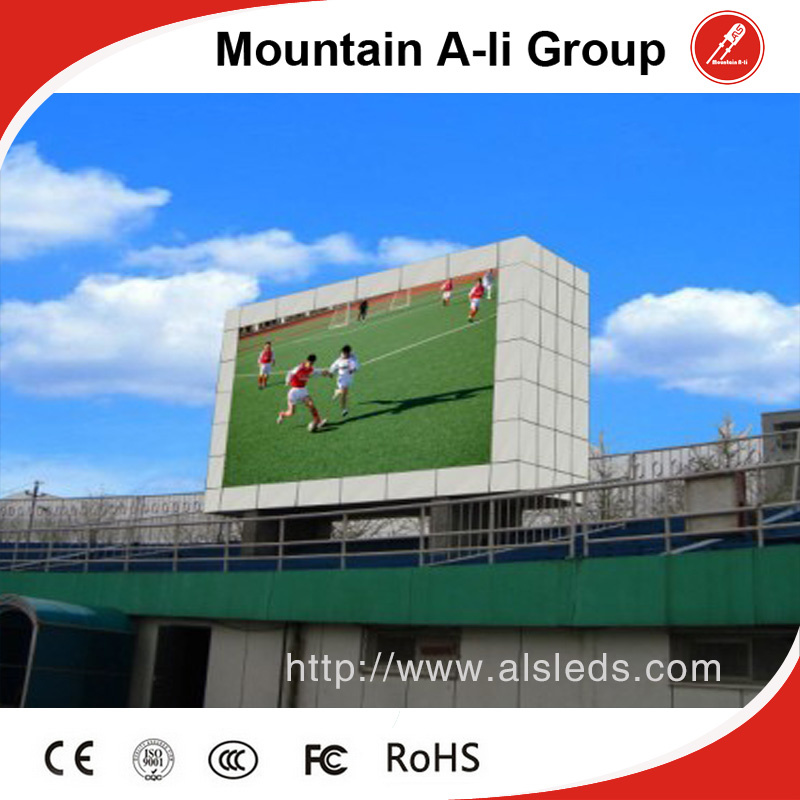

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
