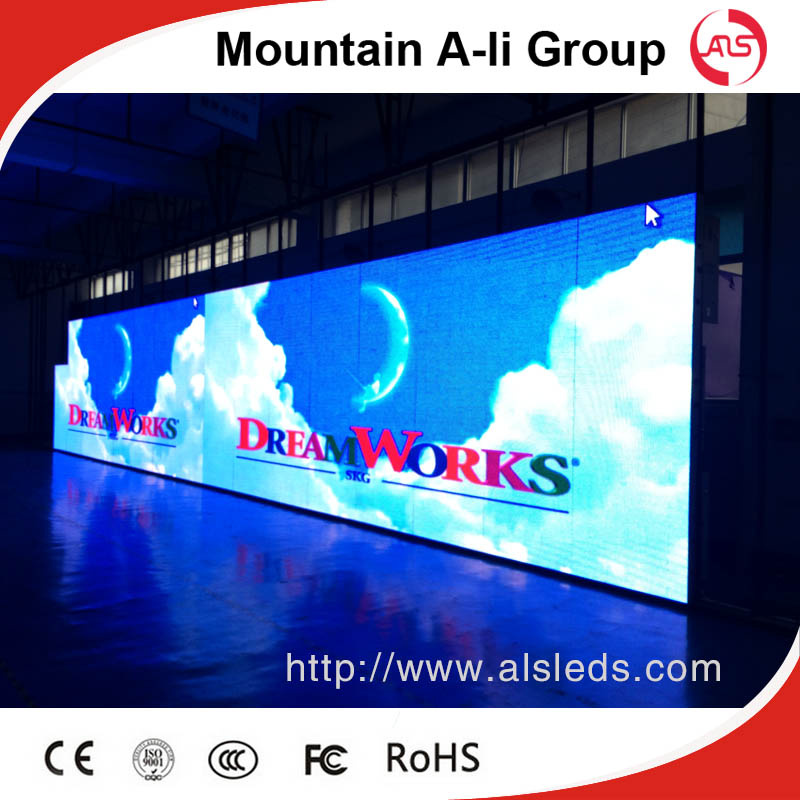

Home LED Light Products P3 Indoor Full Color LED Screen / Panel /Display

P3 Indoor Full Color LED Screen / Panel /Display

P3 Indoor Full Color LED Screen / Panel /Display
Price: US $ 1150-1250/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: T/T,Paypal,Western Union
Parameter

The specifications of modules
ItemsParameter
Product ModelP3 Indoor Full Color LED Module
Module size192mm*96mm
Pixel pitch3mm
Pixel density 111111dots/m2
Pixel configuration1R1G1B
Module resolution64dots(W)*32dots
Module maximum power consumption18W
Module Thickness1.4CM
Module Weight0.16kg
Driving methodConstant Current Driving
Scanning method1/16scan
InterfaceHUB75
Brightness ≥1500cd/m2
The specifications of cabinets
Cabinet size576mm*576mm
Module quantity18pcs
Power supply5V/40A 5V/60A
Cabinet resolution 192*192dots
Optimal viewing distance3M~20M
Optimal viewing angle160°(W) 120°(H)
RHWorking temperature(Work :-20°C~+60°C)
System operating humility10%-95%
The specifications of power supplier
Operating VoltageAC220V±10%
Average power consumption180W/H
Maximum power consumption≤360W/m2
Electric current≤20mA(single LED)
The specifications of control card
Control PanelsPentium4 or above
Operating systemWIN98/2000/NT/XP
Control modelSynchronization with PC
The specifications of the main technical parameters
Driving deviceConstant Current Driving
Refresh rate≥600HZ
Grey scaleRGB Each 256, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic Switch
Display Mode800*600/1024*768/1280*900


Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.


Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2years
6. Delivery time: 5-12working days

Prod Model: P3 indoor full color display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Configuration: 1R,1G,1B
Scanning Mode: 1/16 Scan
Display Type: LED Video Display
Application: Shopping Guide
Certification: CCC
Pixel Pitch: 3mm
Pixel Density: 111111dots/M2
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
