Product Description

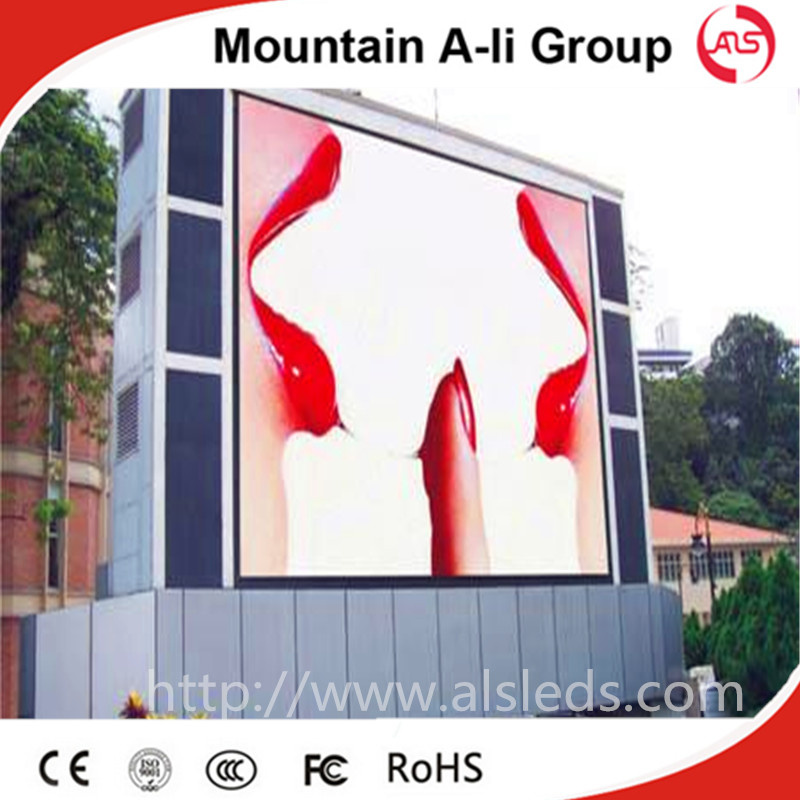

DIP P16 Outdoor LED Display for Advertising/Video Program
1.What are the advantages of our LED display?
1). Low energy consumption,high brightness (brightness can be customized)
2). Less maintenance performance,long lifespan (2 more years lifespan than SMD board)
3). No color difference,large viewing angle (Horizontal 160°, Vertical 120°)
4). Optimal design,high-precision seamless,accurate to 0.1mm gap
5). Ultra high refresh rate,can support video shooting,clear picture quality assurance
6). Quick and easy assembly,removing system,short loading time
7). Waterproof,dust-proof,completely used in outdoor
2.Why choose our LED display?
1).Experience advantage: more than 10 years manufacturing experience, powerful factory!
2).Price advantage: Factory Outlet, No.1 cost effective
3).Quality advantage: superior LED led lamp from our own factory, serious QC control system,best material(passed ISO 9001,CE,RoHS,IP65 waterproof certification...)
4).Service advantage: after service dept& Tech Dept. 1-3 years guarantee period.
The Technical Parameters of P16 led screen |
Product Model | P16 Full Color Led Module |
|
Module size | 256mm*256mm |
|
Pixel pitch | 16mm |
|
Pixel density | 3906dots/m2 |
|
Pixel configuration | 1R1G1B |
|
Module resolution | 16dots(W)*16dots(H) |
|
Module maximum power consumption | 35W |
|
Module Thickness | 33CM |
|
Module Weight | 1kg |
|
Driving method | Constant Current Driving |
|
Scanning method | static scanning |
|
Interface | HU40 |
|
Brightness | ≥7500cd/m2 |
|
Cabinet size | 1024mm x 1024mm |
|
Module quantity | 16pcs |
|
Power supply | 5V/40A 5V/60A |
|
Cabinet resolution | 64*64dots |
|
Optimal viewing distance | 10M~50M |
|
Optimal viewing angle | 160°(W) 120°(H) |
|
RHWorking temperature | (Work :-20°C~+50°C) |
|
Driving device | IC Constant Current Driving |
|
Refresh rate | ≥600HZ |
|
Grey scale | RGB Each 256, can display 16.7M colors) |
|
MTBF | ≥9000hours |
|
3.Our service
1). Your inquiry related to our products or price will be replied in 24hrs
2). OEM&ODM, any your customized lightings we can help you to design and put into product
3). Distributorship are offered for your unique design and some our current models
4). Protection of your sales area, ideas of design and all your private information
5). Top quality+Reasonable price+Responsible After Service=Successful & Win
4.Trade Terms
1). Package: Anti-shaking wooden package, Air flight case or Carton package
2). Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3). Shipping freight are quoted under your requests
4). Shipping port: Shenzhen, Mainland China
5). Warranty time: 2 years
6). Delivery time: 3-12 working days
5.Contact us
1).Tel:86-755-29196200/29196201
2).Fax:86-29196202
3).website:http://www.alsleds.com
4).Add: No,28,Jianlong'ao,Guantian Community,Shiyan Street,Bao'an District,Shenzhen,China.
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
