Product Description

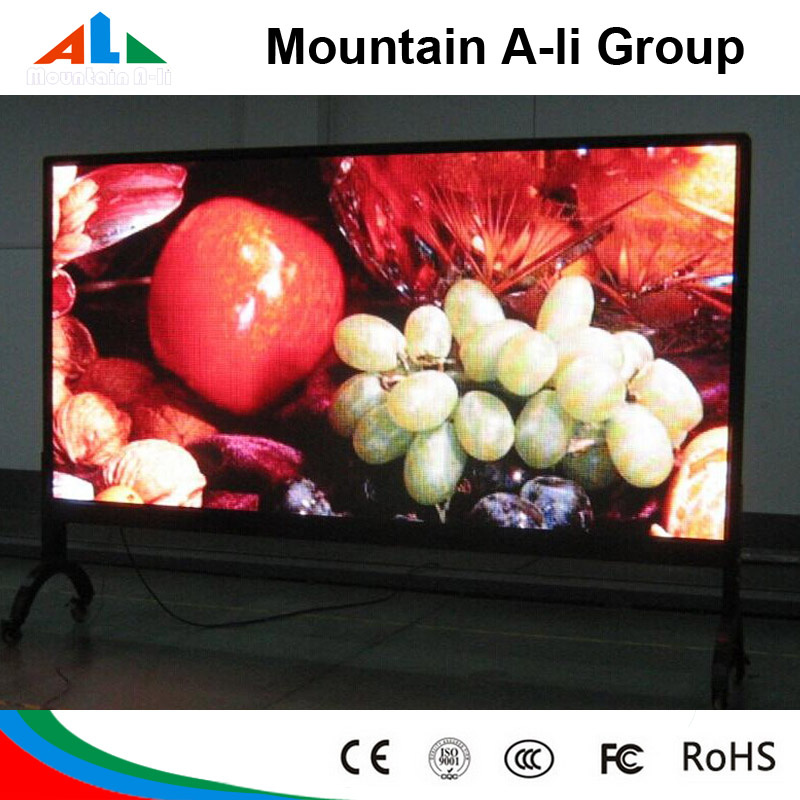

P3 Indoor Full Color LED Display:
Streamlined appearance design
Easy to install, no need use tools
Seamless splicing technology
Diversified installation structure design
Point by point correction high-end display technology
Patent technology to screen more stable
Automatic timer function
No fans, no noise
Full color indoor led electronic display has many advantages as following:
1. Energy saving.
2. Colorful, fresh & beautiful images.
3. Competitive price.
4. Superior Uniformity.
5. Extra-high Brightness.
6. The LED display screen is comprised by the cabinet.
7. The LED Display cabinet has a fixed size(standard size).
8. We can expand the size of the LED display according to our requirement based on the cabinet size.
9. High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
10. Having good lightening accordance and no mosaic.
11. Having larger viewing angle: Horizontal angle 110 degree / elevation angle 110 degree. Getting vivid effect within any position of the viewing range.
12. Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance.
13. Good heat emission capability.
14. Environmental-friendly.
|
SMD P3 Indoor Full Color HD LED Display (192mm*96mm) |
|
To get best white balance, color ratio is designed to be R: G: B/3: 6: 1. |
|
Pixel |
Item |
Parameter |
|
Real Pixel pitch |
3mm |
|
Pixel composition |
1 red, 1 green and 1 blue LED |
|
Module |
Module resolution |
64 x32=2048pixels |
|
Module size |
192mm x96mm |
|
Cabinet |
Cabinet size |
576mm x576mm |
|
Cabinet resolution |
Real pixel: 36864pixels |
|
Cabinet materials |
Cold rolled steel (mixed Iron & steel) |
|
Screen |
Physical Resolution /sqm |
111111pixels/sqm |
|
Brightness |
≥ 1700cd/sqm |
|
Brightness adjustment |
256 level automatically |
|
Scanning method |
1/16scan & physical pixel |
|
Drive methods |
Constant current drive |
|
Best Viewing angle |
Horizontal: 110 degrees, vertical: 110 degrees, |
|
Grey scale |
65536 levels |
|
Color processing |
16bit |
|
Display colors |
4.4trillion |
|
Contrast ratio |
2000: 1 |
|
Frame rate |
> 60 frames/sec |
|
Refresh rate |
1000-3000HZ(no flickers whilecamcorder recording) |
|
Control method |
Synchronized with computer monitor |
|
Lifetime |
> 100, 000 hours |
|
Defects rate |
≤ 0.0001 |
|
Operating voltage |
AC220V± 15% , 50/60HZ |
|
Screen power consumption |
Max: 1800w/sqm; Average: 750w/sqm |
|
Color temperature |
6500K± 500 |
|
Control distance. |
100 m(no repeating) by net line; Optical fiber: 500m- 10km |
|
IP level |
IP40 in the front, IP40 at the back |
|
Operating temperature |
_ 20degree--+60degree |
|
Operating ambient humidity |
10%_ 95%RH |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
