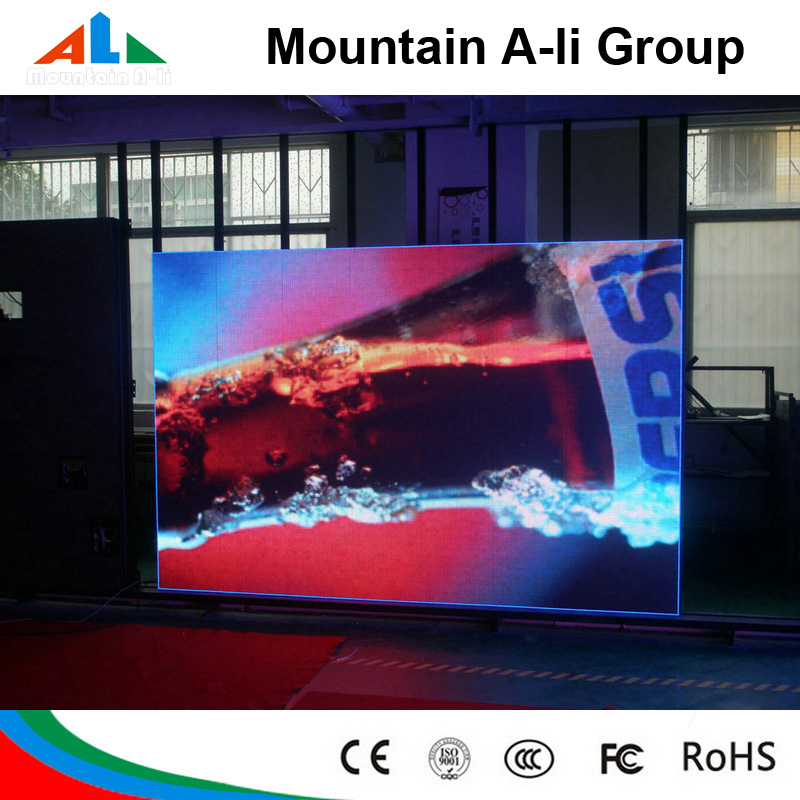

Slim Rental LED Screen/Indoor HD Video LED Display (Stage P4 P5, P6 board)

Name: Slim Rental LED Screen/Indoor HD Video LED Display (Stage P4 P5, P6 board)
Brand: yourledlight.com
SKU: 747762375
Availability: InStock
Rating: 4.4 (75 reviews)

Price:	US $ 396-2000/Square Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Square Meter
Pay Type:	T/T,Western Union

Contact Supplier

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.

Showroom Product Company Profile

Mountain A-Li LED display screen

Company Intruduction
Shenzhen Mountain A-Li Electronics Company was founded in 2000, with a registered capital of 15 million Yuan, a workshop covering an area of 10000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.

Why US:

1. CE, RoHS, FCC
2. Low consumption
3. Quality insuranc PCIC

Production:
LED Display /led display screen/led sign/LED video wall
1). Model No.: P2mm, P3mm, P4mm, P5mm, P6, mm P8 P10m, P12mm, P16mm, P20mm.
2). Display Color: 256*256*256
3). LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight case, wooden box package & carton box and so on.
7). Guarantee: 3 years

Model Number	P3mm	P4mm	P5mm	P6mm	P7.62mm
Module size	192mm*96mm	256mm*128mm	320mm*160mm	192mm*192mm	244mm*244mm
Pixel pitch	3mm	4mm	5mm	6mm	7.62mm
Pixels Density	111111 dots/m2	62500dots /m2	40000 dots/m2	27777dots /m2	17222 dots/m2
Pixel configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Package mode	SMD2121	SMD2121/SMD0805	SMD3528	SMD3528	SMD3528
Pixel resolution	64dots(W)*32 dots(H)	64dots(W)*32 dots(H)	64dots(W)*32dots(H)	32dots(W)*32dots(H)	32dots(W)*32dots(H)
Scan mode	1/16scan	1/16scan	1/16scan/ 1/8scan	1/8scan / 1/4scan	1/8scan/1/16scan
Port type	HUB75-A	HUB75-A	HUB75-A	HUB75-A	≥1500cd/m2
Brightness	≥1800cd/m2	≥1200cd/m2	≥1500cd/m2/≥2800cd/m2	≥2200cd/m2 ≥3000cd/m2	≥1500cd/m2 /≥800cd/m2
Cabinet size	576mm*576mm	512mm*512mm	640mm*640mm	576mm*576mm	732mm*732mm
Power supply	5V/40A*3pcs	5V/40A*2 pcs	5V/40A*2 pcs	5V/40A*2 pcs	5V/40A*2 pcs
Pixel per cabinet	192*192	128*128	128mm*128mm	96mm*96mm	96mm*96mm
Best viewing distance	3M ~ 20M	4M ~ 20M	5M ~ 30M	6M ~ 40M	7M ~ 40M
Best viewing distance	160°(W) 120°(H)	160°(W) 120°(H)	160°(W) 120°(H)	160°(W) 120°(H)	160°(W) 120°(H)
Temperature	-40 degree~ +70 degree	-40 degree~ +70 degree	-40 degree~ +70 degree	-40 degree~ +70 degree	-40 degree~ +70 degree
Relative humidity	10%-95%	10%-95%	10%-95%	10%-95%	10%-95%
Screen thickness	85mm	85mm	85mm	85mm	85mm
Working voltage	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%
Average Power	180W/ m2	185W/ m2	180W/ m2	220W/ m2	160W/ m2
Max.Power consumption	≤360W/ m2	≤550W/ m2	≤500W/ m2	≤650W/ m2	≤480W m2
Refresh frequency	≥2200HZ	≥2200HZ	≥2200HZ	≥2200HZ	≥2200HZ
Grey scale/colo	256levels of each color(RGB)/16.7M colors	256levels of each 256levels of each color(RGB)/16.7M colors color(RGB)/16.7M colors	256levels of each color(RGB)/16.7M colors	256levels of each color(RGB)/16.7M colors	256levels of each color(RGB)/16.7M colors
MTBF	≥9000hours	≥9000HZ	≥9000hours	≥9000hours	≥9000hours

Prod Model:	indoor p4 led display
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia
Module Size:	256mm*128mm
Mtbf:	9000 Hours
Brightness:	1800dots/M2
Refresh:	2200Hz
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Application:	Shopping Guide
Pixel Configuration:	1R,1G,1B
Pixel Pitch:	4mm
Certification:	FCC
System Operating Platform:	WIN XP
Display Type:	Stage LED Screen
IP Rating:	IP31
Pixel Density:	62500dots/M2

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
