pH6mm Indoor Advertising LED Display with High Quality
Price: |
US $ 600-650/Square Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Square Meter |
Pay Type: |
T/T,Western Union |

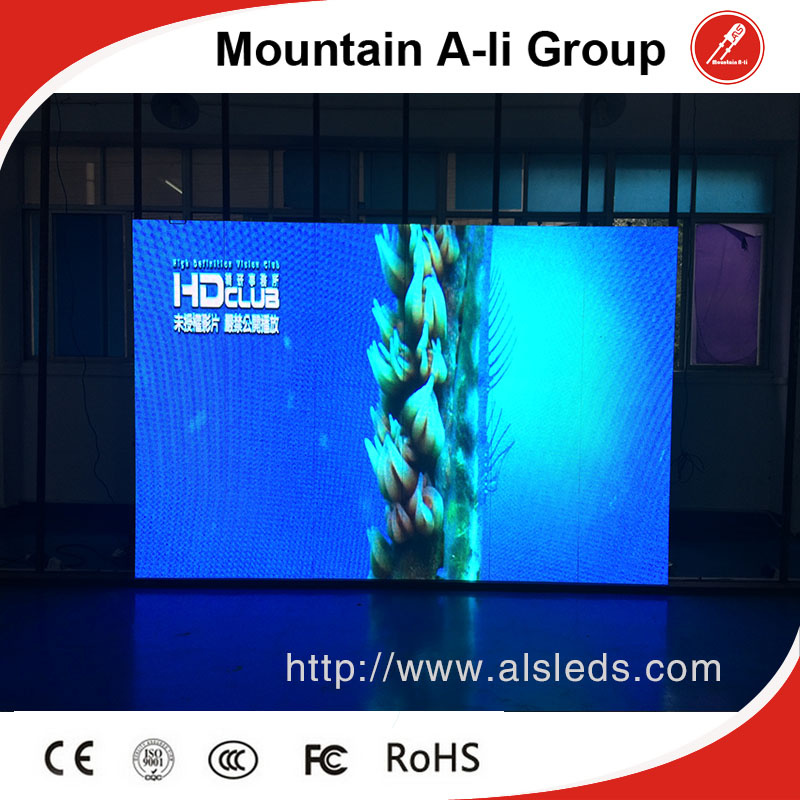

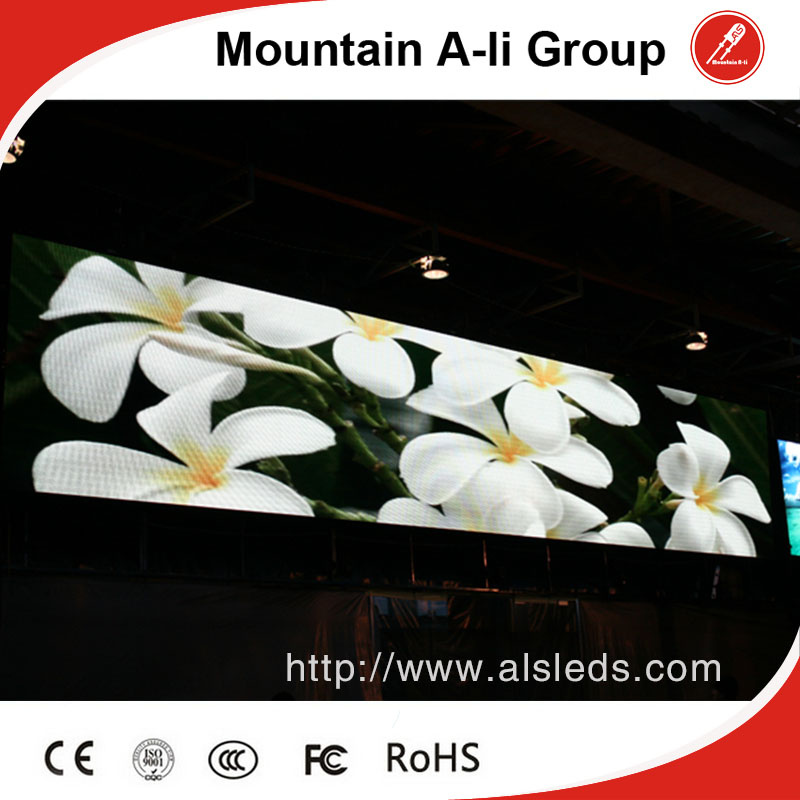

PH6mm Indoor advertising LED Display with high quality
product features :
1:Low energy consumption ,long lifespan , less maintenance performance .
2:No color difference , concentrating well, good veiwing angle .
3:Better waterproof , better radiation ,better dust proof ,good quality modules ,under the same conditions ,using two more years than SMD .
4:High brightness , high refresh ,the biggest advantage of a comprehensive reflection of outdoor HD LED display .
5:Simply installation , easy to maintain ,easy to use .PH6mm Indoor advertising LED Display with high quality techincal parameters |
Unit Module | Item | parameter |
Model | ALS - P6 - 4S / ALS - P6 - 16S |
Module size | 192mm*96mm |
Pixel Pitch | 6mm |
Pixel Density | 27777dots/m2 |
Pixel Configuration | 1R1G1B |
Package mode | SMD3528 |
Module Resolution | 32dots(W)*16dots(H) |
Max power consumption | 15W 12W |
Module Thickness | 14.85mm(without magnet) 27.15mm (with magnet ) |
Module Weight | 0.154kg |
Driving Method | Constant Current Driving |
Scan Method | 1/4scan / 1/8scan |
Interface Way | HUB75-A |
Brightness | ≥3000cd/m2 ≥2200cd/m2 |
Unit Module | dimension | 576mm X 576mm |
Quantity of Module | 18 |
Thermal discharge | fan 2pcs |
Power supply Mode | 5V/40A* 2pcs |
Pixel per cabinet | 96mm*96mm |
Thickness | 85mm |
Optimal Viewing Distance | 6M-40M |
Optimal Viewing angle | 160°(W)120°(H) |
Enviroment Temperature | Storage :-35ºC-+85ºC work :-20ºC-+50ºC |
Power | Relative Humidity | 10%-95% |
Operating Voltage | AC220V±10% |
Average power consumption | ≤270W/m2 / ≤220W/m2 |
Max power Consumption | ≤810W/m2 / ≤3650W/m2 |
Current | ≤20mA (Single LED ) |
Control system | CPU | Pentium4 or above P4 or above |
Operate system | WIN98/2000/NT/XP |
Control Mode | Synchronization with PC |
Main technical parameter | Driving Device | IC Constant current driving |
Refresh Rate | ≥400HZ |
Gray/Color | RGB each 256 grade, can display 16.7M clolor |
MTBF | ≥9000hours |
Power Switch | Automatic Switch |
Display Mode | 800*600/1024*768 |
PH6mm Indoor advertising LED Display with high quality |
Product Advantages :
1. Price Advantage: Best competitive price of the market.
2. Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle etc .
3.Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability. we have the strictly 72hours old ageing test to ensure the quality of the products. 2 Years warranty . CE,ROHS,CCC, ISO9001 ,EMC ,FCC certificates .
4. Service advantage: With professional service team for 24 hours service! Rich advertising LED display engineering experience both in domestic and oversea market .

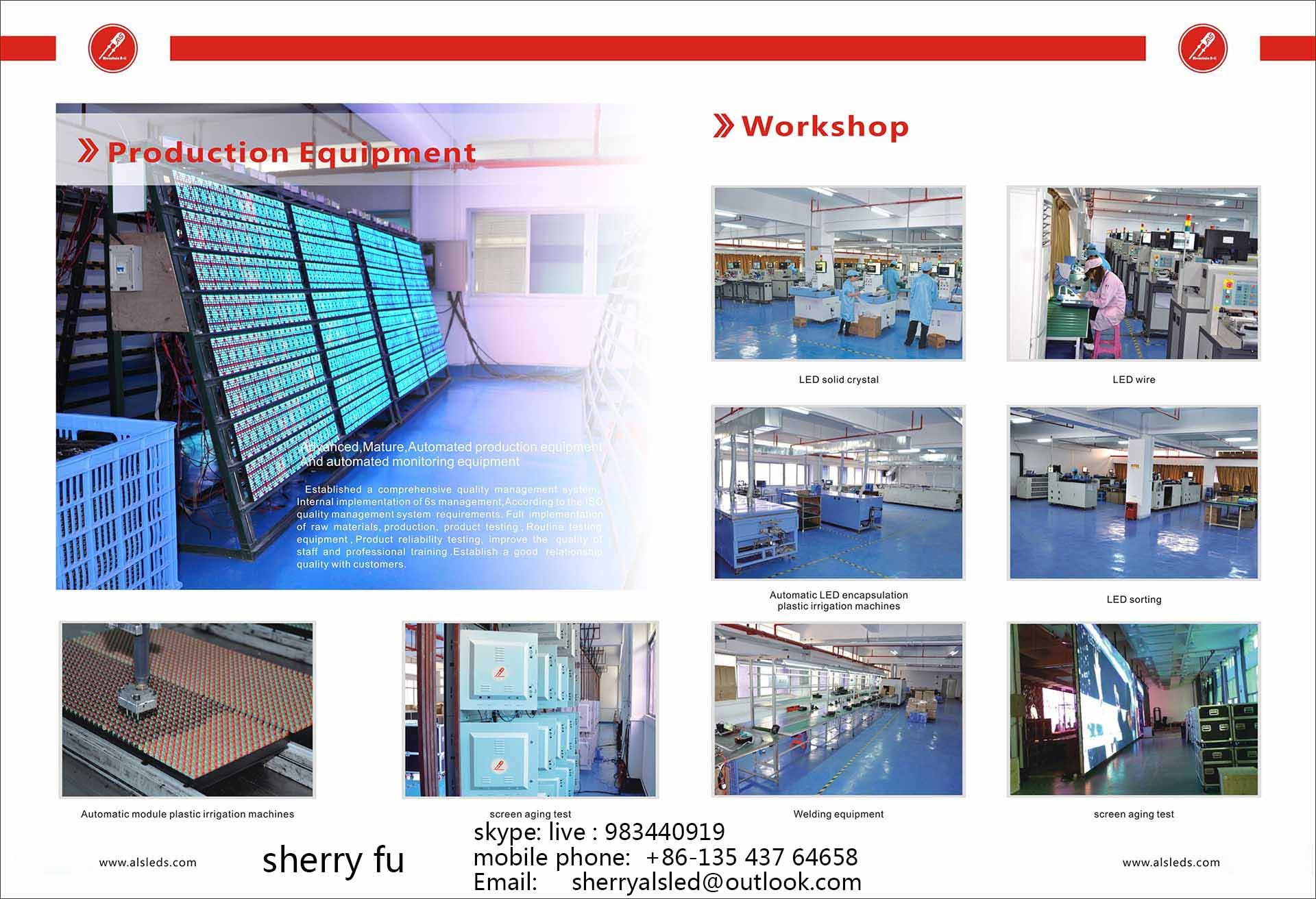

Workshop :
Trade terms :
1. Payment:T/T,30% deposits before production,70% balance to be paid before delivery .
2. Shipping freight are quoted under your requests .
3. Shipping port: Shenzhen,mainland China .
4. MOQ:1SQM .
5;Package : Wooden packing and flight packing .
About Technology :
1. We provide the technology training for free, which contains the operation training and maintenance training at our factory.
2. We will send our engineers to your country by negotiation.
3. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
4. We will send our engineers to your place if we are expected after our negotiation.
Our Services:
1.Your inquiry related to our products or price will be replied in 24hrs .
2.Protection of your sales area,ideas of design and all your private information .
3.Top quality+reasonable price+responsible after service=successful & win
4. Support prints your logo on products and let your logo shine anywhere. OEM/ODM orders are warmly welcome.
5:After-sale service ,including : a :Free technician training, Lifetime free maintenance and upgrade ; b: Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours. ;c: Special service for big project, such as stadium, exhibitions, squares and so on .
Prod Model: |
P6 indoor led display |
Markets: |
South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
192mm*96mm |
Cabinet Size: |
576mm*576mm |
Warranty: |
2 Years |
Lifespan: |
100000hours |
Certificates: |
CE / RoHS /FCC / ISO /EMC |
MOQ: |
1 Square Meter |
Package: |
Wooden Packing /Flight Packing |
Payment: |
T/T ,Western Union |
Delivery Time: |
7-10 Working Days |
Other: |
Accept OEM |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Pitch: |
6mm |
Pixel Configuration: |
1R,1G,1B |
Pixel Density: |
27,777 dots / m² |
Display Type: |
LED Video Display |
Application: |
Concert /Galleries / Trading Market |
Certification: |
FCC,ISO9001,EMC,IP65 |
Scanning Mode: |
1/4 Scan 1/8 Scan |
System Operating Platform: |
Win98/2000/Nt/XP |
IP Rating: |
IP65 |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
