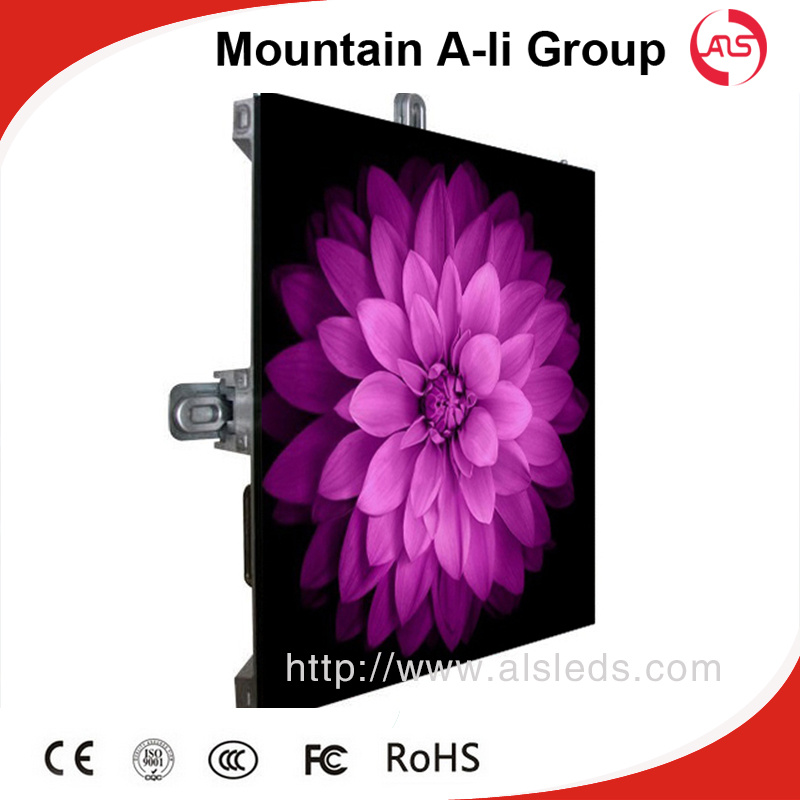

P8 Outdoor Video LED Display
Features Of The Product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 160 degree / elevation angle 120 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
| Product Model | P8 Full Color Led Module |
| Module size | 256mm*128mm |
| Pixel pitch | 8mm |
| Pixel density | 15625dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 32dots(W)*16dots |
| Module maximum power consumption | 25W |
| Module Thickness | 2.8CM |
| Cabinet size | 768mm*768mm |
| Module Weight | 0.55kg |
| Driving method | Constant Current Driving |
| Scanning method | Static Scanning |
| Interface | HU75 |
| Brightness | 8000cd/m2 |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 64*64dots |
| Optimal viewing distance | 10M~120M |
| Optimal viewing angle | 160°(W) 120°(H) |
| Average power consumption | 300W/H |
| Maximum power consumption | 600W/m2 |
| Driving device | Constant Current Driving |
| Refresh rate | 600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | 9000hours |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
