The specifications of modules
Items:Parameter
Product Model: P6 Full Color Led Module
Module size:192mm*96mm
Pixel pitch: 6mm
Pixel density: 27777dots/m2
Pixel configuration:RGB 3 in 1
Module resolution:32dots(W)*16dots(H)
Module maximum power consumption:20W
Module Thickness:2.7CM
Module Weight:0.4kg
Driving method:Constant Current Driving
Scanning method:1/8 scan
Interface:HUB75B
Brightness: ≥7000cd/m2
The specifications of cabinets
Cabinet size:768mm x 768mm
Module quantity:32pcs
Power supply:5V/40A 5V/60A
Cabinet resolution: 128*128dots
Optimal viewing distance:5M~50M
Optimal viewing angle:160°(W) 120°(H)
RHWorking temperature:(Work :-20ºC~+50ºC)
System operating humility:10%-95%
The specifications of power supplier
Operating Voltage:AC220V±10%
Average power consumption:350W/H
Maximum power consumption:≤600W/
Electric current :≤20mA(single LED)
The specifications of control card
Control Panels: Pentium4 or above
Operating system: WIN98/2000/NT/XP
Control model:Synchronization with PC
The specifications of the main technical parameters
Driving device:IC Constant Current Driving
Refresh rate:≥600HZ
Grey scale:RGB Each 256, can display 16.7M colors)
MTBF:≥9000hours
Power switch:Automatic Switch
Display Mode:800*600/1024*768/1280*900
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:

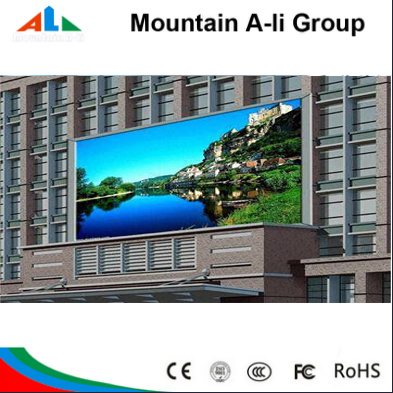

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
