Mountain A-Li LED display screen
Company Intruduction
Shenzhen Mountain A-Li Electronics Company was founded in 2000, with a registered capital of 15 million Yuan, a workshop covering an area of 10000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
Why choose us:
1. CE, RoHS, FCC
2. Low consumption
3. Quality insuranc PCIC
Product Description
Indoor features:
1. SMD3-IN-1 technology are used for indoor LED display
2. Wide view angle: 160 in horizonal and 120 in vertical
3. Special design and advanced SMT technology improves the heat dissipation
4. With high fresh rate controller, guarantee that no scan line when taking photos
5. Regular shape and special shape(such as curve, round) can be designed
6. Easy for assembleing and connection with the connector added
7. High color uniformity and clear image can bring you a vivid audio visual effect
8. Both front access and rear access areavailable
Feactures Introduction:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 160 degree at horizontal line, 120 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Production:

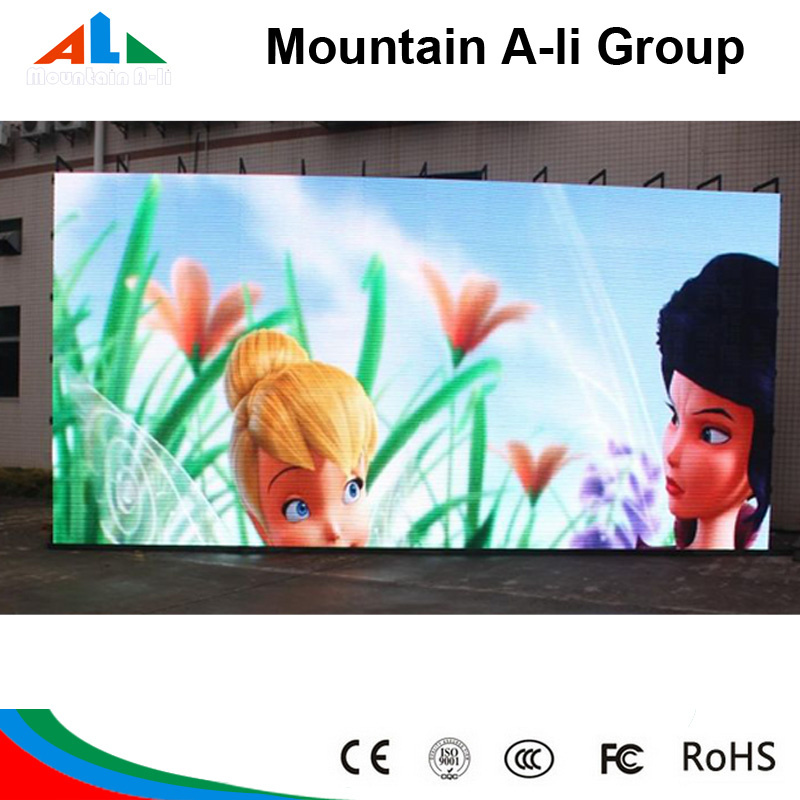

LED Display /led display screen/led sign/LED video wall
1). Model No.: P2mm, P3mm, P4mm, P5mm, P6, mm P8 P10m, P12mm, P16mm, P20mm.
2). Display Color: 256*256*256
3). LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight case, wooden box package & carton box and so on.
7). Guarantee: 3 year
|
Model Number |
P3mm |
P4mm |
P5mm |
P6mm |
P7.62mm |
|
Module size |
192mm*96mm |
256mm*128mm |
320mm*160mm |
192mm*192mm |
244mm*244mm |
|
Pixel pitch |
3mm |
4mm |
5mm |
6mm |
7.62mm |
|
Pixels Density |
111111 /m2 |
62500 /m2 |
40000 /m2 |
27777 /m2 |
17222 /m2 |
|
Pixel configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Package mode |
SMD2121 |
SMD2121/SMD0805 |
SMD3528 |
SMD3528 |
SMD3528 |
|
Pixel resolution |
64dots(W)*32 dots(H) |
64dots(W)*32 dots(H) |
64dots(W)*32dots(H) |
32dots(W)*32dots(H) |
32dots(W)*32dots(H) |
|
Scan mode |
1/16scan |
1/16scan |
1/16scan/ 1/8scan |
1/8scan / 1/4scan |
1/8scan/1/16scan |
|
Port type |
HUB75-A |
HUB75-A |
HUB75-A |
HUB75-A |
≥1500cd/m2 |
|
Brightness |
≥1800cd/m2 |
≥1200cd/m2 |
≥1500cd/m2/≥2800cd/m2 |
≥2200cd/m2 ≥3000cd/m2 |
≥1500cd/m2 /≥800cd/m2 |
|
Cabinet size |
576mm*576mm |
512mm*512mm |
640mm*640mm |
576mm*576mm |
732mm*732mm |
|
Power supply |
5V/40A*3pcs |
5V/40A*2 pcs |
5V/40A*2 pcs |
5V/40A*2 pcs |
5V/40A*2 pcs |
|
Pixel per cabinet |
192*192 |
128*128 |
128mm*128mm |
96mm*96mm |
96mm*96mm |
|
Best viewing distance |
3M ~ 20M |
4M ~ 20M |
5M ~ 30M |
6M ~ 40M |
7M ~ 40M |
|
Best viewing distance |
160°(W) 120°(H) |
160°(W) 120°(H) |
160°(W) 120°(H) |
160°(W) 120°(H) |
160°(W) 120°(H) |
|
Temperature |
-40 degree~ +70 degree |
-40 degree~ +70 degree |
-40 degree~ +70 degree |
-40 degree~ +70 degree |
-40 degree~ +70 degree |
|
Relative humidity |
10%-95% |
10%-95% |
10%-95% |
10%-95% |
10%-95% |
|
Screen thickness |
85mm |
85mm |
85mm |
85mm |
85mm |
|
Working voltage |
AC220V/110V±10% |
AC220V/110V±10% |
AC220V/110V±10% |
AC220V/110V±10% |
AC220V/110V±10% |
|
Average Power |
180W/ m2 |
185W/ m2 |
180W/ m2 |
220W/ m2 |
160W/ m2 |
|
Max.Power consumption |
≤360W/ m2 |
≤550W/ m2 |
≤500W/ m2 |
≤650W/ m2 |
≤480W m2 |
|
Refresh frequency |
≥2200HZ |
≥2200HZ |
≥2200HZ |
≥2200HZ |
≥2200HZ |
|
Grey scale/colo |
256levels of each
color(RGB)/16.7M colors |
256levels of each 256levels of each
color(RGB)/16.7M colors
color(RGB)/16.7M colors |
256levels of each
color(RGB)/16.7M colors |
256levels of each
color(RGB)/16.7M colors |
256levels of each
color(RGB)/16.7M colors |
|
MTBF |
≥9000hours |
≥9000HZ |
≥9000hours |
≥9000hours |
≥9000hours |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
