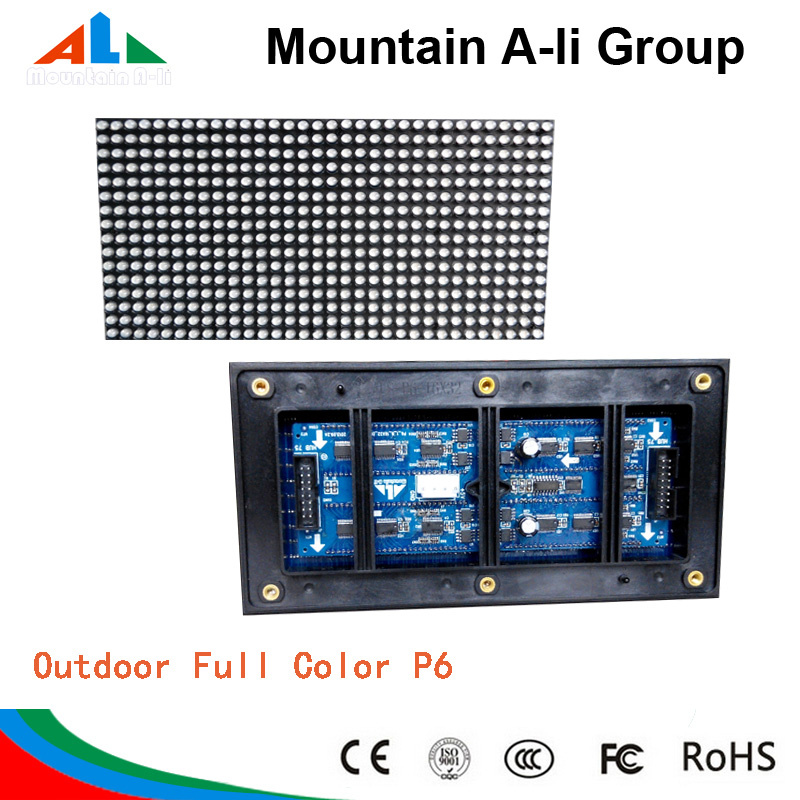

The specifications of modules
Items:Parameter
Product Model: P6 Full Color Led Module
Module size:192mm*96mm
Pixel pitch: 6mm
Pixel density: 27777dots/m2
Pixel configuration:RGB 3 in 1
Module resolution:32dots(W)*16dots(H)
Module maximum power consumption:20W
Module Thickness:2.7CM
Module Weight:0.4kg
Driving method:Constant Current Driving
Scanning method:1/8 scan
Interface:HUB75B
Brightness: ≥7000cd/m2

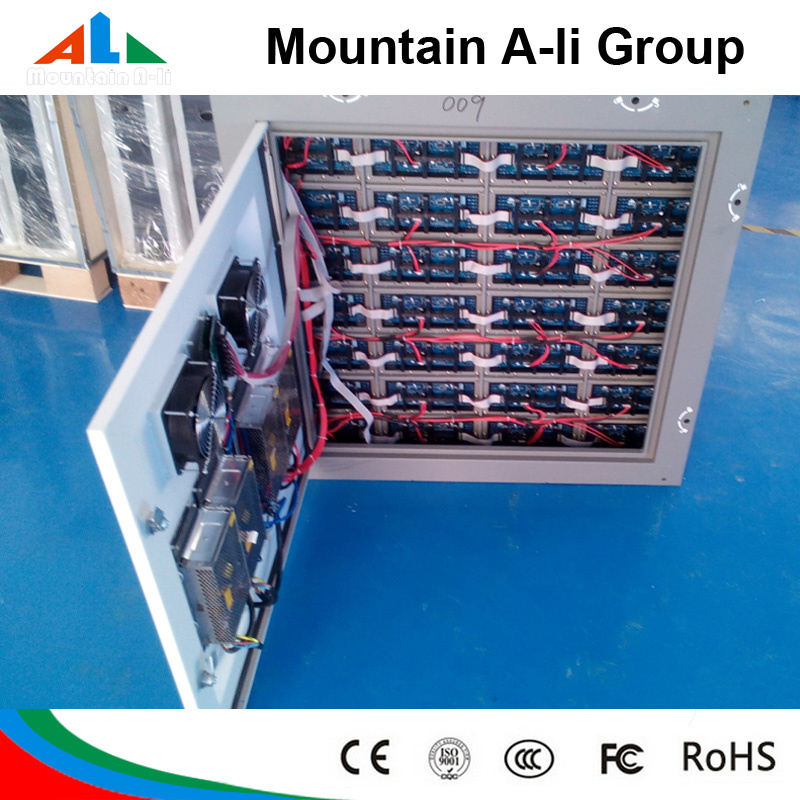

The specifications of cabinets
Cabinet size:768mm x 768mm
Module quantity:32pcs
Power supply:5V/40A 5V/60A
Cabinet resolution: 128*128dots
Optimal viewing distance:5M~50M
Optimal viewing angle:160°(W) 120°(H)
RHWorking temperature:(Work :-20ºC~+50ºC)
System operating humility:10%-95%
The specifications of power supplier
Operating Voltage:AC220V±10%
Average power consumption:350W/H
Maximum power consumption:≤600W/
Electric current :≤20mA(single LED)
The specifications of control card
Control Panels: Pentium4 or above
Operating system: WIN98/2000/NT/XP
Control model:Synchronization with PC
The specifications of the main technical parameters
Driving device:IC Constant Current Driving
Refresh rate:≥600HZ
Grey scale:RGB Each 256, can display 16.7M colors)
MTBF:≥9000hours
Power switch:Automatic Switch
Display Mode:800*600/1024*768/1280*900
