Feature
1 Excellent visual effect,clear and exquisite
2 Good flatness, good viewing angle
3 vivid mixed colors, easy to assembly
4 install and transport with simple packing and convenient use
5 excellent heat-sinking, high stability ,no scrapped lamp
Model Number
| P5mm |
Module size
| 320mm*160mm |
Pixel pitch | 5mm |
Pixels Density | 40000 /m2 |
Pixel configuration
| 1R1G1B |
Package mode
| SMD3528 |
Pixel resolution
| 64dots(W)*32dots(H) |
Scan mode
| 1/16scan/ 1/8scan |
Port type
| HUB75-A |
Brightness
| ≥1500cd/m2/≥2800cd/m2 |
Cabinet size
| 640mm*640mm |
Power supply
| 5V/40A*2 pcs |
Pixel per cabinet
| 128mm*128mm |
Best viewing distance
| 5M ~ 30M |
Best viewing distance
| 160°(W) 120°(H) |
Temperature
| -40 degree~ +70 degree |
Relative humidity
| 10%-95% |
Screen thickness
| 85mm |
Working voltage
| AC220V/110V±10% |
Average Power
| 180W/ m2 |
Max.Power consumption
| ≤500W/ m2 |
Refresh frequency
| ≥2200HZ |
Grey scale/colo
| 256levels of each
color(RGB)/16.7M colors |
MTBF
| ≥9000hours |
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
2. Shipping freight are quoted under your requests
3. Shipping port: Shenzhen, Mainland China
4. Warranty time: 2years
5. Delivery time: 7-15working days
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect

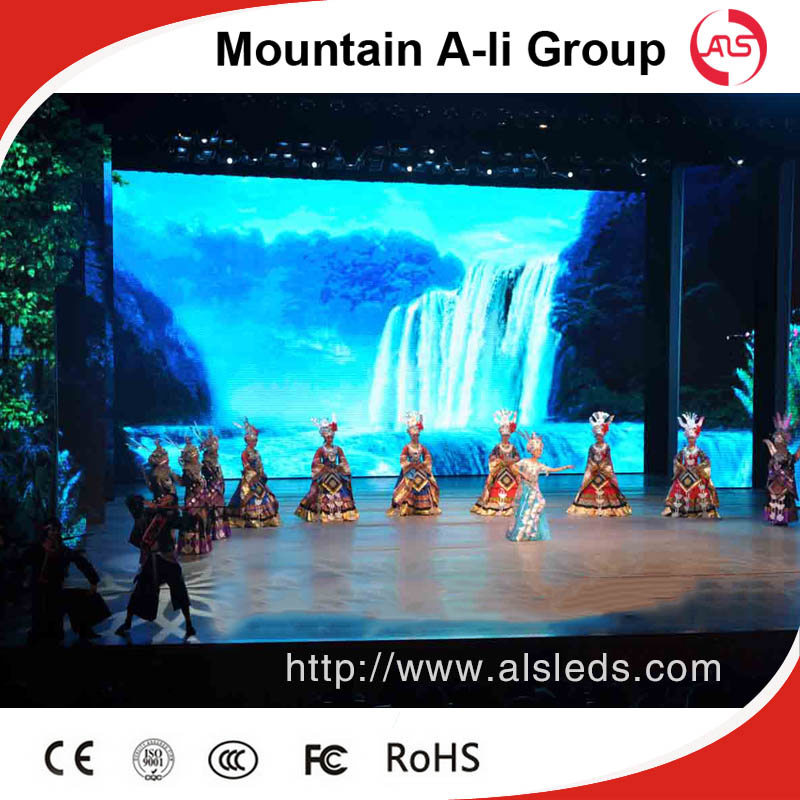

Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
