| Item | parameter |
Unit Module | Model | ALS - P4 - 16S |
Module size | 256mm*128mm |
Pixel Pitch | 4mm |
Pixel Density | 62500dots/m2 |
Pixel Configuration | 1R1G1B |
Package mode | SMD2121/SMD 0508 |
Module Resolution | 64dots(W)*32dots(H) |
Max power consumption | 18W |
Module Thickness | 13.07mm(without magnet) 26.63mm (with magnet ) |
Module Weight | 0.18kg |
Driving Method | Constant Current Driving |
Scan Method | 1/16scan |
Interface Way | HUB75-A |
Brightness | ≥1500cd/m2 |
Cabinet | dimension | 512mmx512mm |
Quantity of Module | 16 |
Thermal discharge | fan 2pcs |
Power supply Mode | 5V/40A* 2pcs |
Pixel per cabinet | 128mm*128mm |
Thickness | 85mm |
Optimal Viewing Distance | 4M-20M |
Optimal Viewing angle | 160°(W)120°(H) |
Enviroment Temperature | Storage :-35ºC-+85ºC work :-20ºC-+50ºC |
Power | Relative Humidity | 10%-95% |
Operating Voltage | AC220V±10% |
Average power consumption | 85W/H |
Max power Consumption | ≤160W/H |
Current | ≤20mA (Single LED ) |
Control system | CPU | Pentium4 or above P4 or above |
Operate system | WIN98/2000/NT/XP |
Control Mode | Synchronization with PC |
Main technical parameter | Driving Device | IC Constant current driving |
Refresh Rate | ≥400HZ |
Gray/Color | RGB each 256 grade, can display 16.7M clolor |
MTBF | ≥9000hours |
Power Switch | Automatic Switch |
Display Mode | 800*600/1024*768 |
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 5-12working days

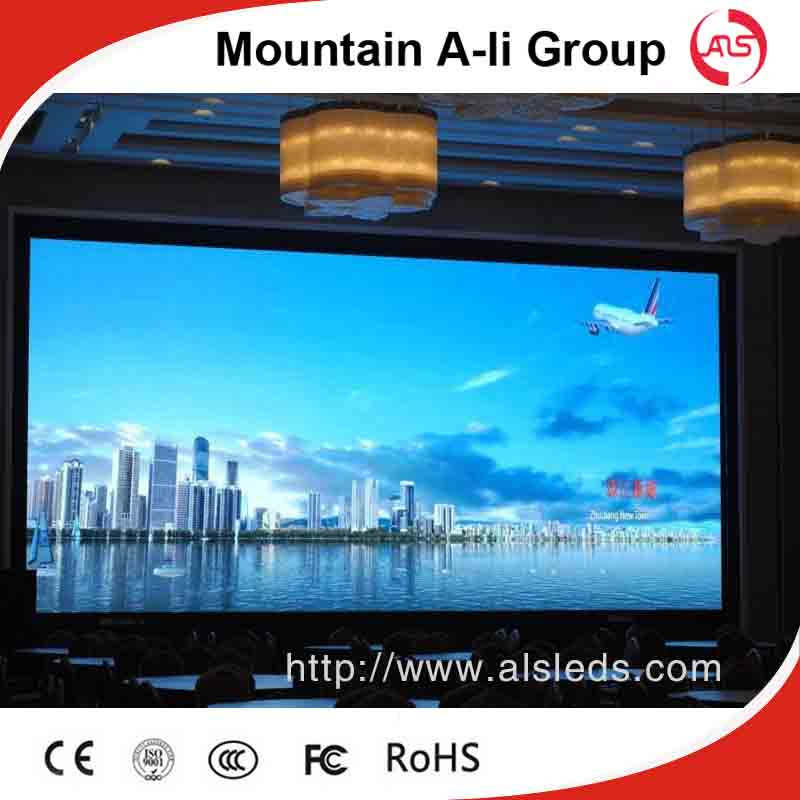

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
