The specifications of modules
ItemsParameter
Product Model P6 Full Color Led Module
Module size192mm*96mm
Pixel pitch 6mm
Pixel density 27777dots/m2
Pixel configurationRGB 3 in 1
Module resolution32dots(W)*16dots(H)
Module maximum power consumption20W
Module Thickness2.7CM
Module Weight0.4kg
Driving methodConstant Current Driving
Scanning method1/8 scan
InterfaceHUB75B
Brightness ≥7000cd/m2
The specifications of cabinets
Cabinet size768mm x 768mm
Module quantity32pcs
Power supply5V/40A 5V/60A
Cabinet resolution 128*128dots
Optimal viewing distance5M~50M
Optimal viewing angle160°(W) 120°(H)
RHWorking temperature(Work :-20ºC~+50ºC)
System operating humility10%-95%
The specifications of power supplier
Operating VoltageAC220V±10%
Average power consumption350W/H
Maximum power consumption≤600W/
Electric current ≤20mA(single LED)
The specifications of control card
Control Panels Pentium4 or above
Operating system WIN98/2000/NT/XP
Control modelSynchronization with PC
The specifications of the main technical parameters
Driving deviceIC Constant Current Driving
Refresh rate≥600HZ
Grey scaleRGB Each 256, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic Switch
Display Mode800*600/1024*768/1280*900

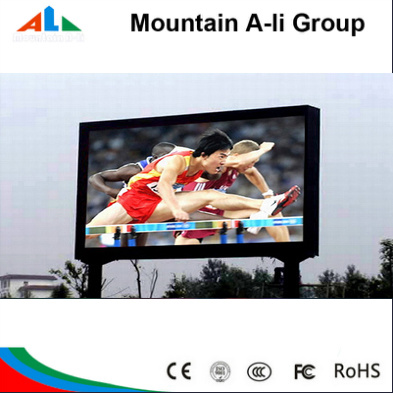

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
