Outdoor P6 Full Color LED Video Display for Advertising
1.Features:
1. High brightness. Use DIP LEDs, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3. Waterproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
6. Both front and rear access are available.
7. Good LED Chips, with large viewing angle, lowe power consumption and good color uniformity.
8. Easy for maintenance.
9. Good quality raw material, accurate technique and careful inspection insures the high quality of led display.
10. Different shape and size can be made according to your requirement.
| Product Model | P6 Full Color Led Module |
|
| Module size | 192mm*96mm |
|
| Pixel pitch | 6mm |
|
| Pixel density | 27777dots/m2 |
|
| Pixel configuration | RGB 3in1 |
|
| Module resolution | 32dots(W)*16dots(H) |
|
| Module maximum power consumption | 20W |
|
| Module Thickness | 2.7CM |
|
| Module Weight | 0.4kg |
|
| Driving method | Constant Current Driving |
|
| Scanning method | 1/8 scan |
|
| Interface | HUB75B |
|
| Brightness | ≥7000cd/m2 |
|
| Cabinet size | 768mm x 768mm |
|
| Module quantity | 32pcs |
|
| Power supply | 5V/40A 5V/60A |
|
| Cabinet resolution | 128*128dots |
|
| Optimal viewing distance | 5M~50M |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| RHWorking temperature | (Work :-20°C~+50°C) |
|
| Driving device | IC Constant Current Driving |
|
| Refresh rate | ≥600HZ |
|
| Grey scale | RGB Each 256, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
Outdoor led dispalyAdvantages:
1. Price: we have the best competitive price at the market, also have the same even better quality.
2. Performance: Best quality, high consistency, Big viewing angle.
3. Quality: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4. Service: Better service at same situation, better cooperation at same service!
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect

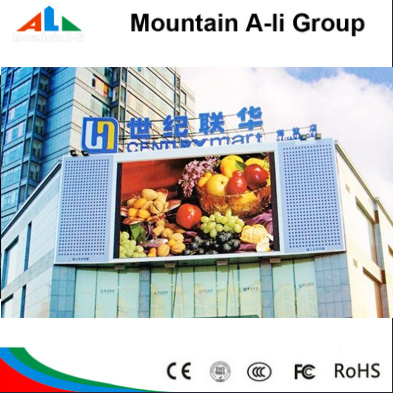

Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
