Main Features:
1. Seamless splicing

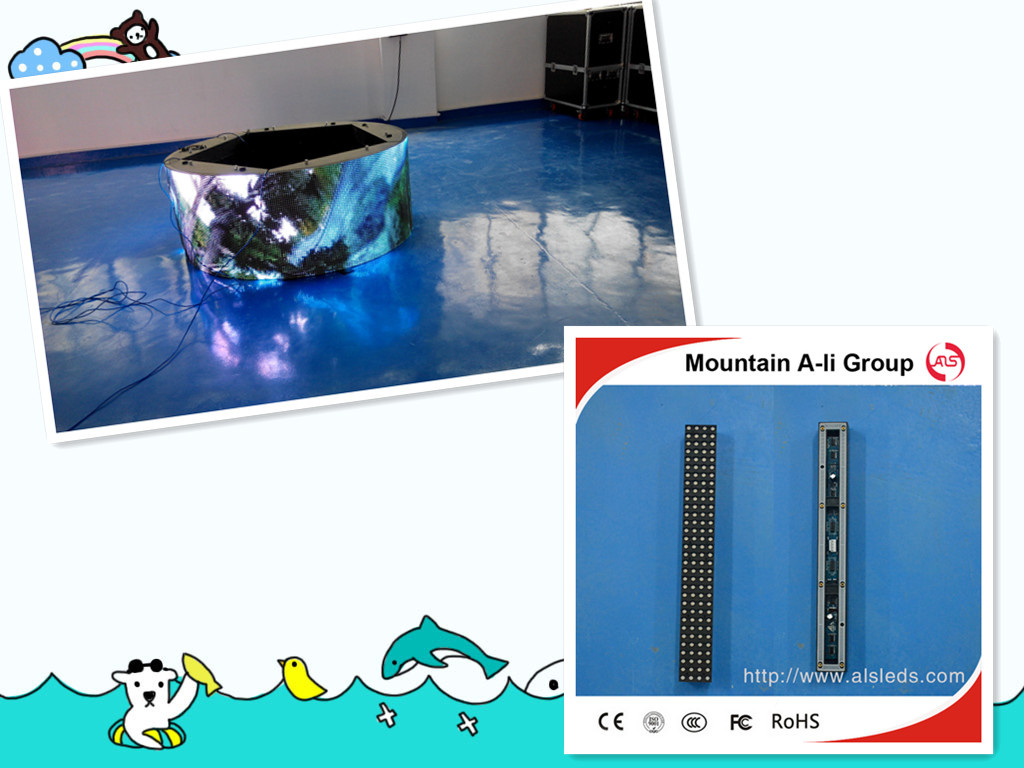

2. Meet requirements of cylindricle LED display
3. Hight Brightness
4. Diameter is meet different requirements, the ball is controlled through numerical,
5. It can moving, hang install, seat install, steel structure design
6. Meet synchro full color video or out-sync full color video display
7. Have designed a good heat dissipation, keep globose the LED display working.
The Technical Parameters of Outdoor led Video screen
Item | Parameter |
| Product model | P10 full color module |
| Module size | 40mm*320mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B 3 in 1 |
| Module resolution | 4dots(W)*32dots(H) |
| Maximum power consumption | 13W |
| Module thickness | 3.5cm |
| Module weight | 0.3kg |
| Driving method | Constant current driving |
| Scan mode | 1/4 scan |
| Interface type | HUB75 |
| Brightness | ≥7500cd/m2 |
| The specifications of cabinet |
|
| The specifications of power supply |
| Operating voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤600W/ |
| Current | ≤20mA(single LED) |
| The specifications of control system |
| Computer | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization control |
| The specifications of the main technical parameters |
| Driving device | Constant current driving |
| Refresh rate | ≥600Hz |
| Grey scale | RGB each 256 grade, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display mode | 800*600/1024*768/1280*900
|
After-sale service
1) Warranty:
Free to solve quality problems to ensure normal operation of led display in the warranty period . If the problem is from the product itself, we bear all the responsibility at any time.
2) Free maintenance:
If led display can't work,our company repair the broken parts and only charge cost of necessary raw materials in the warranty period.We provide spare parts and maintenance for the lowest price after the warranty period.
3)Quick response:
Respond within 2 hours,non-artificial and general fault be solved within 48 hours.
4) Free support:
Provide service support in real time by telephone or internet. With the help of network, we give clients remote debugging support (software) to solve the problem.
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
