Product Description

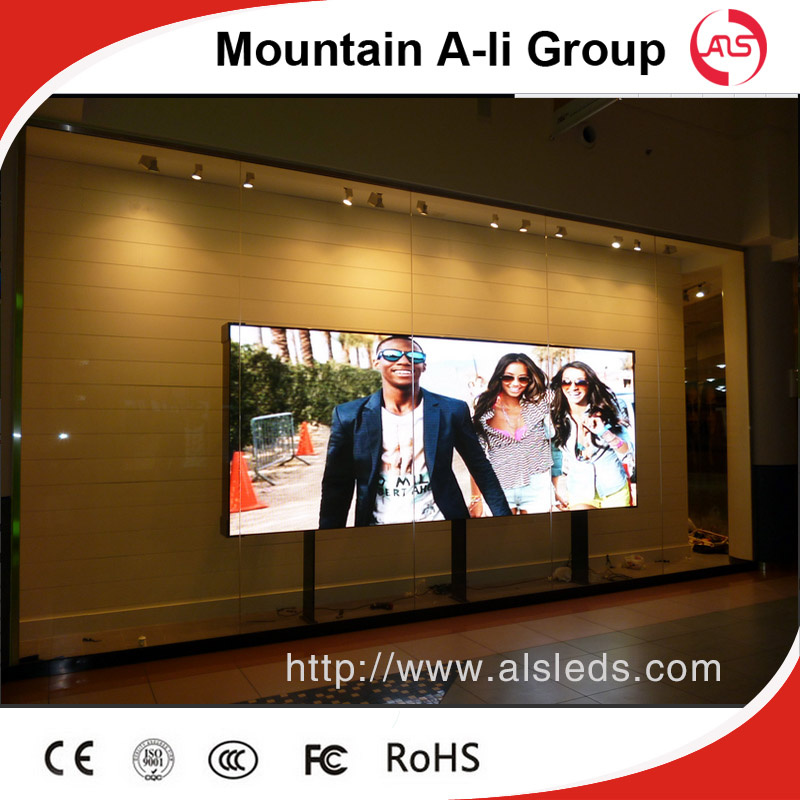

P3.91 Die-Casting Indoor Full Color LED Display for Rental
P3.91 indoor flexible LED display is our competitive products.We have order of this at least 1000 square meters each month. Welcome to visit our factory to have a look!
We are promoting this model, please send us an inquiry, we will send you our best price!
Features:
1. Cabinet size:500mmW*500mmH, thickness around 70mm, only about 12.5Kg;
2. Refresh rate over 2500HZ/S by using MY9868 IC
3. Gap between adjacent cabinets is less than 0.2mm, surface is very smooth and it looks very high end
4. Linsn or Nova control system, high grey scale, true color output;
4. buttons on the backdoor, easy to open and close;
5.Packed by flight cases, ready to go anywhere;
6.Can be suspended on truss or stacked on floor;
7. It is really cost effective
| High quality P3.91 indoor led display screens techincal parameters |
| Unit Module | Item | parameter |
| Model | ALS - P3.91 - 16S |
| Module size | 250mm*250mm |
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536dots/m2 |
| Pixel Configuration | 1R1G1B |
| Package mode | SMD2121 |
| Module Resolution | 64dots(W)*64dots(H) |
| Max power consumption | 32w |
| Module Thickness | 14.66mm(without magnet) 26.55mm (with magnet ) |
| Module Weight | 0.573kg |
| Driving Method | Constant Current Driving |
| Scan Method | 1/16scan |
| Interface Way | HUB75E |
| Brightness | ≥1200cd/m2 |
| Unit Module | dimension | 500mmx500mm |
| Quantity of Module | 4 |
| Thermal discharge | fan 1pcs |
| Power supply Mode | 5V/60A* 1pcs |
| Pixel per cabinet | 128mm*128mm |
| Thickness | 65mm |
| Optimal Viewing Distance | 4M-10M |
| Optimal Viewing angle | 160°(W)120°(H) |
| Enviroment Temperature | Storage :-35ºC-+85ºC
work :-20ºC-+50ºC |
| Power | Relative Humidity | 20%-90% |
| Operating Voltage | AC220V±10% |
| Average power consumption | 168WH |
| Max power Consumption | ≤560W/m2 |
| Current | ≤20mA (Single LED ) |
| Control system | CPU | Pentium4 or above P4 or above |
| Operate system | WIN98/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥900HZ |
| Gray/Color | 4096 gray grade, can display 16.7M clolor |
| MTBF | ≥9000hours |
| Power Switch | Automatic Switch |
| Display Mode | 800*600/1024*768 |
| High quality P3.91 indoor led display screens |
| Trade terms : | 1. Payment:T/T,30% deposits before production,70% balance to be paid before delivery . |
| 2. Shipping freight are quoted under your requests . |
| 3. Shipping port: Shenzhen,mainland China . |
| 4. MOQ:1SQM . |
| 5.Package : Wooden packing and flight packing . |
| About Technology : | 1. We provide the technology training for free, which contains the operation training and maintenance training at our factory |
| 2. We will send our engineers to your country by negotiation. |
| 3. We provide CAD drawing on how to fix up the display for free and some other expert suggestion. |
| 4. We will send our engineers to your place if we are expected after our negotiation. |
OUR COMPANY offers user-friendly products that optimize productivity and business efficiency and maintain the highest standards of design and quality. Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.
OUR COMPANY provides onsite product installation, debugging and maintenance service for our LED display. Such as:
1. After-sales service:
1) Service principles: Response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipments.
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
