Technical parameters |
S/N | Module Specification |
1 | Pixel Pitch | 5mm |
2 | Pixel Configuration | 1R1G1B |
3 | LED Type | SMD 3IN1 |
4 | LED Wavelength | R(620-630nm) IV(150-200mcd) G(520-525nm) IV(260-330mcd) B(465-470nm) IV(55-65mcd) |
5 | Pixel Density | 40000 pixel dots/s.q.m |
6 | Module Size(W X H) | 320mm x 160mm |
7 | Module Resolution( W X H) | 64 pixel dots x 32 pixel dots |
8 | Input Voltage(DC) | 5V +/- 5% |

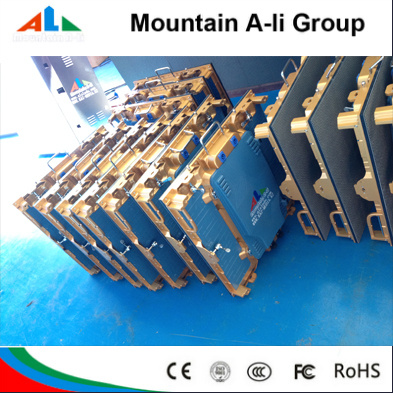

9 | Cabinet Specification |
10 | Cabinet Size(W X H) | 640mm x 640mm |
11 | Cabinet Resolution(W X H) | 128 pixel dots x 128 pixel dots |
12 | Unit Cabinet Weight | 12kg(without packaging) |
13 | Thickness | 90MM |
14 | Whole Screen Specification |
15 | Screen Brightness | Min. 1700nits/s.q.m |
16 | Driving Mode | Constant current 1/8 driving |
17 | H/V Visual Angle | 120 deg./55 deg. |
18 | Minimum Viewing Distance | 5m |
19 | Max. Power Consumption | 1500W/s.q.m |
20 | Average Power Consumption | 1000W/s.q.m |
21 | Gray Level | 4096 levels |
22 | Frame Frequency | Min. 60Hz |
23 | Refresh Frequency | Min. 400Hz |
24 | Blind Spot Rate | Max. 1/10000 |
25 | Protective Scale | IP20 |
26 | Screen Plainness | Max. +/- 1mm |
27 | Power Supply Mode | AC220 +/- 10% 50Hz/AC110 +/- 10% 60Hz |
28 | Environment Temperature & Humidity | Temperature -20 Celsius degree~+60 Celsius degree Humidity 10%~90% RH |
29 | Control System |
30 | Operating Environment | Operating system Chinese/English Windows98/me/2000/NT/XP
Hardware Configuration Pentium 300MHz or above ROM 64M Graphics Card Standard VGA 256mode or above
Related Software Microsoft Media player compulsory OFFICE2000 in case of *. doc files RealPlayer in case of RealPlayer files |
31 | Software | LED Studio |
32 | Control Mode | Synchronization display(work with computer) |
33 | Control System | DVI video card + full color control card + fiber system( optional) |
34 | Display Content | Video DVD, VCD, TV, image, texts.etc. |
35 | Interface | Standard Ethernet |
36 | Transmission Distance | CAT5 cable:<100 m; Single fiber:<10 km |
Indoor features:
1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:140 inhorizonal and 140 in vertical
3. special design and advanced SMT technology improves the heat dissipation
4. with high fresh rate controller, guarantee that no scan line when taking photos
5. regular shape and special shape(such as curve,round) can be designed
6. easy for assembleing and connection with the connector added
7. high color uniformity and clear image can bring you a vivid audio visual effect
8. both front access and rear access areavailable
Advantage :
1.Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
2.Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 16777216 kinds of colors;
3.Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
4. Good color blending: Display clear, exquisite, nature color video even at close distance;
5. Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures (BMP/JPG/GIF/PCX..) and video (MPG/MPEG/MPV/MPA/AVE/VCD/SWF/RM/RA/RMJ/ASF)
Viview led display usage range: Governmental plazas, Large-scale entertainment plazas, business and commercial centers, playground, station, airport and so on.
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
