Factory Direct Sales P5 Indoor Full Color LED Stage Display P5
Advantages:
- High resolution high precision
- Large view angle
- Easy to carry and fast installation
- Heat dissipation and long life
- Seamless tiled best results
- Competative factory price
- Leading rental screen enterprise in China famous brand
- Famous enterprise and TV corporate enterprise
Features:

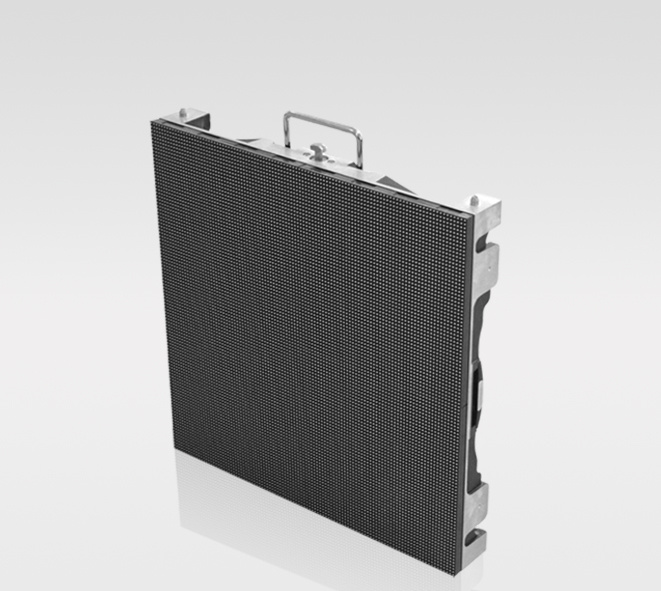

1.Super slim cabinet and maximum thickness is only 75mm.
2.Super light cabinet and it's only 12kg/pcs.
3.Different colors of back cover can be satisfied with people's demand in different feeling.
4.Use high-end 16-bit IC and rich and delicate color and refresh rate up to 3500HZ.
5.The cabinet has the fast rotating hanging lock and manual pressure tablets which can avoid
accidental collision and dropping off and connect the screen is safer.
6.Based on unique back cover of design, according to the site conditions, it can be selected a
variety of quick repairing method.
7.Cabinet is used the die-casting aluminum molding technology and beautiful and strong structure
and its flatness ≤0.5mm.
8.Using Neutrik flight connector can make sure that LED screen is connected to be faster and it
works more steadily.
9.Using DC cooling fan can effectively reduce the noise when it's used in indoors.
10.Support for stacking and hanging installation.
Technical parameters |
S/N | Module Specification |
1 | Pixel Pitch | 5mm |
2 | Pixel Configuration | 1R1G1B |
3 | LED Type | SMD 3IN1 |
4 | LED Wavelength | R(620-630nm) IV(150-200mcd) G(520-525nm) IV(260-330mcd) B(465-470nm) IV(55-65mcd) |
5 | Pixel Density | 40000 pixel dots/s.q.m |
6 | Module Size(W X H) | 320mm x 160mm |
7 | Module Resolution( W X H) | 64 pixel dots x 32 pixel dots |
8 | Input Voltage(DC) | 5V +/- 5% |
9 | Cabinet Specification |
10 | Cabinet Size(W X H) | 640mm x 640mm |
11 | Cabinet Resolution(W X H) | 128 pixel dots x 128 pixel dots |
12 | Unit Cabinet Weight | 12kg(without packaging) |
13 | Thickness | 90MM |
14 | Whole Screen Specification |
15 | Screen Brightness | Min. 1700nits/s.q.m |
16 | Driving Mode | Constant current 1/8 driving |
17 | H/V Visual Angle | 120 deg./55 deg. |
18 | Minimum Viewing Distance | 5m |
19 | Max. Power Consumption | 1500W/s.q.m |
20 | Average Power Consumption | 1000W/s.q.m |
21 | Gray Level | 4096 levels |
22 | Frame Frequency | Min. 60Hz |
23 | Refresh Frequency | Min. 400Hz |
24 | Blind Spot Rate | Max. 1/10000 |
25 | Protective Scale | IP20 |
26 | Screen Plainness | Max. +/- 1mm |
27 | Power Supply Mode | AC220 +/- 10% 50Hz/AC110 +/- 10% 60Hz |
28 | Environment Temperature & Humidity | Temperature -20 Celsius degree~+60 Celsius degree Humidity 10%~90% RH |
29 | Control System |
30 | Operating Environment | Operating system Chinese/English Windows98/me/2000/NT/XP
Hardware Configuration Pentium 300MHz or above ROM 64M Graphics Card Standard VGA 256mode or above
Related Software Microsoft Media player compulsory OFFICE2000 in case of *. doc files RealPlayer in case of RealPlayer files |
31 | Software | LED Studio |
32 | Control Mode | Synchronization display(work with computer) |
33 | Control System | DVI video card + full color control card + fiber system( optional) |
34 | Display Content | Video DVD, VCD, TV, image, texts.etc. |
35 | Interface | Standard Ethernet |
36 | Transmission Distance | CAT5 cable:<100 m; Single fiber:<10 km |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect

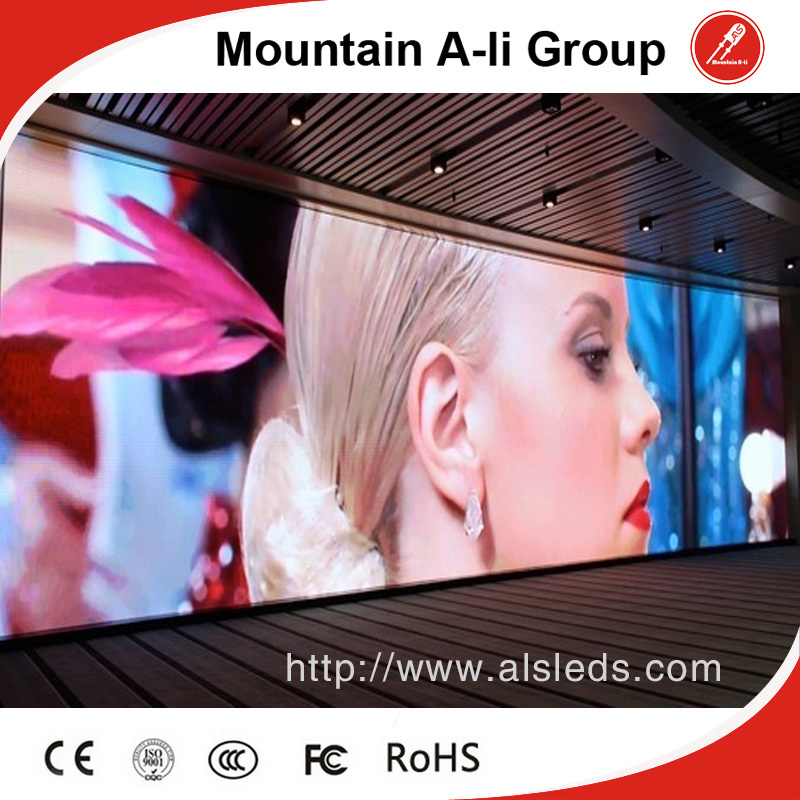

Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
