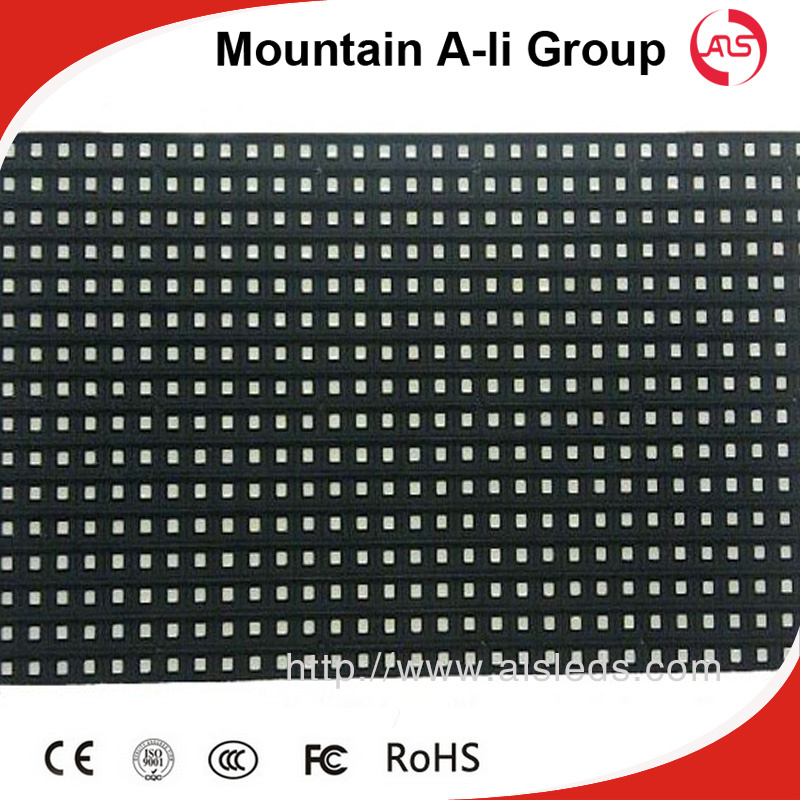

Waterproof High Brightness SMD P10 Outdoor Led Screen
| The specifications of modules |
|
| Items | Parameter |
| Product Model | P10 outdoor surface mounted module |
| Module size | 320mm*160mm 256*128 |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B 3in1 |
| Module resolution | 40dots*20dots 32dots*16dots |
| Module maximum power consumption | 25W |
| Module Thickness | 2.8CM |
| Module Weight | 0.55kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/5 Scan 1/4 scan |
| Interface | HUB75 |
| Brightness | ≥6200cd/m2 6500cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 640mm*640mm |
| Module quantity | 8pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 80*80dots |
| Optimal viewing distance | 8M~50M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+50°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 400W/H |
| Maximum power consumption | ≤800W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
|
|
Features:
1) With good lightening accordance and no mosaic
2) Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 5-12 working days
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
