Product Description
1. Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
2. 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
3. Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
4. Line-Double technology is adopted for the picture adjustment.
5. Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
Hot product P7.62 indoor stage led display is usually the most cost-effective among indoor peer and have shown substantially stable quality in the past years.
Product Advantages
1. Price Advantage: Best competitive price of the market.
2. Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle...
3. Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
4. Service advantage: with professional service team for 24 hours service!
Item | Parameter |
| Product model | P7.62-8S |
| Module size | 244mm*244mm |
| Pixel pitch | 7.62mm |
| Pixel density | 17222dots/m2 |
| Pixel configuration | smd 3in1 |
| Module resolution | 32dots(W)*16dots(H) |
| Maximum power consumption | 15W |
| Module thickness | 15mm |
| Module weight | 0.45kg |
| Driving method | Constant current driving |
| Scan mode | 1/8 scan |
| Interface type | HUB 75 |
| Brightness | ≥ 1700cd/m2 |
| The specifications of cabinet |
|
| Cabinet size | 976mm*976mm |
| Module quantity | 16pcs |
| Power supply | 5V/40A *2pcs |
| Cabinet resolution | 128*128dots |
| Optimal viewing distance | 8m ~ 50m |
| Optimal viewing angle | 160°(W) 120°(H) |
| System operating humility | 10%-95% |
| The specifications of power supply |
|
| Operating voltage | AC220V±10% |
| Average power consumption | 280W/ m2 |
| Maximum power consumption | ≤ 400W/ m2 |
| Current | ≤20mA(single LED) |
| The specifications of control system |
| Computer | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization control |
| The specifications of the main technical parameters |
|
| Driving device | Constant current driving |
| Refresh rate | ≥400Hz |
| Grey scale | RGB each 256 grade, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display mode | 800*600/1024*768 |
Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:

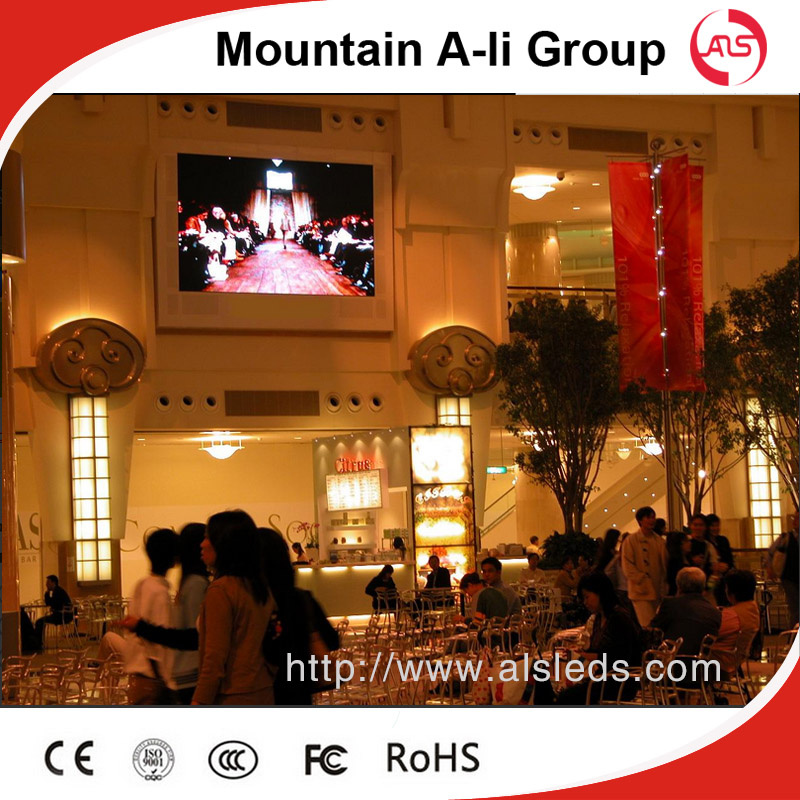

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
