Our Features
1. Good price
Our price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management.
2. Light weight
Aluminum cabinet greatly saving freight cost and conveniently installing.
3. Stable performance
Our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot
rate less than 0.0001. MTBF more than 10000 hours.
4. Best quality LED chip tube
The GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan.
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
6. Quality insured by CPIC and 2-year QA.
Products list
1. P3\P4\P5\P6\P7.62 Indoor Full Color Led Display;
2. P6/P7/P8 /P10/P12//P16/P20/Outdoor Full Color Led Screen
Why choose us :
1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system, best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system
Application Case:
P10 outdoor full color led module
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
P10 outdoor LED display screen technical parameter : |
| Unit Module | Item | parameter |
| Model | P10 FULL Color Led Module |
| Module size | 160mm*160mm |
| Pixel Pitch | 10mm |
| Pixel Density | 10000dots/m2 |
| Pixel Configuration | 1R1G1B |
| Module Resolution | 16dots(W)*16dots(H) |
| Max power | 20w |
| Module Thickness | 25cm |
| Module Weight | 0.5kg |
| Driving Method | Constant Current Driving |
| Scan Method | 1/4 scan |
| Interface Way | HUB75 |
| Brightness | ≥7500cd/m2 |
| Unit Module | Cabinet Size | 960mmx960mm |
| Cabinet Composing | 36pcs |
| Power supply Mode | 5V/40A 5V/60A |
| Cabinet Resolution | 96*96dots |
| Optimal Viewing Distance | 10M-50M |
| Optimal Viewing angle | 160°(W)120°(H) |
| Enviroment Temperature | Storage :-35ºC-+85ºC
work :-20ºC-+50ºC |
| Power | Relative Humidity | 10%-95% |
| Operating Voltage | AC220V±10% |
| Average power | 350W/H |
| Max power Consumption | ≤700W/m2 |
| Current | ≤20mA (Single LED ) |
| Control system | Computer | Pentium4 or above P4 or above |
| Operate system | WIN98/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥600HZ |
| Gray/Color | RGB each 256 grade, can display 16.7M clolor |
| MTBF | ≥9000hours |
| Power Switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1024*900 |

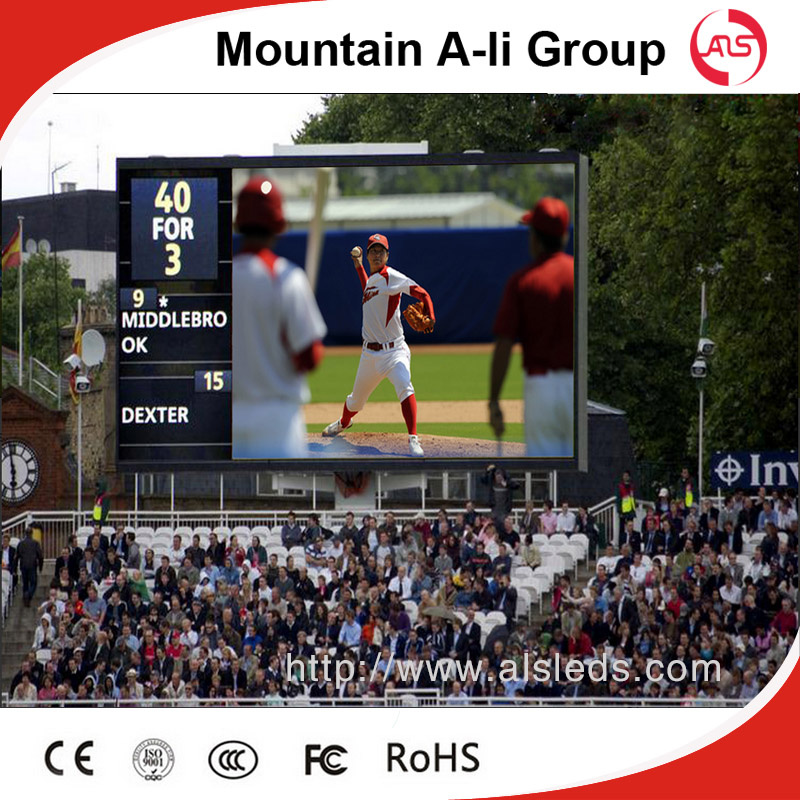

| P10 outdoor LED display screen |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
