Product Description

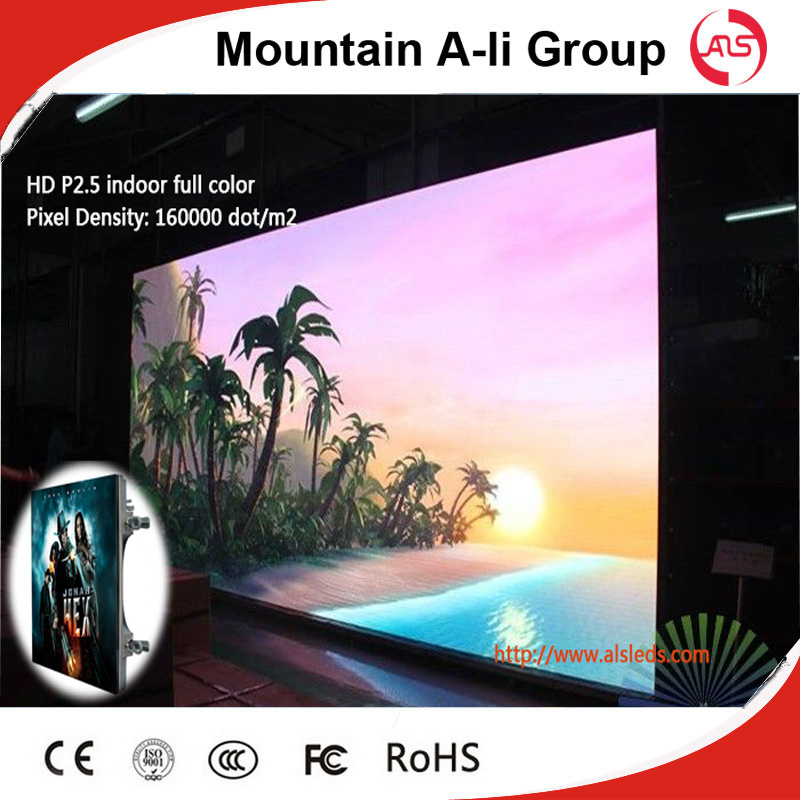

Digital Advertising P2.5 Indoor LED video display
Outdoor Full Color LED Display (P6 advertising LED Display Screen)/LED sign/LED wall
Product list
1. P2/P2.5/P3/P3.91/P4/P4.81/P5/P6/P7.62/P10 Indoor Full Color Led Display;
2. P6/P7/P8 /P10/P12/P13.33/P16/P20 Outdoor Full Color Led Screen
Specification
The specifications of modules |
|
|
| Items | Parameter |
|
| Product Model | P2.5 Full Color Led Module |
|
| Module size | 240mm*120mm*10mm |
|
| Pixel pitch | 2.5mm |
|
| Pixel density | 160000dots/m2 |
|
| Pixel configuration | 1R1G1B |
|
| Module resolution | 96dots(W)*48dots |
|
| Module maximum power consumption | 20W |
|
| Module Thickness | 2.5CM |
|
| Module Weight | 0.21kg |
|
| Driving method | Constant Current Driving |
|
| Scanning method | 1/24scan |
|
| Interface | HUB75E |
|
| Brightness | ≥1000cd/m2 |
|
| The specifications of cabinets |
|
|
| Cabinet size | 480mm*480mm |
|
| Module quantity | 8pcs |
|
| Power supply | 5V/40A 5V/60A |
|
| Cabinet resolution | 192*192dots |
|
| Optimal viewing distance | 2M~10M |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| RHWorking temperature | (Work :-20°C~+60°C) |
|
| System operating humility | 10%-95% |
|
| The specifications of power supplier |
|
|
| Operating Voltage | AC220V±10% |
|
| Average power consumption | 200W/H |
|
| Maximum power consumption | ≤300W/m2 |
|
| Electric current | ≤20mA(single LED) |
|
| The specifications of control card |
|
| Control Panels | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization with PC |
|
| The specifications of the main technical parameters |
|
|
| Driving device | Constant Current Driving |
|
| Refresh rate | ≥600HZ |
|
| Grey scale | RGB Each 256, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic Switch |
|
| Display Mode | 800*600/1024*768/1280*900 |
|
Our service
(1)With professional service team for 24 hours service! Rich advertising LED display engineering experience both in domestic and oversea market .
2)Experienced staffs answer all your query in fluent English
3)Customized design is available, OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well- trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7)Warranty: 1-3 years.according different order, and to provide free technical guidance.
Trade terms : | 1. Payment:T/T,30% deposits before production,70% balance to be paid before delivery . |
| 2. Shipping freight are quoted under your requests . |
| 3. Shipping port: Shenzhen,mainland China . |
| 4. MOQ:1SQM . |
| 5.Package : Wooden packing and flight packing . |
About Technology : | 1. We provide the technology training for free, which contains the operation training and maintenance training at our factory. |
| 2. We will send our engineers to your country by negotiation. |
| 3. We provide CAD drawing on how to fix up the display for free and some other expert suggestion. |
| 4. We will send our engineers to your place if we are expected after our negotiation. |
Transportation
Customers can freely choose box also the shipping way, by air, by sea or by train. We have professional freight forwarders, on the transportation we will not earn customers one penny of profit. Of course customers also could use your own freight forwarders, we will to fully cooperate with you.
If you want to place an order , Could you let me kown?:
1. The width and height of your screen?
2. Cabinet material: iron, aluminum, rental or die-casting aluminum?
3. Package, wooden case or Flight case?
4. Some other special request.
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
