Mountain A-Li Group Electronic Company
Professional development manufacturing LED display system products and lighting products, was founded in 2000, own workshop area 20000 m2, branch office and agents cover all over China, with about 300 employees.
Products list
1. P3\P4\P5\P6\P7.62\P10 Inndoor Full Color LED Display;
2. P6/P7/P8 /P10/P12//P16/P20/Outdoor Full Color LED Screen
Why choosed us:
1. Price Advantage: No. 1 cost effective
2. Quality advantage: Serious QC control system, best material
3. Service advantage: After service dept& Tech Dept. Perfect after sales system
1: High brightness, over 8000nits by using Epistar big LED chip from Taiwan;
2: High color output: 16 bit color so the video, images shown on the LED screen is very fresh and vivid. It catches the eyes of more audiences, making your advertising very effient.
3. High refresh rate: Over 3000Hz/S; When you take photoes or video, no scaning lines.
4. High waterproof function: IP65 front and IP54 back. Our cabinet backdoor has special cover, no need make additional frame to protect waterproof from the rear side.
5. It has CE, FCC and CCC certificate, good for export
7. It can work under -25 degree by adopting low-temperature power supply
8. We offer 2 years warranty
9. The price is very good, please contact us for an offer. You can compare and know!
We react in 1 day, our sales will submit a good proposal based on your project, welcome to send an inquiry and visit our factory in Shenzhen, China
| The specifications of modules |
|
| Items | Parameter |
| Product Model | P10 Full Color Led Module |
| Module size | 160mm*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W)*16dots |
| Module maximum power consumption | 20W |
| Module Thickness | 25CM |
| Module Weight | 0.55kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/4 scan |
| Interface | HUB75 |
| Brightness | ≥7500-8000cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 960mm*960mm |
| Module quantity | 36pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10M~100M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤700W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:

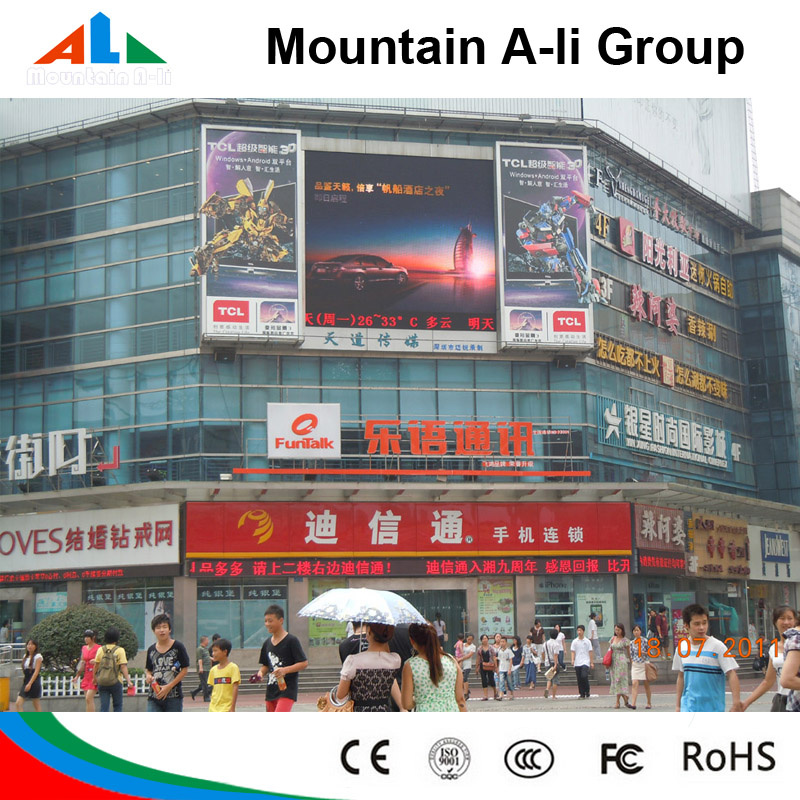

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
