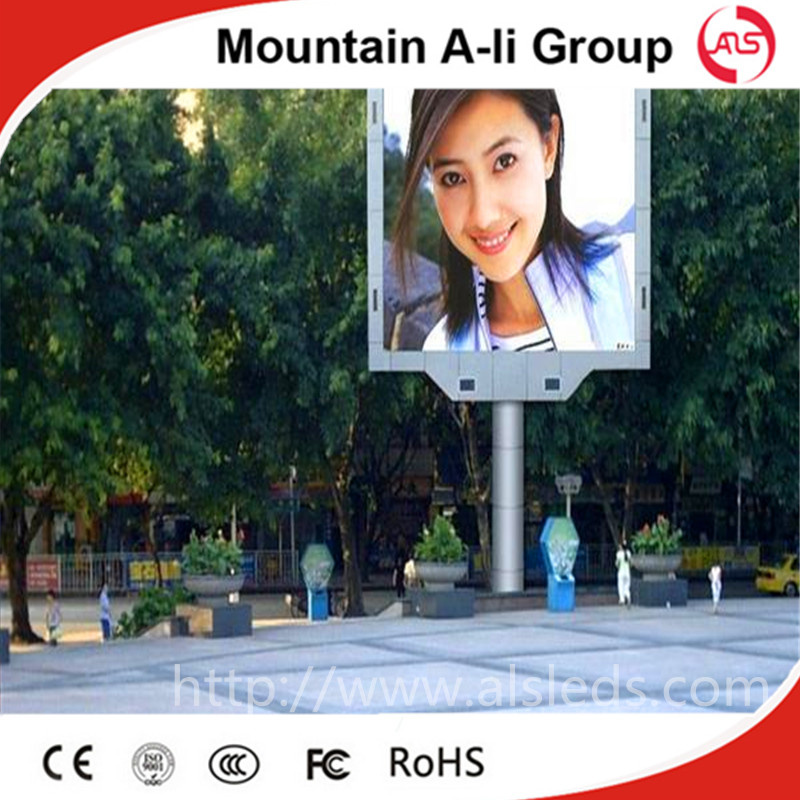

Factory Hot Sale P6 Outdoor Full Color LED Display

Factory Hot Sale P6 Outdoor Full Color LED Display

1.Features:

1).High brightness,high refresh,the giggest advantage of a comprehensive reflection of outdoor HD LED display.

2). With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.

3). Waterproof design, completely outdoor use.

4). Easy for assembling and connection with the connector added.

5). High color uniformity and clear image can bring you a vivid audio visual effect.

6). Both front and rear access are available.

7). Good LED Chips, with large viewing angle, lowe power consumption and good color uniformity.

8). Easy for maintenance.

9). Good quality raw material, accurate technique and careful inspection insures the high quality of led display.

10). Different shape and size can be made according to your requirement.

Module:P10		LED Type	1R1G1B
Pixel Pitch	8mm	Refresh frequency	600Hz
Module Size	192x192mm	View Angle	160°(W) 120°(H)
Module resolution	32x32pixel	Working Environment	Temp:-20°C~+50°C, Humidity:10%~90%
Dot density	27,777pixel/sq. m	Working Voltage	AC:100V~120V AC:220~240V
Pixel configuration	1R1G1B in 1	Lifetime	100,000Hours
The best view distance	5-50M	Gray Scale	RGB each 256 grade
Cabinet dimension	768mx768mm(Optional)	Color Display	16.7million
Cabinet resolution	128x128dots	Brightness	≥6000nits
Cabinet weight	60KG/sq. m	MTBF	≥9,000hours
Drive mode	Constant current,1/8 Scan	IP	IP65
Max Power Consumption	≤560W/sq. m	Warranty	2 years
LED Parameter	R:d(625-630nm) R:IV(400-450mcd)	G:d(522.5-525nm) G:IV(1800-2200mcd)	B:d(467.5-470nm) B:IV(350-400mcd)
Image adjustment	Brightness, contrast, tone, color range etc
Brightness uniformity	Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	Cat 5<100M / Multi-mode fiber:<500M / Single-mode fiber<20Km
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable
Input signal	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control system	Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional)

2.Our service

1). Your inquiry related to our products or price will be replied in 24hrs
2). OEM&ODM, any your customized lightings we can help you to design and put into product
3). Distributorship are offered for your unique design and some our current models
4). Protection of your sales area, ideas of design and all your private information
5). Top quality+Reasonable price+Responsible After Service=Successful & Win

3.Trade Terms

1). Package: Anti-shaking wooden package, Air flight case or Carton package
2). Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3). Shipping freight are quoted under your requests
4). Shipping port: Shenzhen, Mainland China
5). Warranty time: 2 years
6). Delivery time: 3-12 working days
