Norminal Wattage:
65W
Norminal Voltage:
AC 100-240V / DC 24V
Maximum Current:
AC 0.67A-120V 0.33A-240V /DC 3.01A-24V
Power Factor (Pf):
More Than 0.9
Driver Efficiency:
More Than 90%
Lumen Output (3000-4500k):
5525 Lm (+ / - 5%)
Lumen Output (5000-6500k):
5850 Lm (+ / - 5%)
CRI:
at Least 75
Cct:
3000-3500k, 4000-4500k, 5000-5500k, 6000-6500k
Heat Raditor:
Anodized Aluminum
Color Temperature:
Cool White
Lamp Body Material:
Aluminum Alloy
Power:
60-100w
Application:
Highway
IP Rating:
IP65
Certification:
RoHS
With Light Source:
With Light Source
LED Chips Brand:
Bridgelux
Power Supply:
AC or DC
Input Voltage:
100V-240V; DC 24V
Product Description
Description:

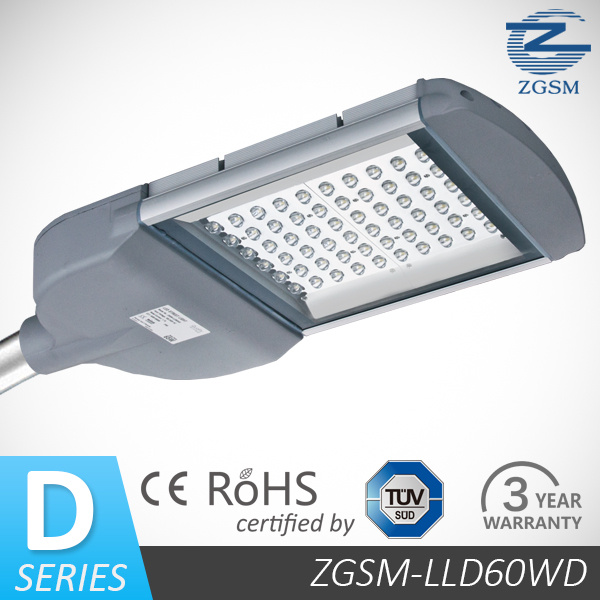

ZGSM D series high power LED street light are designed for use in sport field, city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
Competitive Advantage:
1.High Quality and Brightness LED Light Source 2.Stable and Efficient LED Driver 3.Optimal Heat Sinking Performance 4.Superior Optical Design 5.Exclusive Appearance Design with Patents 6.Significant energy savings 7.Instant on/off 8.Maintenance free 9.Mercury free 10.Superior light quality 11.No UV 12.Simple installation 13.Wide input: 100 - 240V AC 14.Resistant to shock and vibration 15.Temperature compensation technology for long life 16.Copper free aluminum 17.Superior Vision-Care
Specifications
Model
ZGSM-LD60WD
LED Brand
Bridgelux Chips
Driver Brand
Meanwell Driver
Norminal Wattage
LED power:60W Total power:65W
LED Quantity
60pcs
Input Voltage
100-240VAC/DC24V
Power Efficiency
>90%
Power Factor
>0.95
Lamp Rated Luminous Efficiency
>95lm/w
Lamp Rated Lumen output
5850 lm (Lumen tolerance +/- 5%)
Color Rendering Index
Ra>75
Color Temperature
3000-3500 or 5000-5500 or 6000-6500K
Photometric Type
Type I Short
Optimal Operating Temperature
25°
Storage Temperatures
-40°C~50°C
Working Environment
Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
< 10%
Lumen Maintenance
> 50000 hours -L70, @25 ºC (77 ºF)
Wind Index
Force 12
Body and Shell Materials
Anodized Aluminum
IP Rating
IP65 with test report
Certification
CE,ROHS
Optional Function
1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty
3 years
Packing Details
Fixture Dimension
624 x326 x109 mm
Fixture Weight
8.5 kg /18.7 lbs
Packing Dimension
680 x375 x155 mm
Packing Weight
9.5 kg /20.9 lbs
