North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source:
LED Light
Working Lifetime(Hour):
100, 000 Hours
Lens:
PC -Primary, Toughened Glass -Secondary
Warranty(Year):
5 Years
Ik Rating:
Ik 10
Fixture Dimension:
796 X316 X136 mm
Fixture Weight:
9.9 Kg /21.8 Lbs
Packing Dimension:
855X370 X200 mm
Packing Weight:
11.6 Kg /25.6 Lbs
Power Supply:
AC
Color Temperature:
Cool White
Lamp Body Material:
Aluminum Alloy
Application:
Garden
IP Rating:
IP66
Certification:
Dlc, CB, TUV Mark
With Light Source:
With Light Source
LED Chips Brand:
Philips Lumileds
Power:
200W
Input Voltage:
100-240V/277V, 347V, 480V AC
Product Description

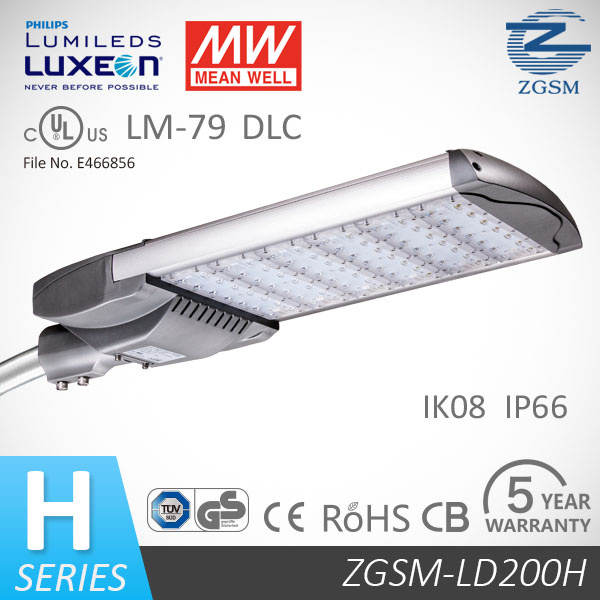

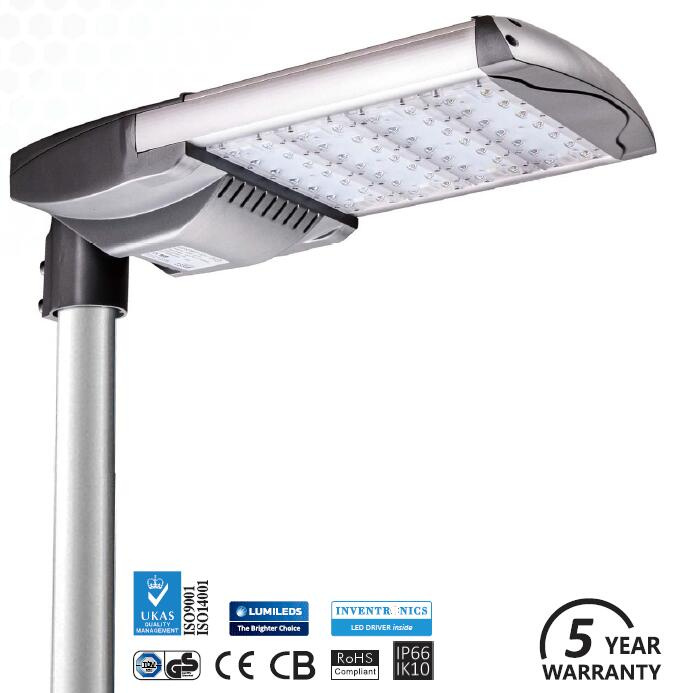

ZGSM H2 series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
All of ZGSM's long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.
Major advantages of our H Series LED street light:
1. PHILIPS LUXEON T luminous source with LM-80 report.
2. High Reliable Inventronics or Meanwell driver with 5 Years Warranty.
3. Over then 67,000 hours operation lifetime.
4. Have TypeI Medium,TypeII Medium ,TypeIII Mediumand TypeV Short four Photometric Types suitable to different road conditions.
5. IK08&IP66.
6. Have ROHS, CE, GS, CB, TUV Mark certificated..
7. Patent product with 7 patent certificates.
8. 5 years Warranty. 9. Wide voltage Input: 100-240V/277V, 347V, 480V AC
Specifications
Model
ZGSM-LD240H2
LED Brand
Philips LUXEON® TX
Driver Brand
Inventronics
Norminal Wattage
200W
LED Module Quantity
6 modules
Input Voltage
200-240V /277V AC
Power Efficiency
>90%
Power Factor
>0.95
Lamp Rated Luminous Efficiency
>110lm/w
Lamp Rated Lumen output
26400 lm (Lumen tolerance +/- 5%)
Color Rendering Index
Ra>70
Color Temperature
4000 5000 or 5700K
Photometric Type
Type I Medium;Type II Medium;Type III Medium,TypeV,Short
Optimal Operating Temperature
25°
Storage Temperatures
-40°C~50°C
Working Environment
Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
< 10%
Lumen Maintenance
> 100,000 hours -L70, @25 ºC (77 ºF)
Wind Index
Force 12
Body and Shell Materials
Anodized Aluminum
IP Rating
IP66 with test report
IK Rating
IK10 with test report
Certification
CE,ROHS,GS,CB,LM-79
Optional Function
0-5V DC or 0-10V DC or PWM Signal or Timer
Timer/Photocell Control
Warranty
5 years
Packing Details
Fixture Dimension
796 x316 x136 mm
Fixture Weight
9.9 kg /21.8 lbs
Packing Dimension
855x370 x200 mm
Packing Weight
11.6 kg /25.6 lbs

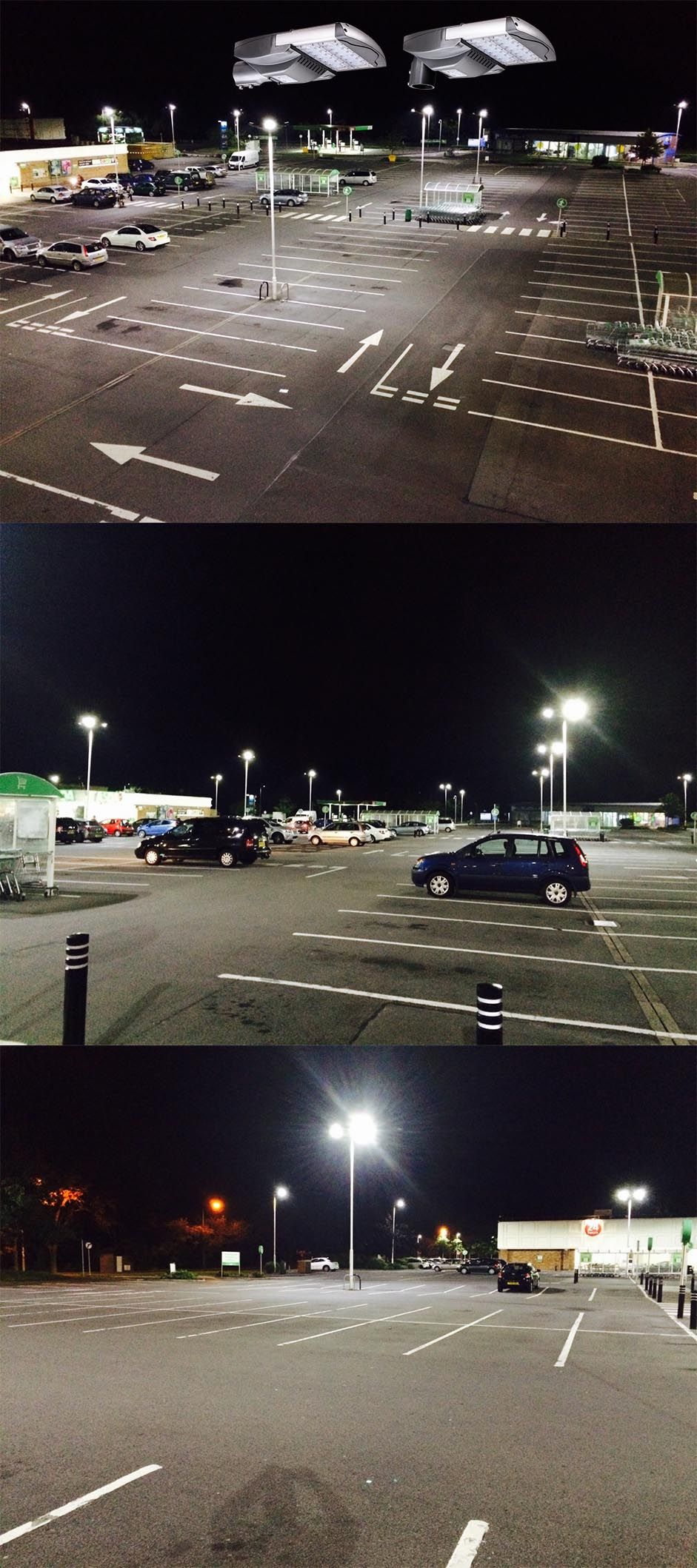

Project in UK:
Series-H2 street light/ ZGSM-LD80H2/3M optic lens /5700K 3pcs for each 8m height pole.
