North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Life:
50, 000h
Power Source:
AC
Electric Current Type:
AC
Emitting Color:
White
Base Material:
Aluminum
Diffuser:
Tempered Glass
Color Temperature:
Pure White
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65
Certification:
RoHS
Beam Angle:
105
Power:
75W
Usage:
Warehouse, Room
Product Description

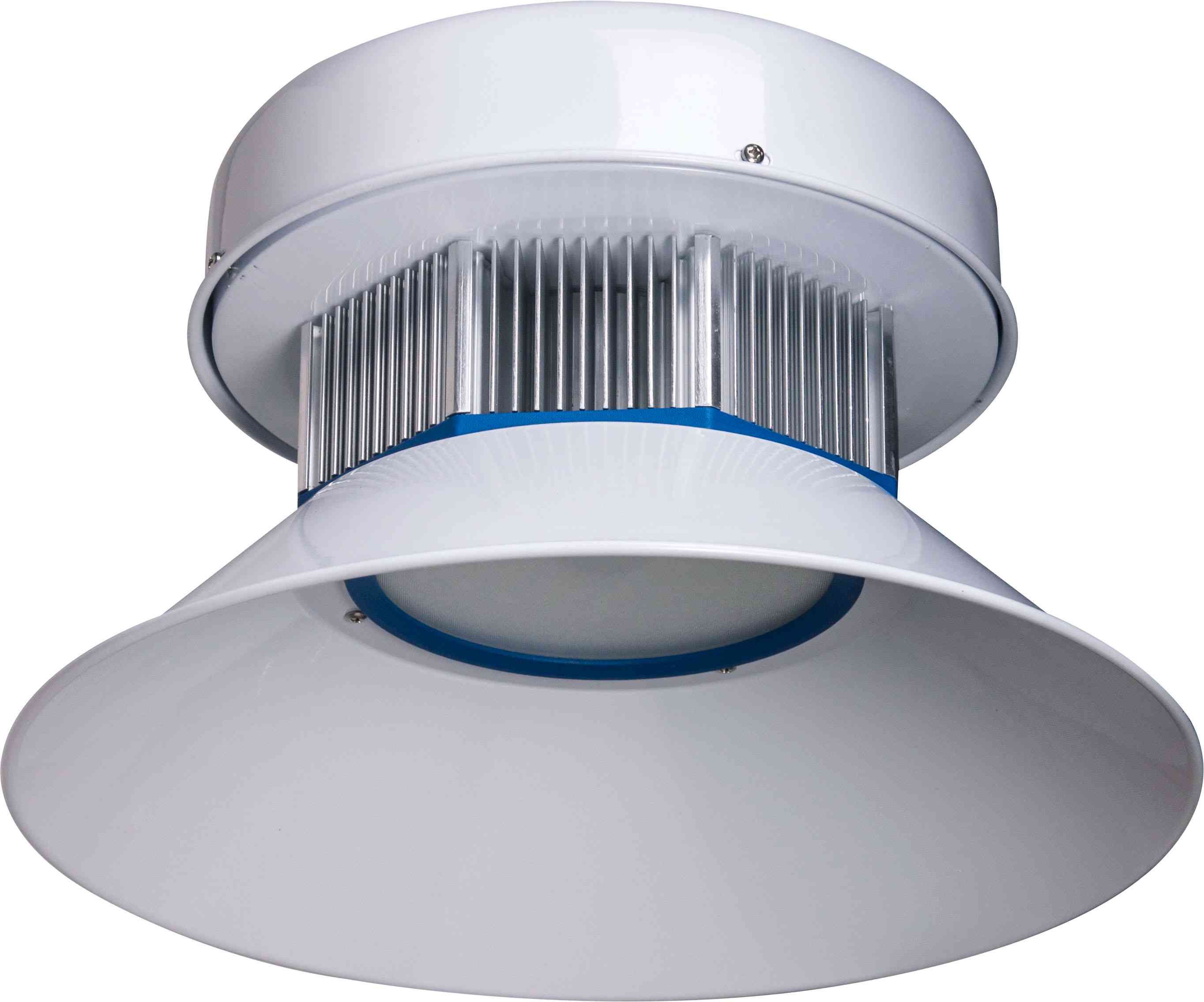

I Series high bay lights:
1.PHILIPS LUMILEDS leds; 2. INVENRONICS High-end programmable EBD Series LED driver; 3. Five years warranty; 4. High luminous efficiency: 100LM/W; 5. Simple ring structure design, easy for suspended mounting; 6. Wide application: workshop, warehouse, gas station etc. 7. Dimming Function: 0-5V, 0-10V, PWM, Timer.
Specifications
Model
ZGSM-GCD75I
LED Brand
PHILIPS LUMILEDS
Driver Brand
INVENTRONICS®EBD SERIES
Norminal Wattage
75W
Input Voltage
200-240/277VAC
Power Efficiency
>90%
Power Factor
>0.95
Lamp Rated Luminous Efficiency
>100lm/w
Lamp Rated Lumen output
7,500 lm (Lumen tolerance +/- 5%)
Color Rendering Index
Ra>70
Color Temperature
3000K, 4000K, 5000K or 5700K
Photometric Type
105 degrees
Optimal Operating Temperature
25ºC
Storage Temperatures
'-40ºC~+70ºC
Working Environment
Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
< 10%
Lumen Maintenance
> 100,000 hours -L70, @25 ºC (77 ºF)
Body and Shell Materials
Anodized Aluminum
IP Rating
IP65 with test report
Certification
CE,ROHS
Optional Function
0-5V, 0-10V DC or PWM Signal
Timer
Warranty
5 years
Packing Details
Fixture Dimension
382 x382 x288 mm
Fixture Weight
4.7 kg / 10.4 lbs
Packing Dimension
420 x420 x275 mm
Packing Weight
6.1 kg /13.4 lbs
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.
Company Information
Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
ZGSM Research
ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.
Customer and Partner Experience
ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.
Our Values
Through innovative, reliable products and services; Talented people; A responsible approach to business and global citizenship; And collaboration with our partners and customers, ZGSM is taking the world in a premium lighting experience.
