Light Source:
LED Light
Model No.:
Zgsm-Ld60d2
Fixture Dimension:
494 X326 X109 mm
Fixture Weight:
6.5 Kg
Packing Dimension:
550 X375 X155 mm
Packing Weight:
7.5 Kg
Power Supply:
AC
Color Temperature:
Cool White
Lamp Body Material:
Aluminum Alloy
Application:
Garden
IP Rating:
IP66
Certification:
Dlc, CB
With Light Source:
With Light Source
Power:
60W
Input Voltage:
100-240V/277V/347V/480V
LED Chips Brand:
LG

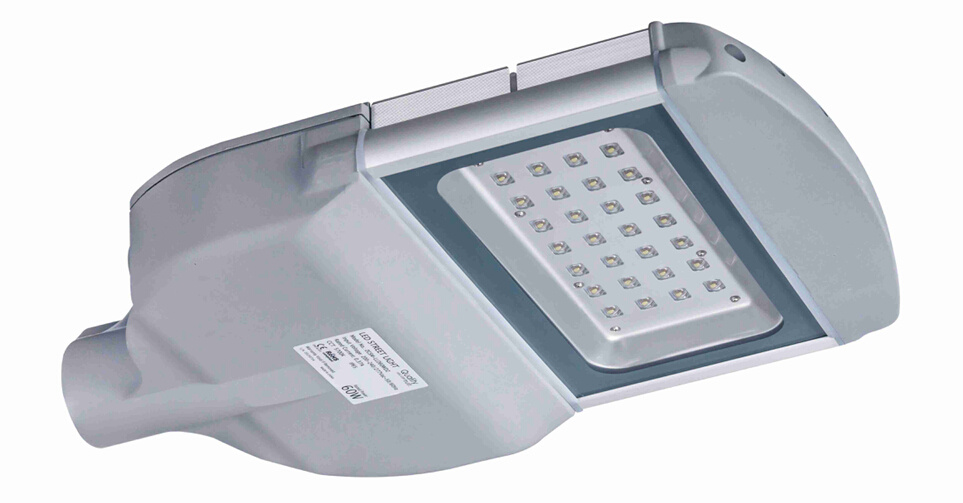

Product Description
Major advantages of our H Series street light: 1. LG leds; Inventronics driver. 2. Five years warranty. 3. 100, 000 hours life span. 5. Have CE, RoHS approved. 7. High luminous efficiency: 105LM/W 6. IP66. 7.Very competitive price!
Specifications
Model
ZGSM-LD60D2
LED Brand
LG
Driver Brand
INVENTRONICS
Norminal Wattage
60W
LED Module Quantity
1 module
Input Voltage
INVENTRONICS
Power Efficiency
>90%
Power Factor
>0.95
Lamp Rated Luminous Efficiency
>105lm/w
Lamp Rated Lumen output
6300 lm (Lumen tolerance +/- 5%)
Color Rendering Index
Ra>70
Color Temperature
4000 5000 or 5700K
Photometric Type
Type II Medium
Optimal Operating Temperature
25°
Storage Temperatures
-40°C~50°C
Working Environment
Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
< 10%
Lumen Maintenance
> 100,000 hours -L70, @25 ºC (77 ºF)
Wind Index
Force 12
Body and Shell Materials
Anodized Aluminum
IP Rating
IP66
Certification
CE,ROHS
Optional Function
0-5V DC or 0-10V DC or PWM Signal or Timer
Timer/Photocell Control
Warranty
5 years
Packing Details
Fixture Dimension
494 x326 x109 mm
Fixture Weight
6.5 kg
Packing Dimension
550 x375 x155 mm
Packing Weight
7.5 kg
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.
Company Information
Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
ZGSM Research
ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.
Customer and Partner Experience
ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.
Our Values
Through innovative, reliable products and services; Talented people; A responsible approach to business and global citizenship; And collaboration with our partners and customers, ZGSM is taking the world in a premium lighting experience.
