North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source:
LED
Lens:
PC -Primary, Toughened Glass -Secondary
Driver Efficiency:
> 90%
Working Lifetime(Hour):
10, 0000 Hours
Power Supply:
AC
Color Temperature:
Warm White
Lamp Body Material:
Aluminum Alloy
Application:
Garden
IP Rating:
IP66
Certification:
Dlc, CB
With Light Source:
With Light Source
LED Chips Brand:
Philips Lumileds
Power:
230W
Input Voltage:
100-240V, 277V, 347V, 480V AC
Product Description

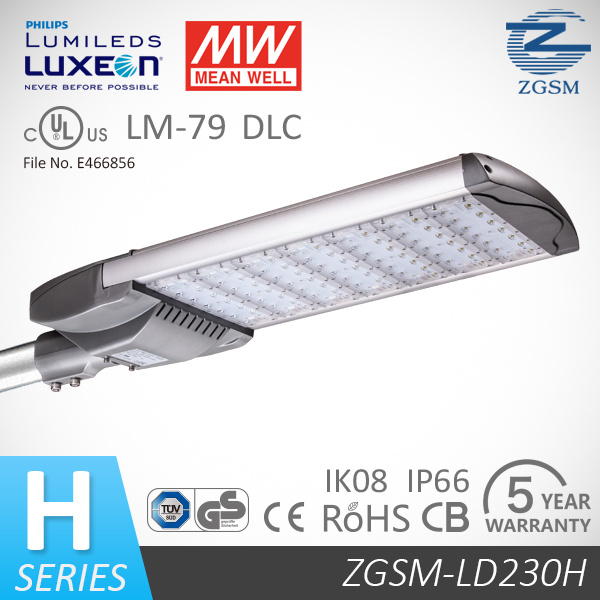

ZGSM H series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
Features: 1. LED's maintain flux is up to 110 lm/w 2. Significant energy savings 3. Instant on/off 4. Maintenance free 5. Mercury free 6. Superior light quality 7. No UV 8. Simple installation 9. Wide input: 100-240V, 277V, 347V, 480V AC 10. Resistant to shock and vibration 11. Temperature compensation technology for long life 12. Copper free aluminum 13. Superior Vision-Care
Specifications
Model
ZGSM-LD230H
LED Brand
PHILIPS LUXEON® T
Driver Brand
Meanwell HLG series
Norminal Wattage
230W
LED Module Quantity
6 modules
Input Voltage
100-240V, 277V, 347V, 480V AC
Power Efficiency
>90%
Power Factor
>0.95
Lamp Rated Luminous Efficiency
>110lm/w
Lamp Rated Lumen output
25300 lm (Lumen tolerance +/- 5%)
Color Rendering Index
Ra>70
Color Temperature
4000 5000 or 5700K
Photometric Type
Type I Medium;Type II Medium;Type III Medium; TypeV,Short
Optimal Operating Temperature
25°
Storage Temperatures
-40°C~50°C
Working Environment
Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
< 10%
Lumen Maintenance
> 67000 hours -L70, @25 ºC (77 ºF)
Wind Index
Force 12
Body and Shell Materials
Anodized Aluminum
IP Rating
IP66 with test report
IK Rating
IK08 with test report
Certification
CE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Optional Function
1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty
5 years
Packing Details
Fixture Dimension
796 x316 x136 mm
Fixture Weight
9.9 kg /21.8 lbs
Packing Dimension
855x370 x200 mm
Packing Weight
11.6 kg /25.6 lbs
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.
Company Information
Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
ZGSM Research

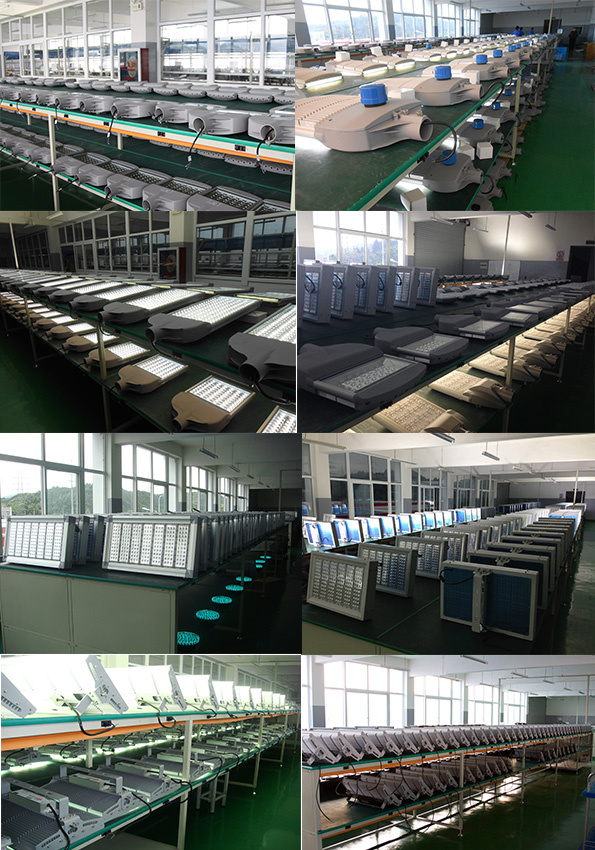

ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.
Customer and Partner Experience

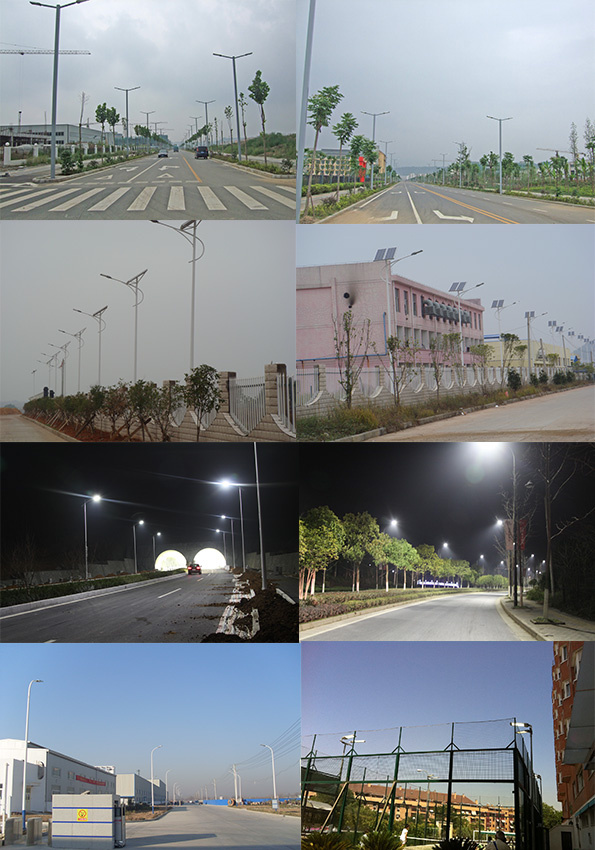

ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.
Our Values
Through innovative, reliable products and services; Talented people; A responsible approach to business and global citizenship; And collaboration with our partners and customers, ZGSM is taking the world in a premium lighting experience.
