UL File:
E466856
Nominal Wattage:
65W
Ik:
Ik08
Nominal Voltage (AC):
100-240V/277V, 50/60Hz
Nominal Voltage (DC):
24V
IP Rating:
IP66
LED Chips Brand:
Philips Lumileds
Lamp Body Material:
Aluminum
With Light Source:
With Light Source
Application:
Square, Highway, Garden, Municipal Road
Certification:
CE, EMC, Energy Star, FCC, GS, RoHS, SAA, Saso, UL
Color Temperature:
3800-4100k;5000-5650k;5650-6300k
Input Voltage:
100-240V/277V
Power:
65W
Power Supply:
AC or DC
Product Description

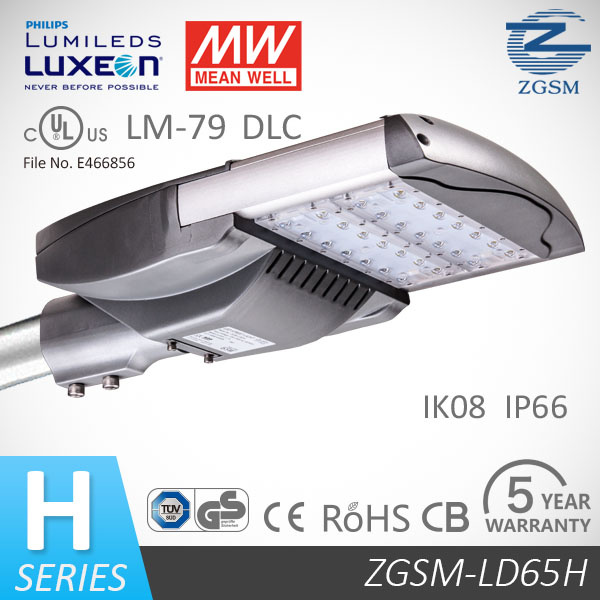

Major advantages of our H Series street light:
1. PHILIPS LUXEON® ES luminous source with LM-80 report. 2. High Reliable MEANWELL® HLG driver with 5 Years Warranty. 3. Over than 67, 000 hours operation lifetime. 4. Have TypeI, TypeII and TypeIII three Photometric Types suitable to different road conditions. 5. IK08&IP66. 6. Innovative pole tter not only with the horizontal and vertical installation features 15° Adjustable function for each installation direction. 7. Have UL, DLC, RoHS, CE, GS, CB certificated... 8. 5 years Warranty
Datasheet
Electrical Specifications
Nominal Wattage
65W
Nominal Voltage (AC)
100-240V/277V, 50/60Hz
Nominal Voltage (DC)
24V
Maximum Current (AC)
0.67A-120V, 0.33A-240V, 0.29A-277V
Maximum Current (DC)
3.01A-24V
Optimal Operating Temperature
- 40 ºC to 50 ºC
Operating Humidity
10% to 90%
Power Factor (PF)
>0.9
Driver Efficiency
>90%
Photometric Specifications
Correlated Color Temperature (CCT)
3800-4100K, 5000-5650K, 5650-6300K
Lumen Output
6175 lm ( +/- 5% )
Photometric Type
1S, 2M, 3M, 5S
Color Rendering Index (CRI)
≥70 ( +/- 5 )
Mechanical Specifications
Ratings
IP66, IK08
Lumen Maintenance
>67000 hours -L70, @25ºC(77ºF)
Housing
Die-casting Aluminum
Heat Raditor
Anodized Aluminum
Lens
PC
Fixture Dimension
504 x 316 x 136 mm / 19.8 x 12.4 x 5.4 inches
Fixture Weight
6.1 kg / 13.4 lbs
Aperture Diameter
Φ60 mm / Φ2.4 inches
Packing Informations
Packing Type
1 unit / ctn
Packing Dimension
555 x 370 x 200 mm / 21.9 x 14.6 x 7.9 inches
Packing Weight
7.3 kg / 16.1 lbs
