North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Life:
50,000 Hours
Power Source:
AC Optional
Electric Current Type:
AC Optional
Emitting Color:
Full Range
Usage:
Street
Base Material:
Aluminum
Diffuser:
Tempered Glass
Power Supply:
AC
Lamp Body Material:
Aluminum Alloy
Application:
Garden
IP Rating:
IP68
Certification:
CE/RoHS/FCC/ISO/UL
With Light Source:
With Light Source
Color Temperature:
3000-3500k, 4000-4500k, 5000-5500k, 6000-6500k
Power:
120W
Input Voltage:
90~277VAC, 12/24VDC
LED Chips Brand:
Bridgelux or Epistar
Product Description

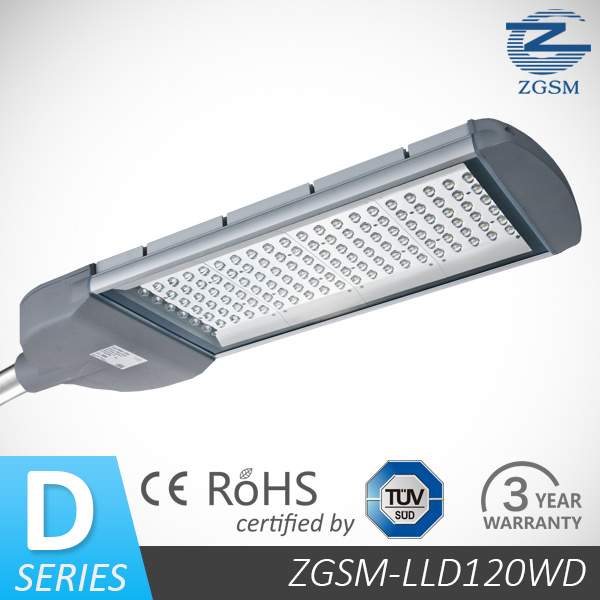

Description ZGSM D Series LED Street Lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
All of ZGSM's long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.
Features
1
No UV
12
Significant energy savings
2
Long life
13
Wide input:100 - 240V AC
3
Waterproof
14
Stable and efficient LED driver
4
Instant on/off
15
Significantly less generated heat
5
Mercury free
16
Resistant to shock and vibration
6
Maintenance free
17
Optimal heat sinking performance
7
Improved visibility
18
LED's maintain flux up to 100 lm/W
8
Ease of installation
19
Temperature compensation technology
9
Copper free aluminum
20
Exclusive appearance design with patents
10
Superior optical design
21
High quality and brightness LED light source
11
More than twice the average life of metal halide and high pressure sodium
Datasheet
Electrical Specifications
Nominal Wattage
135W
Nominal Voltage
AC 100-240V, 50/60Hz
Maximum Current
AC 1.39A-120V, 0.69A-240V
Optimal Operating Temperature
- 40 ºC to 50 ºC
Operating Humidity
10% to 90%
Power Factor (PF)
>0.9
Driver Efficiency
>90%
Photometric Specifications
Correlated Color Temperature (CCT)
3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K
Lumen Output (3000-4500K)
11475 lm ( +/- 5% )
Lumen Output (5000-6500K)
12150 lm ( +/- 5% )
Color Rendering Index (CRI)
Ra≥75
Mechanical Specifications
IP Rating
IP65
Lifetime
50000 hours
Housing
Die-casting Aluminum
Heat Raditor
Anodized Aluminum
Lens
Toughened Glass
Fixture Dimension
884 x 326 x 109 mm / 34.8 x 12.8 x 4.3 inches
Fixture Weight
11.8 kg / 26 lbs
Aperture Diameter
Φ60 mm / Φ2.4 inches
Packing Informations
Packing Type
1 unit / ctn
Packing Dimension
940 x 375 x 155 mm / 37 x 14.8 x 6.1 inches
Packing Weight
12.8 kg / 28.2 lbs
[Warranty] 3 years Since the date of purchase.
[Warranty Terms] 1.Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, ZGSM will provide free maintenance service based on the proof-documents and invoice(copy) of failure product. 2.ZGSM will provide paid maintenance service by under coditions within warranty. (1).Failure or damage due to force majeure. (2).Failure or damage due to transport or unloading. (3).Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution. (4).Failure or damage due to demolition, repair, alteration without Manufacturer's authorization. 3.Please deliver the failure product by original packing for maintenance service, ZGSM will not responsible for any failure or damage in transportation if customer use non-original packing or improper packing. 4.ZGSM reserves the right for final explanation of aforesaid terms.
[Caution] ZGSM will not responsible for any other failure or damage by incorrectly usage.
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.
Company Information
Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
ZGSM Research

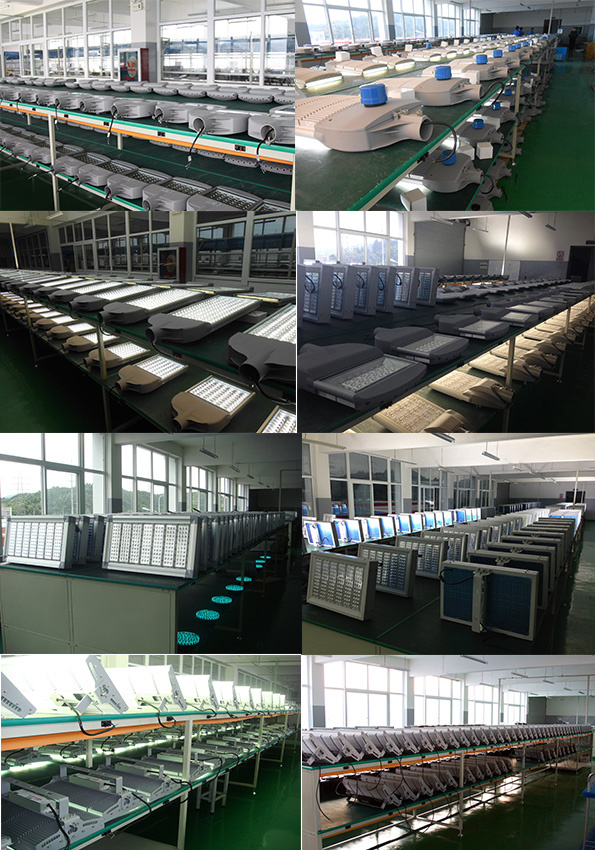

ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.
Customer and Partner Experience

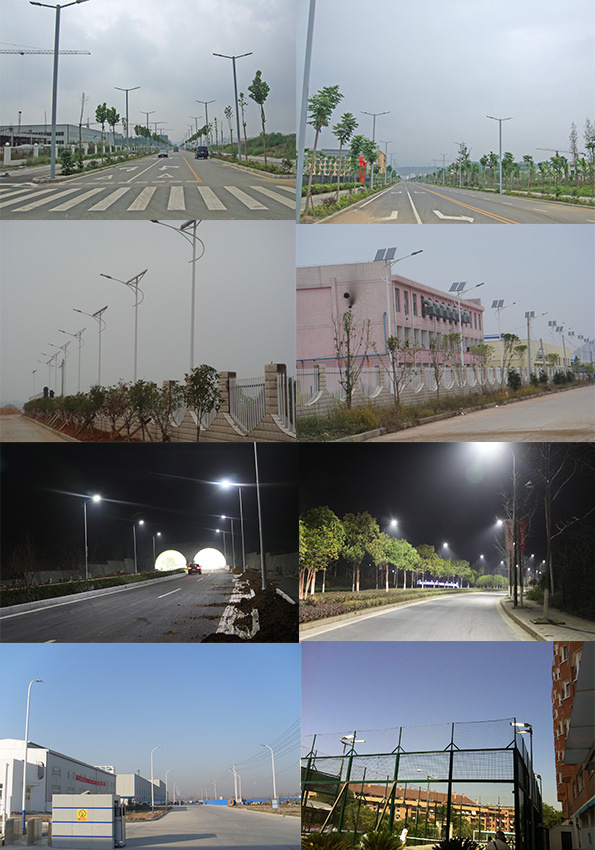

ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.
