Norminal Voltage:
AC 100-240V/277V, 50/60Hz
Maximum Current:
AC 0.41A-120V, 0.21A-240V, 0.18A-277V
Operating Temperature:
-40 to 50
Power Factor:
More Than 0.9
Driver Efficiency:
More Than 90%
Lumen Output:
4, 000 Lm (+/-5%)
CRI:
More Than 70
Heat Raditor:
Anodized Aluminum
Ik:
10
Lens:
Clear PC
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP66
Certification:
CB
Color Temperature:
4000k, 5000k, 5700k
Color:
Silver
Lifespan:
More Than 100, 000 Hours
Beam Angle:
60, 90, 110
Product Description

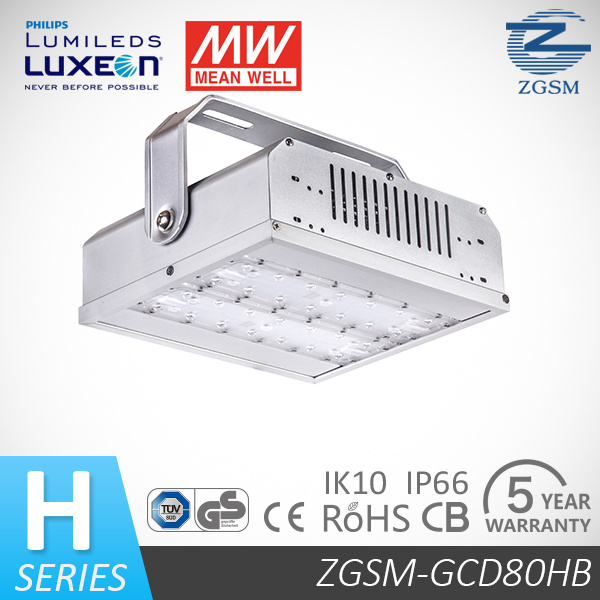

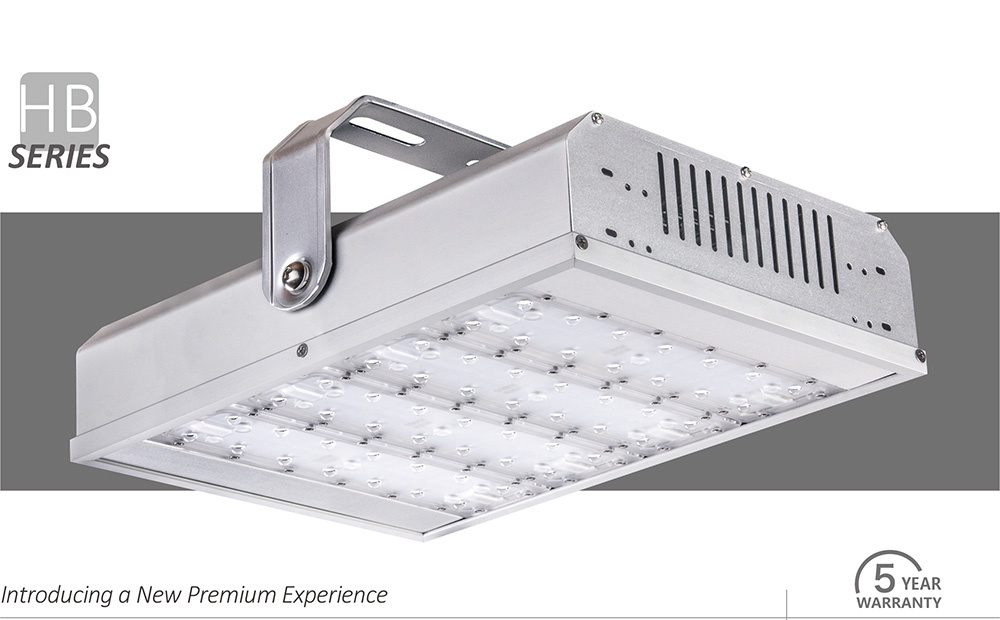

HB-Series LED High Bay Light with Favorable Price:
Major advantages:
a). High Reliable MEANWELL led driver; PHILIPS LUXEON® T leds.
b). Available for 60°, 90° and 110° beam angle.
c). Adjustable mounting bracket.
d). IK10&IP66.
e). SAA, CE, RoHS, CB, GS, UL certificated. f). 5 years Warranty. g).The price is much more competitive...
Specifications
Model
ZGSM-GCD40HB
LED Brand
Philips LUXEON® T
Driver Brand
Meanwell HLG series
Norminal Wattage
40W
LED Module Quantity
1 module
Input Voltage
100-240/277V/347V/480V AC/DC12/24V
Power Efficiency
>90%
Power Factor
>0.95
Lamp Rated Luminous Efficiency
>100lm/w
Lamp Rated Lumen output
4, 000 lm (Lumen tolerance +/- 5%)
Color Rendering Index
Ra>70
Color Temperature
4000 5000 or 5700K
Photometric Type
60,90,110 degrees
Optimal Operating Temperature
25ºC
Storage Temperatures
'-40ºC~+70ºC
Working Environment
Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
< 10%
Lumen Maintenance
> 60000 hours -L70, @25 ºC (77 ºF)
Body and Shell Materials
Anodized Aluminum
IP Rating
IP66 with test report
IK Rating
IK10 with test report
Certification
UL,DLC,SAA,CE,ROHS,GS,CB
Optional Function
1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty
5 years
Packing Details
Fixture Dimension
166 x270 x190mm
Fixture Weight
2.4kg / 5.3 lbs
Packing Dimension
285 x370 x200 mm
Packing Weight
3.1 kg /6.8 lbs

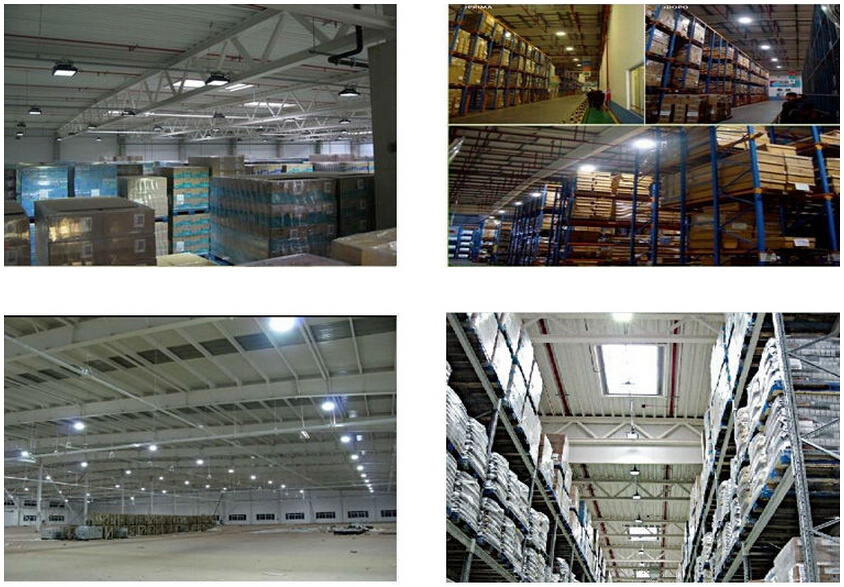

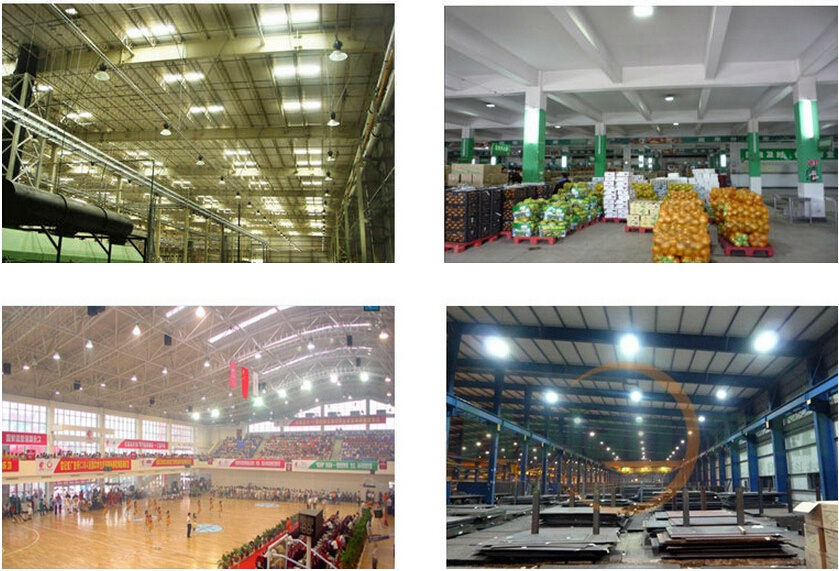

Application:
