North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:
Warehouse, Factory, Gas Station
Lens:
PC -Primary, Toughened Glass -Secondary
Operating Humidity:
10% to 90%
Nominal Voltage:
AC 100-240V /277V/347V/480V
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP66
Certification:
CB, Dlc
Color Temperature:
4000k, 5000k, 5700k
Color:
Natural White, Warm White, Cool White
Power:
40W
Lifespan:
100, 000
Beam Angle:
60deg, 90deg, and 110deg.
Product Description

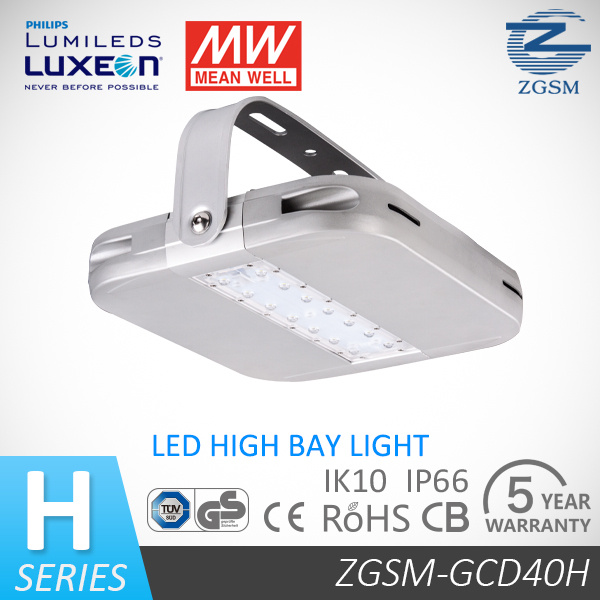

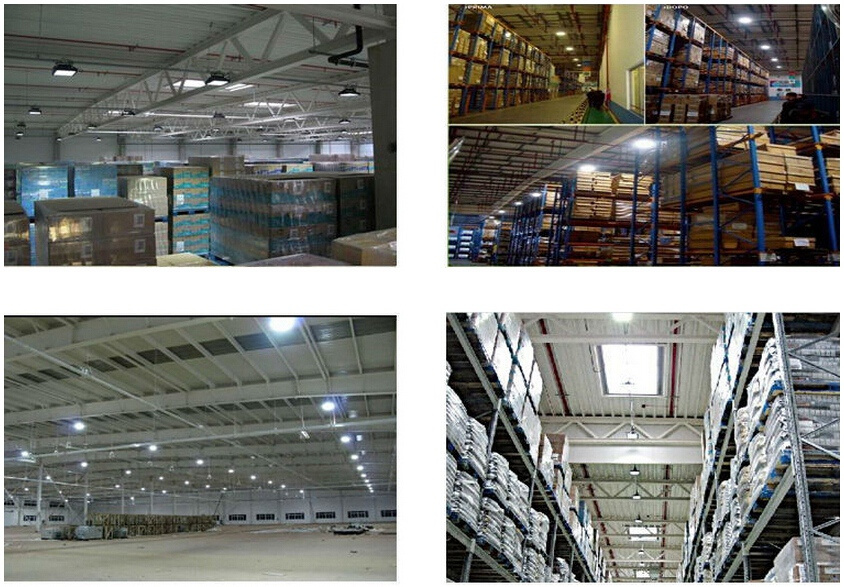

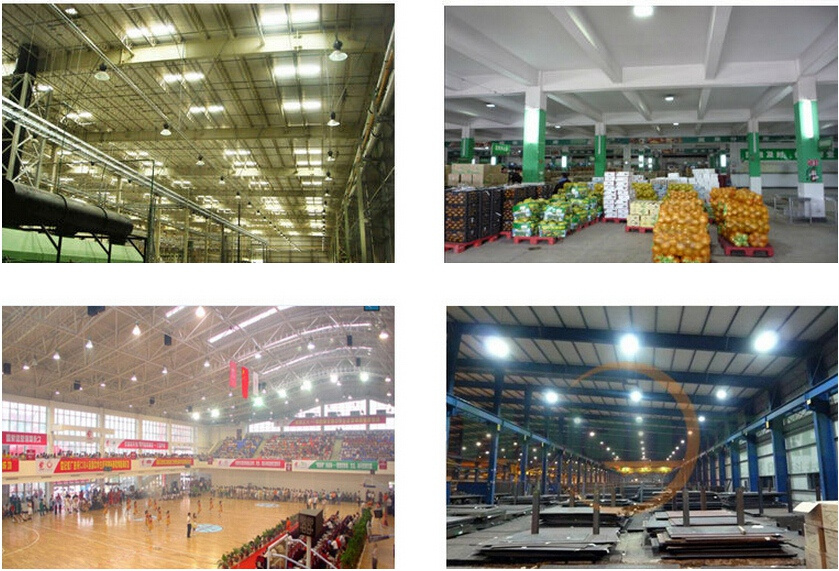

LED High Bay Light with CE/RoHS for Workshop Major advantages of our H Series high bay light: 1. PHILIPS LUXEON® T luminous source with LM-80 report. 2. High Reliable MEANWELL® HLG driver with 5 Years Warranty. 3. Over then 100,000 hours operation life. 4. Available for 60°, 90° and 110° beam angle. 5. IK10&IP66. 6. Adjustable mounting bracket. 7. UL, DLC, RoHS, CE, GS, CB, SAA certificated. 8. Patent product with 5 patent certificates. 9. 5 years Warranty 10. Wide application range, can be applied as industrial Light,canopy light, flood Light, stadium lights,tunnel light,warehouse light,gas station light and so on.
Specifications
Model
ZGSM-GCD40H
LED Brand
Philips LUXEON® T
Driver Brand
Meanwell HLG series
Norminal Wattage
40W
LED Module Quantity
1 module
Input Voltage
AC 100-240V /277V/347V/480V/DC12/24V
Power Efficiency
>90%
Power Factor
>0.95
Lamp Rated Luminous Efficiency
>100lm/w
Lamp Rated Lumen output
4000 lm (Lumen tolerance +/- 5%)
Color Rendering Index
Ra>70
Color Temperature
4000 5000 or 5700K
Photometric Type
60,90,110 degrees
Optimal Operating Temperature
25ºC
Storage Temperatures
'-40ºC~+70ºC
Working Environment
Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
< 10%
Lumen Maintenance
> 60000 hours -L70, @25 ºC (77 ºF)
Body and Shell Materials
Anodized Aluminum
IP Rating
IP66 with test report
IK Rating
IK10 with test report
Certification
CE,ROHS,GS,CB,UL,cUL,DLC,LM-79, SAA
Optional Function
1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty
5 years
Packing Details
Fixture Dimension
293 x340 x156 mm
Fixture Weight
3.1 kg / 6.8 lbs
Packing Dimension
345 x365 x160 mm
Packing Weight
3.9 kg /8.6 lbs
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.
Company Information
Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
ZGSM Research
ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.
Customer and Partner Experience
ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.
Our Values
Through innovative, reliable products and services; Talented people; A responsible approach to business and global citizenship; And collaboration with our partners and customers, ZGSM is taking the world in a premium lighting experience.
