Lumen Output:
22, 000lm(+/-5%)
Nominal Voltage:
AC 100-240V /277V/347V/480V
Luminous Effecency:
More Than 110lm/W
Fixture Size:
585 X340 X156 Mm
Packing Size:
635 X365 X160 Mm
Lamp Body Material:
Aluminum
IP Rating:
IP66
Certification:
CE, EMC, Energy Star, FCC, GS, RoHS, SAA, Saso, UL
Color Temperature:
4000k, 5000k, 5700k
Color:
Natural White, Warm White, Cool White
Lifespan:
100, 000h
Beam Angle:
60 Degree, 90 Degree & 110 Degree
Product Description
Major advantages of our H Series high bay light:
1. PHILIPS LUXEON® TX luminous source with LM-80 report. 2. High Reliable MEANWELL® HLG driver with 5 Years Warranty. 3. Over then 100, 000 hours operation life. 4. Available for 60°, 90° and 110° beam angle. 5. IK10&IP66. 6. Adjustable mounting bracket. 7. UL, DLC, RoHS, CE, GS, CB certificated. 8. Patent product with 5 patent certificates. 9.5 years Warranty 10. The price is much more competitive.
Specifications
Model
ZGSM-GCD200H
LED Brand
Philips LUXEON® T
Driver Brand
Meanwell HLG series
Norminal Wattage
200W
LED Module Quantity
5 modules
Input Voltage
100-240/277VAC
Power Efficiency
>90%
Power Factor
>0.95
Lamp Rated Luminous Efficiency
>110lm/w
Lamp Rated Lumen output
22, 000 lm (Lumen tolerance +/- 5%)
Color Rendering Index
Ra>70
Color Temperature
4000 5000 or 5700K
Photometric Type
60, 90, 110 degrees
Optimal Operating Temperature
25ºC
Storage Temperatures
'-40ºC~+70ºC
Working Environment
Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
< 10%
Lumen Maintenance
> 100000 hours -L70, @25 ºC (77 ºF)
Body and Shell Materials
Anodized Aluminum
IP Rating
IP66 with test report
IK Rating
IK10 with test report
Certification
CE, ROHS, GS, CB, UL, cUL, DLC, SAA, LM-79
Optional Function
1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty
5 years
Packing Details
Fixture Dimension
585 x340 x156 mm
Fixture Weight
7.0 kg /15.4 lbs
Packing Dimension
635 x365 x160 mm
Packing Weight
8.1 kg /17.9 lbs

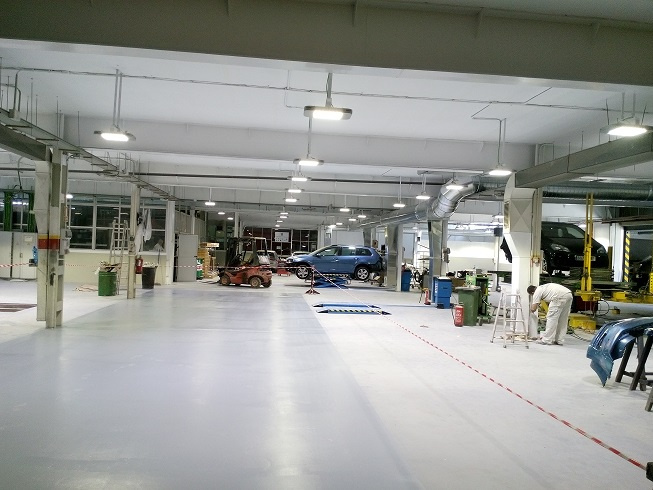

Project in one garage of Spain:
ZGSM-GCD160H/110degrees/5000K 58pcs.
