Norminal Voltage:
AC 100-240V/277V, 50/60Hz
Maximum Current:
AC 1.65A-120V, 0.82A-240V, 0.71A-277V
Operating Temperature:
-40 to 50
Power Factor:
More Than 0.9
Driver Efficiency:
More Than 90%
Lumen Output:
16, 000 Lm (+/-5%)
CRI:
More Than 70
Ik:
10
Lens:
Clear PC
Heat Raditor:
Anodized Aluminum
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP66
Certification:
CB, Dlc
Color Temperature:
4000k, 5000k, 5700k
Color:
Silver
Power:
160W
Usage:
Factory, Gas Station
Lifespan:
More Than100, 000 Hours
Beam Angle:
60, 90, 110
Product Description

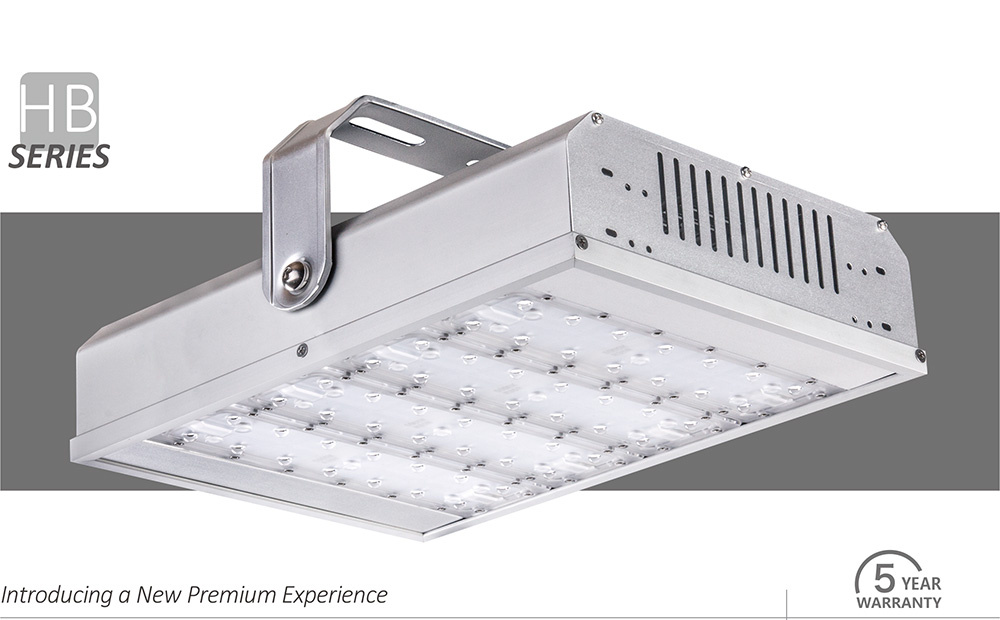

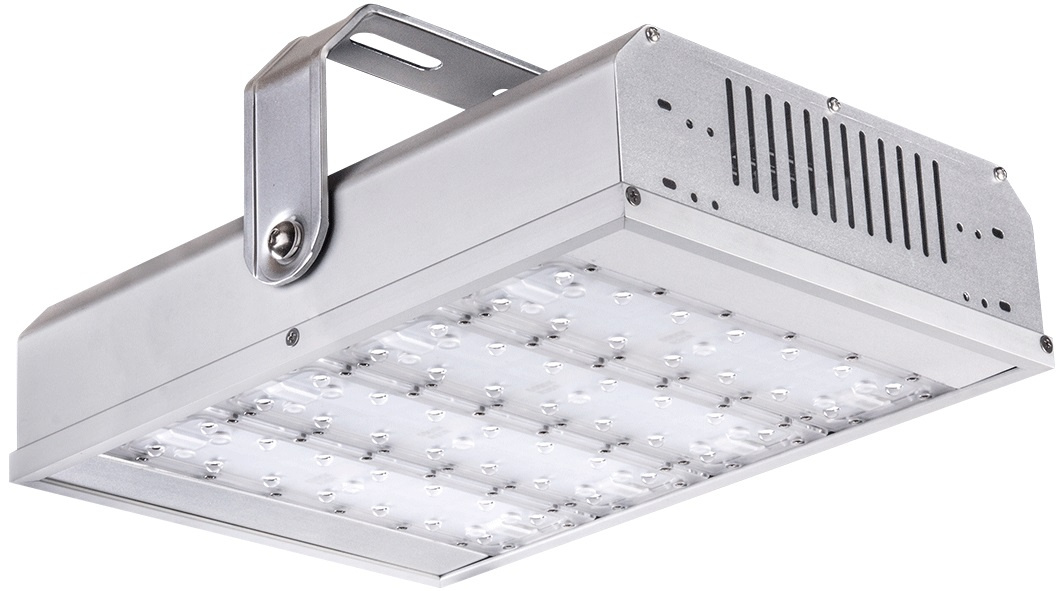

160W 347V/480V Waterproof and Shockproof LED High Bay Light
Major advantages of our H Series high bay light: 1. PHILIPS LUXEON® T luminous source with LM-80 report. 2. High Reliable MEANWELL® HLG driver with 5 Years Warranty. 3. Over then 100,000 hours operation life. 4. Available for 60°, 90° and 110° beam angle. 5. IK10&IP66. 6. Adjustable mounting bracket. 7. UL, DLC, RoHS, CE, GS, CB, SAA certificated. 8. Patent product with 5 patent certificates. 9. 5 years Warranty 10. Wide application range, can be applied as industrial Light,canopy light, flood Light, stadium lights,tunnel light,warehouse light,gas station light and so on.
Specifications
Model
ZGSM-GCD160HB
LED Brand
Philips LUXEON® T
Driver Brand
Meanwell HLG series
Norminal Wattage
160W
LED Module Quantity
4 modules
Input Voltage
100-240/277V/347V/480V AC
Power Efficiency
>90%
Power Factor
>0.95
Lamp Rated Luminous Efficiency
>100lm/w
Lamp Rated Lumen output
16, 000 lm (Lumen tolerance +/- 5%)
Color Rendering Index
Ra>70
Color Temperature
4000 5000 or 5700K
Photometric Type
60,90,110 degrees
Optimal Operating Temperature
25ºC
Storage Temperatures
'-40ºC~+70ºC
Working Environment
Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion
< 10%
Lumen Maintenance
> 60000 hours -L70, @25 ºC (77 ºF)
Body and Shell Materials
Anodized Aluminum
IP Rating
IP66 with test report
IK Rating
IK10 with test report
Certification
UL,DLC,SAA,CE,ROHS,GS,CB
Optional Function
1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty
5 years
Packing Details
Fixture Dimension
385 x270x1300 mm
Fixture Weight
5.4 kg /11.9 lbs
Packing Dimension
505 x370x200mm
Packing Weight
6.3 kg /13.9lbs
