North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Guarantee:
3 Years
Heat Radiator:
Anodized Aluminum
Nominal Wattage:
135W
Driver Efficiency:
>90%
Operating Humidity:
10% to 90%
Lifetime:
50,000h
Lens:
PC
Power Factor(Pf):
> 0.95
Optimal Operating Temperature:
-40 C to +50 C
Operating Voltage:
100-240V AC, 50/60Hz or 24V DC
IP Rating:
IP65
LED Chips Brand:
Bridgelux
Lamp Body Material:
Aluminum
Power Supply:
AC
Certification:
CE, EMC, LVD, RoHS, SAA, Saso
Color Temperature:
3000-3500k, 4000-4500k, 5000-5500k, 6000-6500k
Application:
Square, Highway, Garden, Municipal Road
Product Description

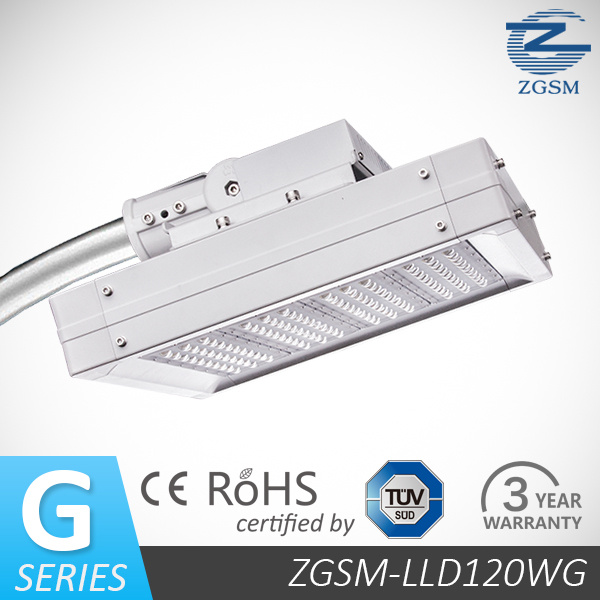

Major advantages of our G Series street light: 1. Wide application range, can be applied as street Light, Flood Light, stadium lights 2. CE and RoHS certified by TUV 3. Adopted module design, convenient to replacement and maintenance 4. Uses the latest Bridgelux chips with LM-80 certification and test report, up to 125lm/w; 5. Uses the best MEAN WELL high-end driver, stability ensured; 6. 100% 3 years warranty providing by ZGSM; 7. Have 3 international patents. 8. Exact delivery date and after-sell service and support. 9. IP65
Datasheet
Electrical Specifications
Nominal Wattage
135W
Nominal Voltage
AC 100-240V, 50/60Hz
Maximum Current
AC 1.39A-120V, 0.69A-240V
Optimal Operating Temperature
- 40 ºC to 50 ºC
Operating Humidity
10% to 90%
Power Factor (PF)
>0.9
Driver Efficiency
>90%
Photometric Specifications
Correlated Color Temperature (CCT)
3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K
Lumen Output (3000-4500K)
12150 lm ( +/- 5% )
Lumen Output (5000-6500K)
12825 lm ( +/- 5% )
Color Rendering Index (CRI)
Ra≥75
Mechanical Specifications
IP Rating
IP65
Lifetime
50000 hours
Housing
Anodized Aluminum
Heat Raditor
Anodized Aluminum
Lens
PC
Fixture Dimension
445 x 395 x 200 mm / 17.5 x 15.6 x 7.9 inches
Fixture Weight
11.7 kg / 25.8 lbs
Aperture Diameter
Φ60 mm / Φ2.4 inches
Packing Informations
Packing Type
1 unit / ctn
Packing Dimension
495 x 445 x 220 mm / 19.5 x 17.5 x 8.7 inches
Packing Weight
14.5 kg / 32 lbs
Features
1
No UV
12
Significant energy savings
2
Long life
13
Wide input: 100 - 240V AC
3
Waterproof
14
Stable and efficient LED driver
4
Instant on/off
15
Significantly less generated heat
5
Mercury free
16
Resistant to shock and vibration
6
Maintenance free
17
Optimal heat sinking performance
7
Improved visibility
18
LED's maintain flux up to 100 lm/W
8
Ease of installation
19
Temperature compensation technology
9
Copper free aluminum
20
Exclusive appearance design with patents
10
Superior optical design
21
High quality and brightness LED light source
11
More than twice the average life of metal halide and high pressure sodium
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.
Company Information
Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
ZGSM Research
ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.
Customer and Partner Experience
ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.
Our Values
Through innovative, reliable products and services; Talented people; A responsible approach to business and global citizenship; And collaboration with our partners and customers, ZGSM is taking the world in a premium lighting experience.
