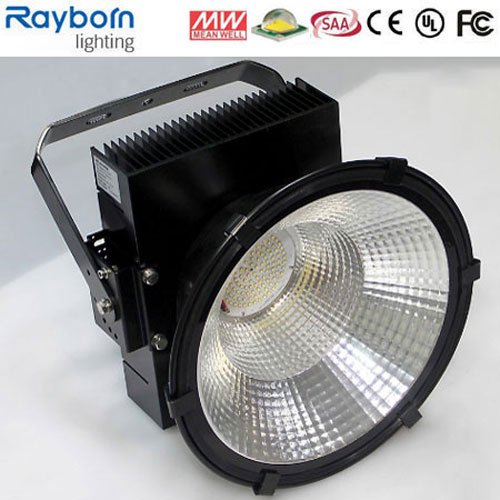

Wholesale Warehouse Light 100W 120W Waterproof LED High Bay Light

Wholesale Warehouse Light 100W 120W Waterproof LED High bay Light


Specifications of 100W high power industrial LED high bay lights :

100W LED Industrial Light Main Technical Parameters
Item No.:		RB-HB-100WB
Input Voltage:		AC 100-277V
Freqency Range:		50Hz~60Hz
LED Chip:		CREE-XTE /                Samsung LH351B
Power Driver:		Meanwell HLG Driver
Power Factor:		>0.96
Power Efficiency:		>91%
LED Power		100W
LED QTY:		75pcs XTE
LED Working Voltage:		DC 42~48V
System Consumption:		104W
LED Luminous Flux	Warm White	9600LM
	Pure White	11000LM
	Cool White	11200LM
Viewing Angle:		25/60/90 degree
Center Luminance	Height 5M	436LUX
	Height 10M	110LUX
	Height 15M	49LUX
Illuminance Area	Height 5M	Dia.587CM  points visible
	Height 10M	Dia.1173CM points visible
	Height 15M	Dia.1758 CM points visible
Illuminance Uniformity:		>0.6
Color Temperature	Warm White	3000K~3500K
	Pure White	5000K~5700K
	Cool White	6000K~6500K
Color Rendering Index		Ra>80
Light Distribution:		LED points visible
LED Junction Temperature:		≤115ºC
Working Temperature:		-40ºC~50ºC
IP Grade:		IP65
Working Life-span:		50000 H
Power Line:		1.0 mthree line
Connect Wire	Brown	L
	Blue	N
	Yellow / Green	G
Certificate		CE/SAA/UL/ROHS
Net Weight:		6.8KG

Primary competitive advantages of our new design LED high bay lights:

1.Flexible positions can be adjusted within 180°.
2.Adopted copper heat pipe, can conduct heat rapidly from the chips to radiator,greatly lower down the temperature of light source,extending life span.
3.Full series led high bay light are adopted Taiwan MeanWell drivers. Cree,Samsung,LG led chips are available.
4.Waterproof IP65 design,elimination mist,avoid condensation,widely used for indoor and outdoor environment.
5.Reflector 25° 60° 90° beam angles are available,meet the requirements of professional light distribution and can be use at different place.
6. 100W to 500W can be chosen, 5 years warranty.


Applications of High bay led lighting:

1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum and stadium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.


Installation information of 100W LED High Bay Lights:

1.Check all the parts and accessories of LED High bay light;
2.Must cut off the power supply before installation;
3.Make sure the light is fixed tightly to the surface of place for installation ;
4.Connect the power line of light with power supply, then switch on the power.
5.When the highbay light is working, it must be kept vertical downward.


Ageing Test of High bay led lighting:

All our LED high bay lights will be tested before shipping,so that we can ensure the quality and light performance.Because we must be responsible to our customers.


We have CE,RoHS,SAA,UL certifications and so on.So you can rest assured to use our products.


Packaging of 100W LED High Bay Lights:

1).Label on backside of each high bay lights and your required label is available.
2).One piece led high bay Light per carton.
3).This is our regular packing of the led high bay light,if you need,we can also custom color packing  and put your logo on it.

Shipping of LED high bay light:By sea / air / express (DHL,FedEX,UPS,TNT etc.)
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.


Rayborn Good Service:

1.Your inquirey related to our products or price will be replied within 24 hours.
2.All your inquireies will be well explained by our experienced staff.
3.OEM&ODM,also provide customized service.
4.Distributor ship is available for your unique design and some our current models.
5.We will keep secret for customer sale area,design ideas and all other private information.


Company Profile :

Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.



FAQ:


Q1: What is the warranty of your high power led high bay lights?

A:  We offer five years guarantee for our high power LED high bay lamps,and we will offer you based on your requirement.


Q2: What color temperature we can choose?

A:  We offer LED high bay lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)

Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K


Q3: Do your led high bay lights can be used in our country?

A: Yes, Our LED high bay light has wide input voltage AC100-240V, and it can be customized too.


Q4: How do you help me to save freight cost?

A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.


Q5: Do you have any MOQ limited?

A: We don't have MOQ,even only one piece LED high bay light you can buy.

Q6: What's the lead time?

A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.

Q7:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.

Q8: Do you accept Paypal or Western Union for sample order?

A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.


Pls don't feel hesitate to contact us if our products hit your requirements.Pls give me one enquiry,I will give you ten surprises.Believe me,I am sincere Charmaine.
